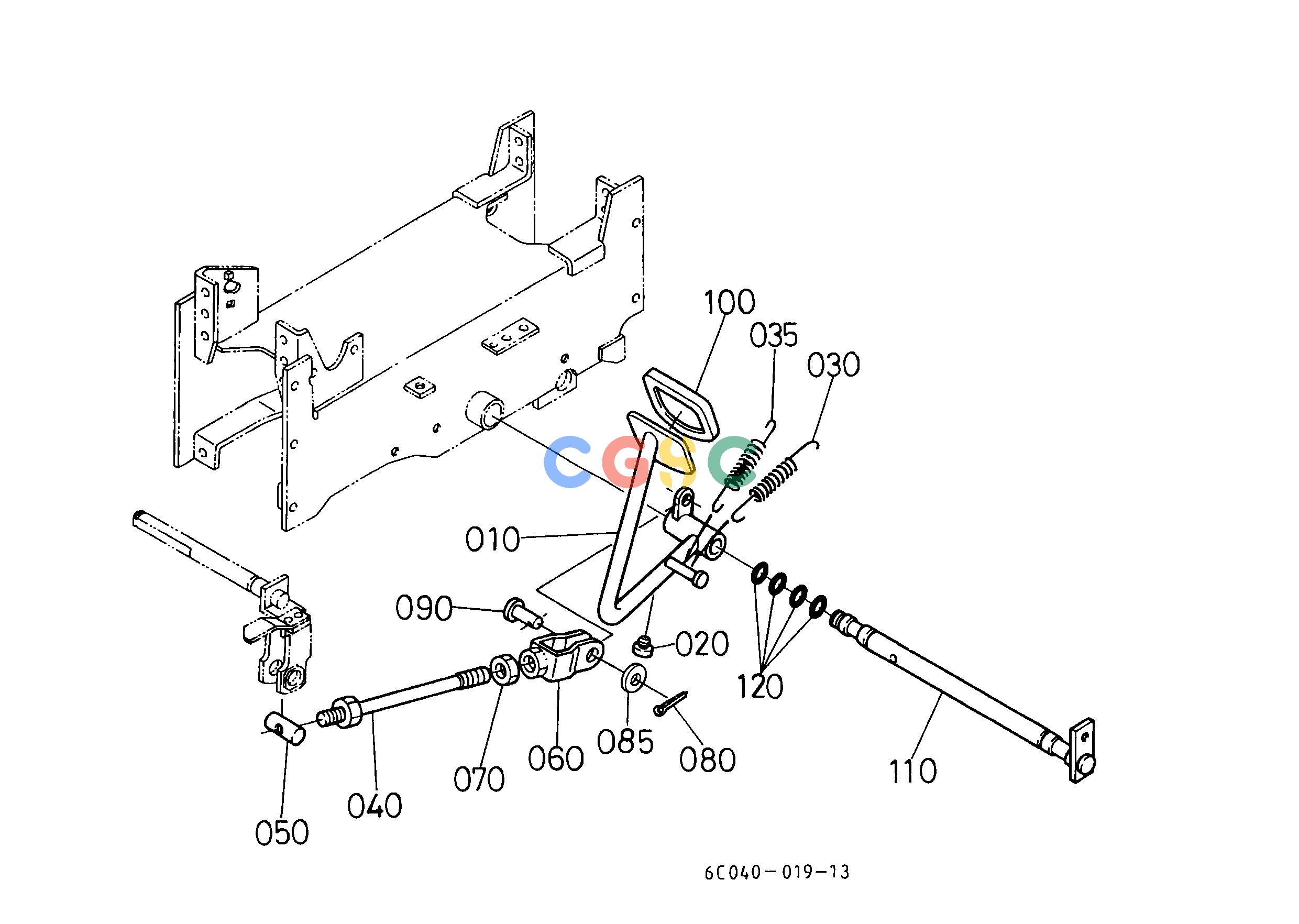

久保田零件查询C30100 CLUTCH PEDAL CLUTCHEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
387 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04042135
|
[1] |
PEDAL,CLUTCH
|
3.6960(lbs); 1.680
|
| 020. |
6C04042341
|
[1] |
CUSHION
|
0.0000(lbs); 0.000
|
| 020. |
6C04042342
|
[1] |
CUSHION
|
0.0110(lbs); 0.005
|
| 030. |
6C04042150
|
[1] |
SPRING
|
0.3454(lbs); 0.157
|
| 035. |
6C04042160
|
[1] |
SPRING
|
0.1100(lbs); 0.050
|
| 040. |
6C04042113
|
[1] |
ROD,CLUTCH
|
0.5610(lbs); 0.255
|
| 050. |
6C04042142
|
[1] |
PIN,CLUTCH ROD
|
0.0748(lbs); 0.034
|
| 060. |
6C04042120
|
[1] |
U JOINT
|
0.2596(lbs); 0.118
|
| 070. |
3772028990
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 080. |
5230034130
|
[1] |
PIN,SNAP
|
0.0088(lbs); 0.004
|
| 080. |
0551150318
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 085. |
0401350100
|
[1] |
WASHER,PLAIN
|
0.0088(lbs); 0.004
|
| 090. |
0512251025
|
[1] |
PIN,JOINT
|
0.0374(lbs); 0.017
|
| 100. |
T205044120
|
[1] |
COVER,PEDAL
|
0.1540(lbs); 0.070
|
| 110. |
6C04042310
|
[1] |
SHAFT,PEDAL
|
3.6960(lbs); 1.680
|
| 120. |
0481600210
|
[4] |
O RING
|
0.0088(lbs); 0.004
|
