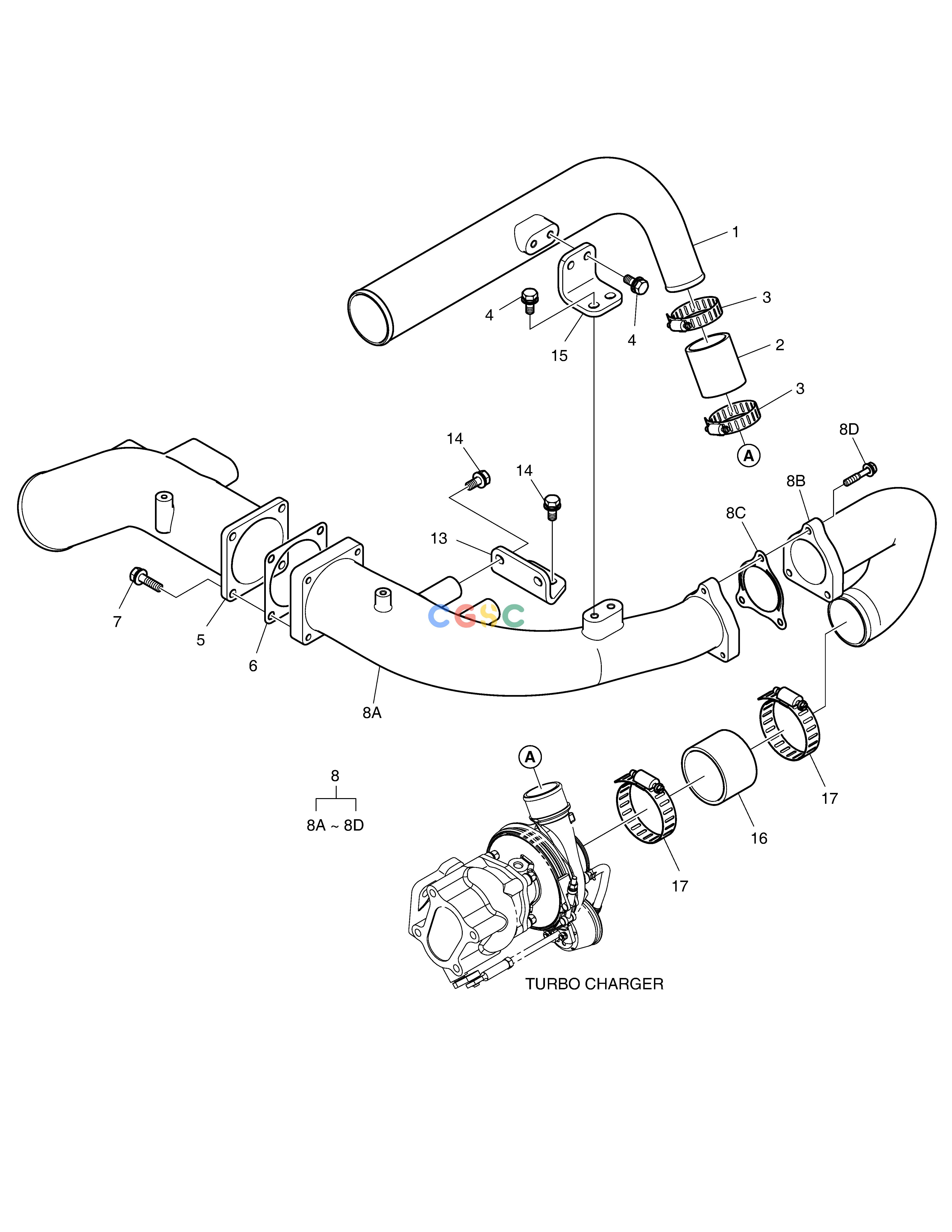

斗山零件查询INTAKE STAKE DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
853 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
420209-00013
|
[1] |
|
|
| 13. |
110449-00008
|
[1] |
|
|
| 14. |
06.01923-3215
|
[4] |
BOLT ASS`Y M10X25
|
|
| 15. |
110449-00015
|
[1] |
|
|
| 16. |
420108-00095
|
[1] |
|
|
| 17. |
06.67020-0112
|
[2] |
CLAMP;HOSE
|
|
| 2. |
65.96301-0263
|
[1] |
HOSE
|
|
| 3. |
06.67020-0109
|
[2] |
CLAMP;HOSE
|
|
| 4. |
06.01923-3215
|
[4] |
BOLT ASS`Y M10X25
|
|
| 5. |
420202-00095
|
[1] |
|
|
| 6. |
65.09904-0009
|
[1] |
GASKET;AIR PIPE
|
|
| 7. |
06.01923-3219
|
[4] |
BOLT ASS'Y M10X40
|
|
| 8. |
420209-00166A
|
[1] |
|
|
| 8A. |
420209-00213
|
[1] |
|
|
| 8B. |
420209-00214
|
[1] |
|
|
| 8C. |
400618-00013
|
[1] |
|
|
| 8D. |
06.01923-3120
|
[3] |
. BOLT ASS`Y M8X45
|
|
