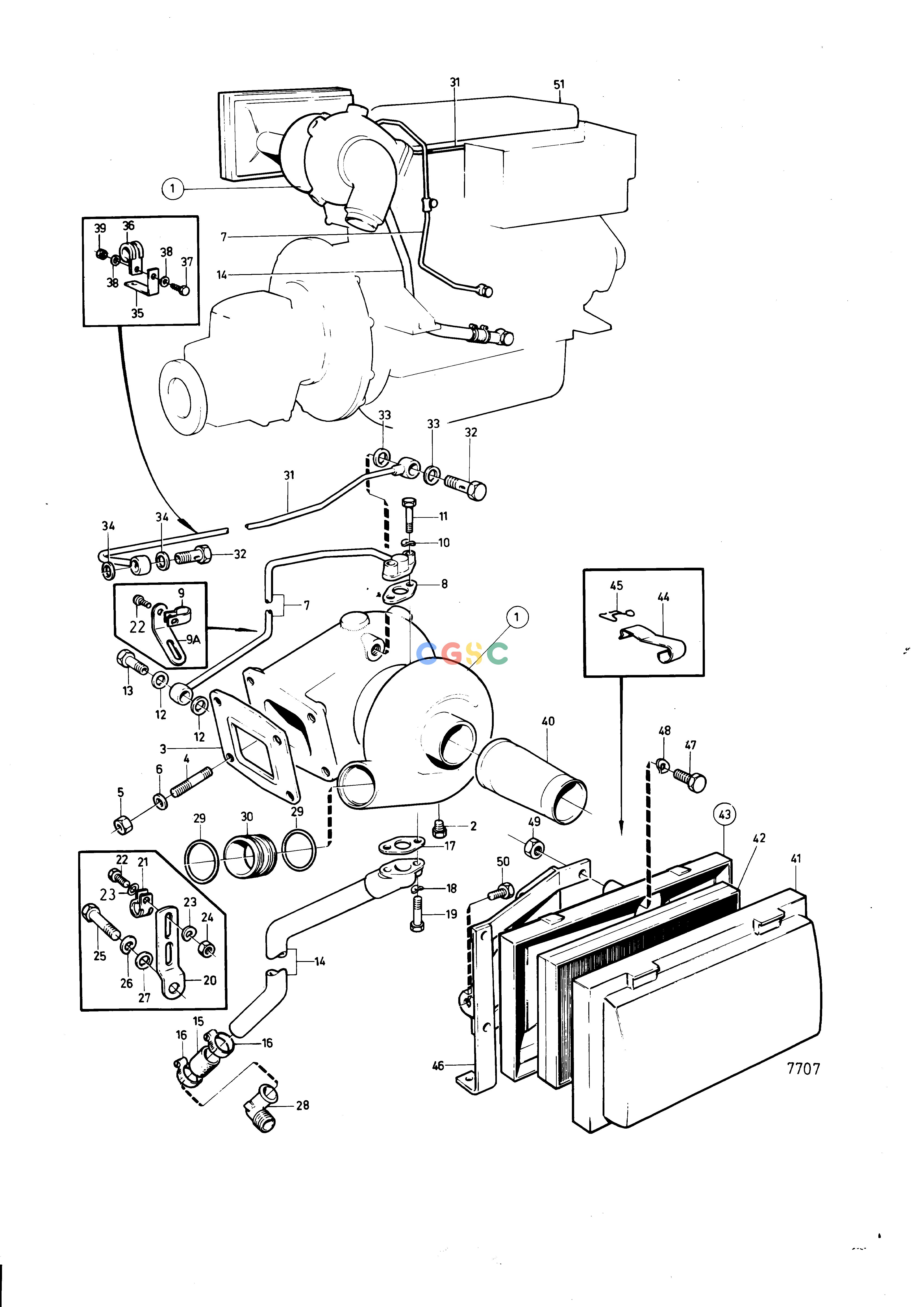

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Cooling SystemTurbo and Air Filter with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846037
|
[1] |
Turbocharger
|
|
| 1. |
3802020
|
[1] |
Turbocharger
|
|
| 2. |
192134
|
[1] |
Plug
|
|
| 3. |
843009
|
[1] |
Gasket
|
|
| 4. |
953063
|
[4] |
Stud
|
Included in turbo.
|
| 5. |
940183
|
[4] |
Hexagon nut
|
|
| 6. |
955895
|
[4] |
Washer
|
|
| 7. |
846038
|
[1] |
Oil pressure pipe
|
|
| 8. |
842943
|
[1] |
Gasket
|
|
| 9. |
952625
|
[1] |
Clamp
|
|
| 9A. |
414692
|
[1] |
Bracket
|
|
| 10. |
941907
|
[2] |
Spring washer
|
|
| 11. |
940142
|
[2] |
Hexagon screw
|
|
| 12. |
18671
|
[2] |
Gasket
|
|
| 13. |
25167
|
[1] |
Hollow screw
|
|
| 14. |
846039
|
[1] |
Oil return pipe
|
|
| 15. |
466328
|
[1] |
Hose
|
|
| 16. |
994559
|
[2] |
Hose clamp
|
|
| 17. |
842986
|
[1] |
Gasket
|
|
| 18. |
941907
|
[2] |
Spring washer
|
|
| 19. |
955297
|
[2] |
Hexagon screw
|
|
| 20. |
1130611
|
[1] |
Bracket
|
(948333)
|
| 21. |
952632
|
[1] |
Clamp
|
|
| 22. |
955269
|
[2] |
Hexagon screw
|
|
| 23. |
955892
|
[2] |
Washer
|
|
| 24. |
946035
|
[2] |
Lock nut
|
|
| 25. |
955270
|
[2] |
Hexagon screw
|
|
| 26. |
941912
|
[1] |
Spring washer
|
|
| 27. |
843122
|
[1] |
Spacer sleeve
|
|
| 28. |
843879
|
[1] |
Elbow nipple
|
|
| 29. |
948610
|
[2] |
O-ring
|
|
| 30. |
842965
|
[1] |
Pipe
|
|
| 31. |
846776
|
[1] |
Tube
|
|
| 32. |
846216
|
[2] |
Hollow screw
|
|
| 33. |
907132
|
[2] |
Gasket
|
|
| 34. |
947282
|
[2] |
Gasket
|
|
| 35. |
846780
|
[2] |
Bracket
|
|
| 36. |
952624
|
[2] |
Clamp
|
|
| 37. |
955271
|
[1] |
Hexagon screw
|
|
| 38. |
955894
|
[2] |
Washer
|
|
| 39. |
955781
|
[1] |
Hexagon nut
|
|
| 40. |
842639
|
[1] |
Hose
|
|
| 41. |
842615
|
[1] |
Filter housing
|
|
| 42. |
463505
|
[1] |
Air filter insert
|
|
| 43. |
842680
|
[1] |
Filter housing
|
|
| 44. |
463908
|
[4] |
Clamp
|
|
| 45. |
673792
|
[4] |
Lock
|
|
| 46. |
844593
|
[1] |
Bracket
|
|
| 47. |
959224
|
[2] |
Hex. socket screw
|
L=45mm
|
| 47. |
959227
|
[2] |
Hex. socket screw
|
L=50mm
|
| 48. |
941907
|
[4] |
Spring washer
|
|
| 49. |
946036
|
[4] |
Lock nut
|
|
| 50. |
955317
|
[2] |
Hexagon screw
|
L=25mm
|
| 51. |
7744050_027
|
|
induction- and exhaust manifold
|
|
| 51. |
|
|
|
|
