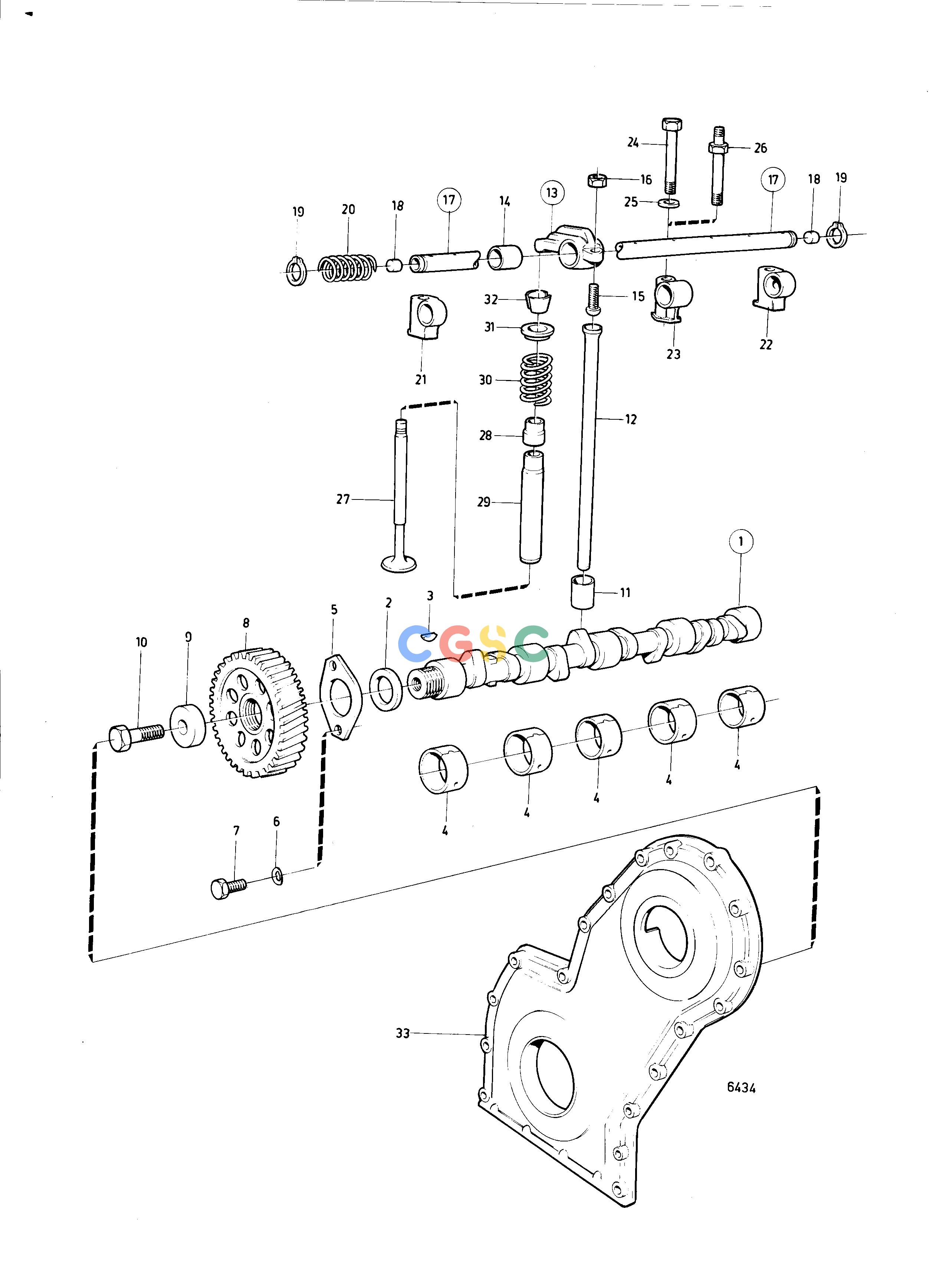

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30EngineCamshaft and Valve MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
289 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1544115
|
[1] |
Camshaft
|
|
| 2. |
1542221
|
[1] |
Spacer washer
|
|
| 3. |
910116
|
[1] |
Woodruff key
|
|
| 4. |
1542067
|
[5] |
Camshaft bushing
|
|
| 5. |
838992
|
[1] |
Thrust washer
|
(1542222)
|
| 6. |
941907
|
[2] |
Spring washer
|
|
| 7. |
955295
|
[2] |
Hexagon screw
|
|
| 8. |
1542034
|
[1] |
Gear
|
|
| 9. |
1542223
|
[1] |
Washer
|
|
| 10. |
955344
|
[1] |
Hexagon screw
|
|
| 11. |
1542208
|
[8] |
Valve tappet
|
|
| 12. |
1545239
|
[8] |
Push rod
|
|
| 13. |
418301
|
[4] |
Rocker arm
|
No. 1-3-5-7
|
| 13. |
418298
|
[4] |
Rocker arm
|
No. 2-4-6-8
|
| 14. |
418297
|
[8] |
Bushing
|
|
| 15. |
418286
|
[8] |
Ball stud
|
|
| 16. |
921781
|
[8] |
Hexagon nut
|
|
| 17. |
1544113
|
[1] |
Rocker arm shaft
|
|
| 18. |
955083
|
[2] |
Cap plug
|
|
| 19. |
914456
|
[2] |
Snap ring
|
|
| 20. |
411139
|
[3] |
Compression spring
|
|
| 21. |
1542041
|
[1] |
Bearing bracket
|
|
| 22. |
1542042
|
[1] |
Bearing bracket
|
|
| 23. |
1542043
|
[4] |
Bearing bracket
|
|
| 24. |
955304
|
[4] |
Hexagon screw
|
|
| 25. |
955894
|
[4] |
Washer
|
|
| 26. |
1542283
|
[2] |
Stud
|
|
| 27. |
1542472
|
[4] |
Inlet valve
|
|
| 27. |
1542389
|
[4] |
Exhaust valve
|
|
| 28. |
1306630
|
[4] |
Valve stem seal
|
(419702)
|
| 29. |
419653
|
[8] |
Valve guide
|
|
| 30. |
1545198
|
[8] |
Valve spring
|
|
| 31. |
460181
|
[8] |
Washer
|
|
| 32. |
419643
|
[16] |
Valve collet
|
|
| 33. |
7744050_004
|
|
timing gear casing and gears
|
|
| 33. |
|
|
|
|
