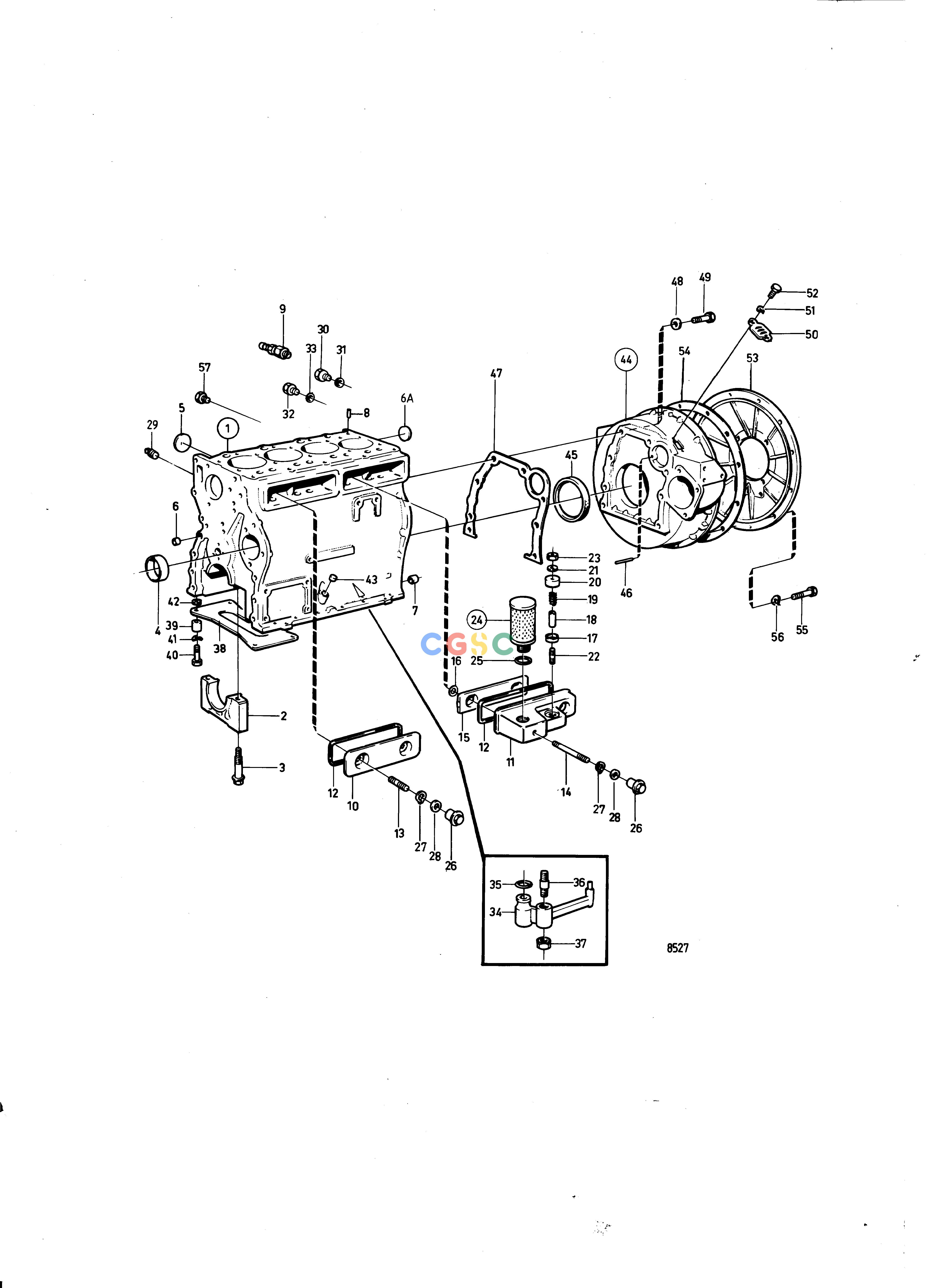

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30EngineCylinder Block and Flywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
995 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1544100
|
[1] |
Cylinder block
|
|
| 1. |
858810
|
[1] |
Cylinder block
|
|
| 2. |
|
|
|
|
| 3. |
1542416
|
[10] |
Flange screw
|
|
| 4. |
1542067
|
[5] |
Camshaft bushing
|
|
| 5. |
463905
|
[2] |
Expansion plug
|
|
| 6. |
955083
|
[4] |
Cap plug
|
|
| 6A. |
1542263
|
[1] |
Expansion plug
|
|
| 7. |
415311
|
[3] |
Guide sleeve
|
|
| 8. |
946402
|
[2] |
Grooved pin
|
|
| 9. |
949918
|
[1] |
Shut-off cock
|
|
| 10. |
1542050
|
[1] |
Inspection lid
|
|
| 11. |
842995
|
[1] |
Housing
|
|
| 12. |
1542052
|
[2] |
Seal
|
|
| 13. |
924075
|
[3] |
Stud
|
L=35mm
|
| 14. |
17378
|
[1] |
Stud
|
L=170mm
|
| 15. |
843882
|
[1] |
Splash plate
|
|
| 16. |
844051
|
[1] |
Spring washer
|
|
| 17. |
842972
|
[1] |
Valve disc
|
|
| 18. |
842974
|
[1] |
Spacer sleeve
|
|
| 19. |
843905
|
[1] |
Spring
|
|
| 20. |
842975
|
[1] |
Protecting casing
|
|
| 21. |
421158
|
[1] |
Sealing ring
|
|
| 22. |
924058
|
[1] |
Stud
|
|
| 23. |
963105
|
[1] |
Lock nut
|
|
| 24. |
875850
|
[1] |
Filter
|
Repl by 876069
|
| 24. |
876069
|
[1] |
Filter
|
|
| 25. |
843449
|
[1] |
Gasket
|
|
| 26. |
1542286
|
[4] |
Cap nut
|
|
| 27. |
914449
|
[4] |
Snap ring
|
|
| 28. |
469846
|
[4] |
Sealing ring
|
(424342)
|
| 29. |
952077
|
[2] |
Plug
|
|
| 30. |
960630
|
[1] |
Plug
|
MD30A
|
| 31. |
18671
|
[1] |
Gasket
|
MD30A
|
| 32. |
960634
|
[1] |
Plug
|
MD30A
|
| 33. |
947627
|
[1] |
Gasket
|
MD30A
|
| 34. |
1542320
|
[4] |
Oil jet
|
|
| 35. |
955981
|
[4] |
O-ring
|
|
| 36. |
1542380
|
[4] |
Stud
|
|
| 37. |
946035
|
[4] |
Lock nut
|
|
| 38. |
1545159
|
[1] |
Foot plate
|
|
| 39. |
1545160
|
[4] |
Spacer sleeve
|
|
| 40. |
955324
|
[4] |
Hexagon screw
|
|
| 41. |
941908
|
[4] |
Spring washer
|
|
| 42. |
3582851
|
[4] |
Sealing ring
|
|
| 43. |
955082
|
[1] |
Cap plug
|
|
| 44. |
829467
|
[1] |
Flywheel housing
|
|
| 45. |
3582851
|
[1] |
Sealing ring
|
|
| 46. |
404069
|
[1] |
Pin
|
|
| 47. |
829487
|
[1] |
Gasket
|
|
| 48. |
941908
|
[8] |
Spring washer
|
|
| 49. |
955320
|
[6] |
Hexagon screw
|
L=40mm
|
| 49. |
955321
|
[2] |
Hexagon screw
|
L=45mm
|
| 50. |
407092
|
[1] |
Cover
|
|
| 51. |
941906
|
[2] |
Spring washer
|
|
| 52. |
955269
|
[2] |
Hexagon screw
|
|
| 53. |
846761
|
[1] |
Flywheel housing
|
For reverse gear MS2., See group 4A
|
| 53. |
829489
|
[1] |
Cap
|
For reverse gear MS3., See group 4A
|
| 53. |
844519
|
[1] |
Flywheel housing
|
For Aquamatic drive unit and Duoprop drive unit., See group 4A
|
| 54. |
829488
|
[1] |
Gasket
|
|
| 55. |
955319
|
[11] |
Hexagon screw
|
|
| 56. |
941908
|
[11] |
Spring washer
|
|
| 57. |
191026
|
[1] |
Plug
|
|
