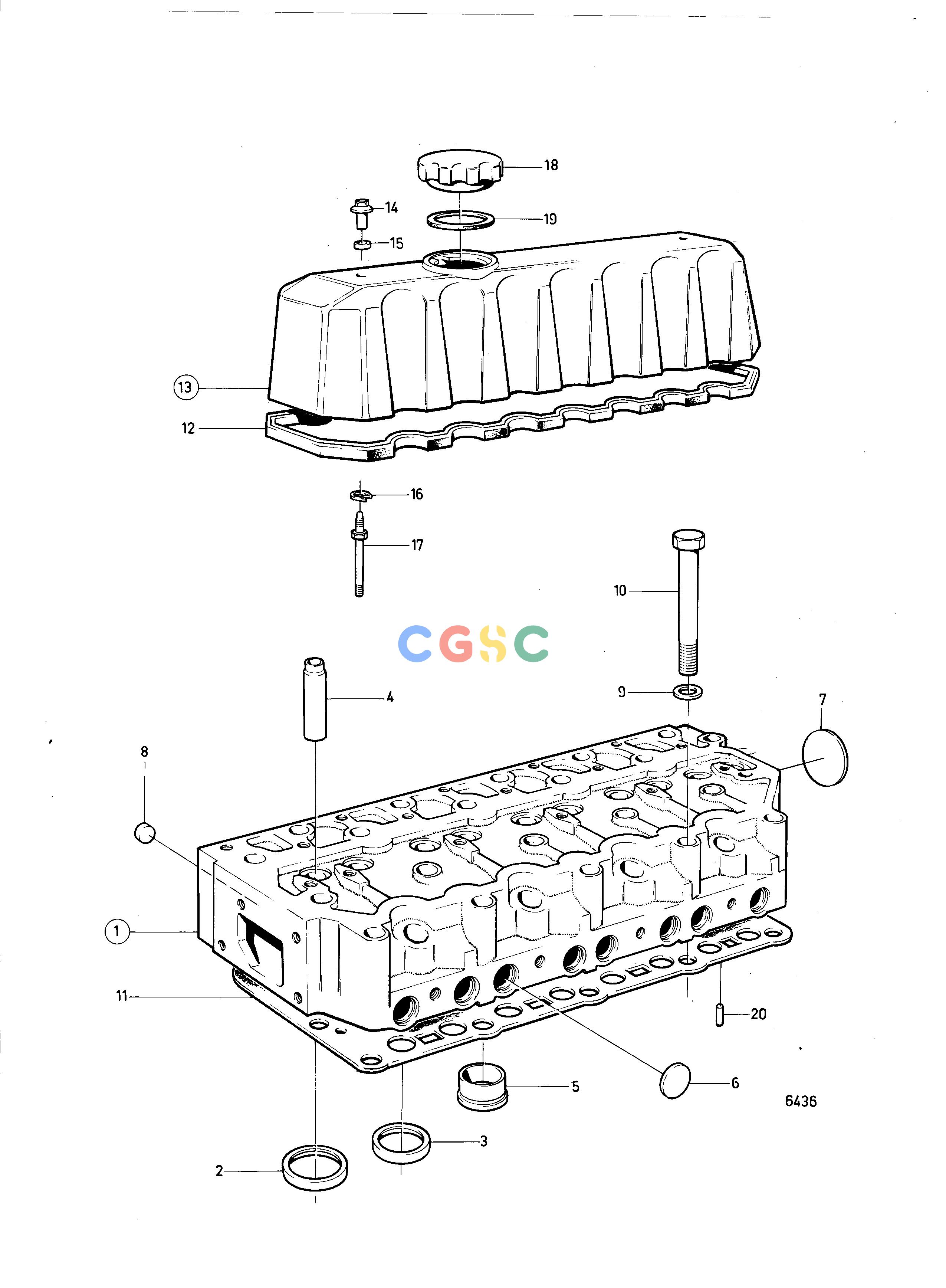

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30EngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 18 02月, 2025，浏览：
146 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803023
|
[1] |
Cylinder head
|
(1544110)
|
| 2. |
1545174
|
[4] |
Valve seat, intake
|
|
| 2. |
1545175
|
[1] |
Valve seat, intake
|
Over size 0,20mm
|
| 3. |
1545177
|
[4] |
Valve seat, exhaust
|
|
| 3. |
1545178
|
[1] |
Valve seat, exhaust
|
Over size 0,20mm
|
| 4. |
419653
|
[8] |
Valve guide
|
|
| 5. |
|
|
|
|
| 6. |
192426
|
[12] |
Expansion plug
|
|
| 7. |
1542264
|
[1] |
Expansion plug
|
|
| 8. |
967853
|
[4] |
Cap plug
|
(955081)
|
| 9. |
1542316
|
[19] |
Washer
|
MO-7774
|
| 10. |
838775
|
[19] |
Flange screw
|
MO7775-
|
| 10. |
|
|
|
MO-7774
|
| 11. |
1544109
|
[1] |
Gasket
|
|
| 12. |
1544119
|
[1] |
Gasket
|
|
| 13. |
1544117
|
[1] |
Valve cover
|
|
| 14. |
1542286
|
[2] |
Cap nut
|
|
| 15. |
469846
|
[2] |
Sealing ring
|
(424342)
|
| 16. |
914449
|
[2] |
Snap ring
|
|
| 17. |
1542283
|
[2] |
Stud
|
|
| 18. |
420292
|
[1] |
Oil filler cap
|
|
| 19. |
940096
|
[1] |
Gasket
|
|
| 20. |
946402
|
[2] |
Grooved pin
|
|
