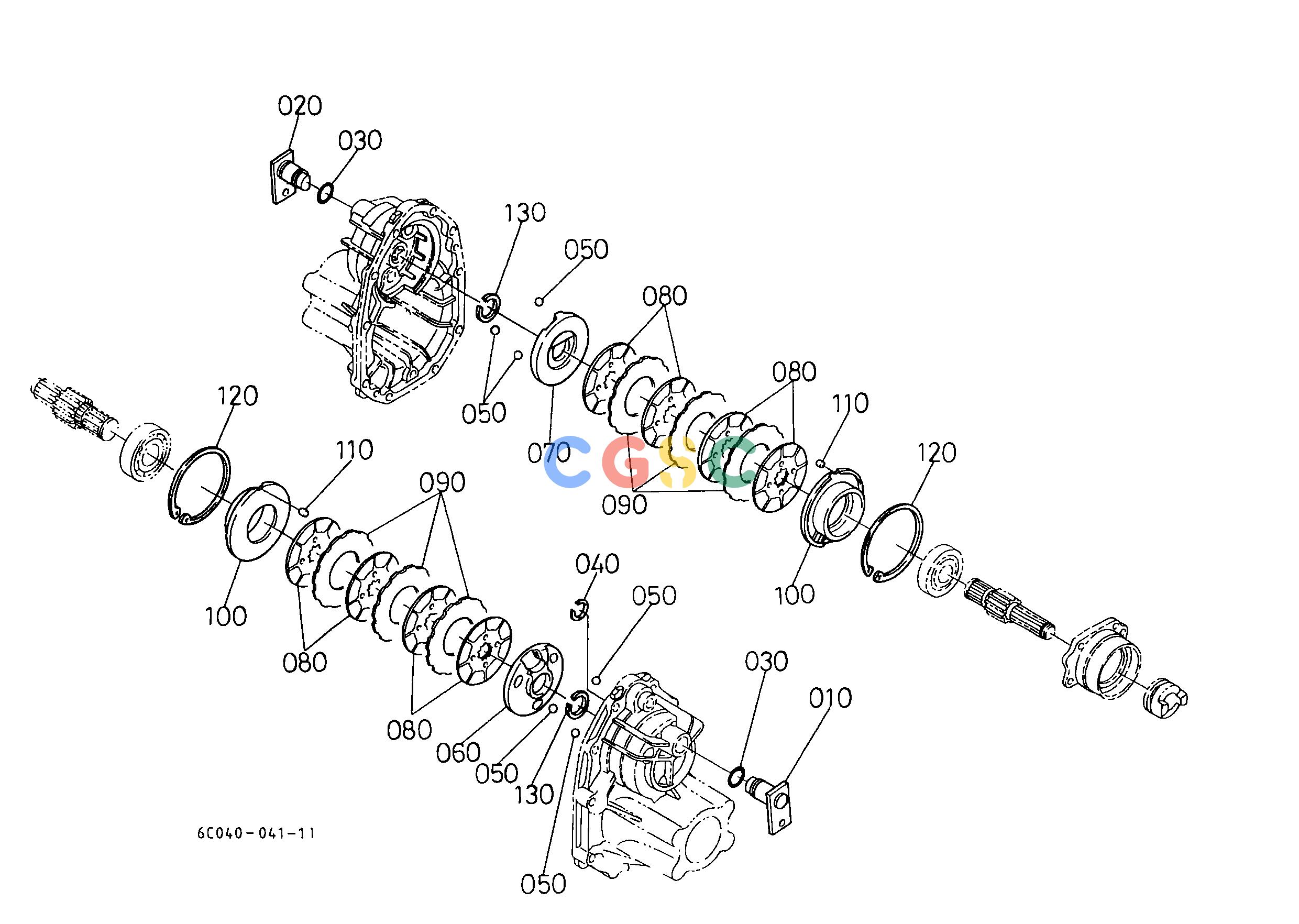

久保田零件查询E00100 BRAKE BRAKEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
208 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04022360
|
[1] |
LEVER,CAM LH
|
0.7040(lbs); 0.320
|
| 020. |
6C04022460
|
[1] |
LEVER,CAM RH
|
0.7260(lbs); 0.330
|
| 030. |
0481600210
|
[2] |
O RING
|
0.0088(lbs); 0.004
|
| 040. |
6706114370
|
[2] |
CIR-CLIP
|
0.0044(lbs); 0.002
|
| 050. |
0771500805
|
[6] |
BALL
|
0.0352(lbs); 0.016
|
| 060. |
6C04022321
|
[1] |
ACTUATOR LH
|
0.0000(lbs); 0.000
|
| 060. |
6C09022320
|
[1] |
ACTUATOR LH
|
1.3860(lbs); 0.630
|
| 070. |
6C04022421
|
[1] |
ACTUATOR RH
|
0.0000(lbs); 0.000
|
| 070. |
6C09022420
|
[1] |
ACTUATOR RH
|
1.3860(lbs); 0.630
|
| 080. |
6C04022351
|
[8] |
DISK,BRAKE
|
0.0000(lbs); 0.000
|
| 080. |
6C04222351
|
[8] |
DISK,BRAKE
|
0.0000(lbs); 0.000
|
| 080. |
6C09022350
|
[8] |
DISK,BRAKE
|
0.3960(lbs); 0.180
|
| 090. |
6C04022341
|
[6] |
PLATE,FRICTION
|
0.0000(lbs); 0.000
|
| 090. |
6C14022340
|
[3] |
PLATE,FRICTION
|
0.2640(lbs); 0.120
|
| 100. |
6C04022380
|
[2] |
HOLDER(BEARING)
|
1.1880(lbs); 0.540
|
| 110. |
6C04022440
|
[2] |
PIN
|
0.0088(lbs); 0.004
|
| 120. |
6C04022450
|
[2] |
CIRCLIP,INT
|
0.1760(lbs); 0.080
|
| 130. |
7043551590
|
[2] |
CIR-CLIP
|
0.0044(lbs); 0.002
|
