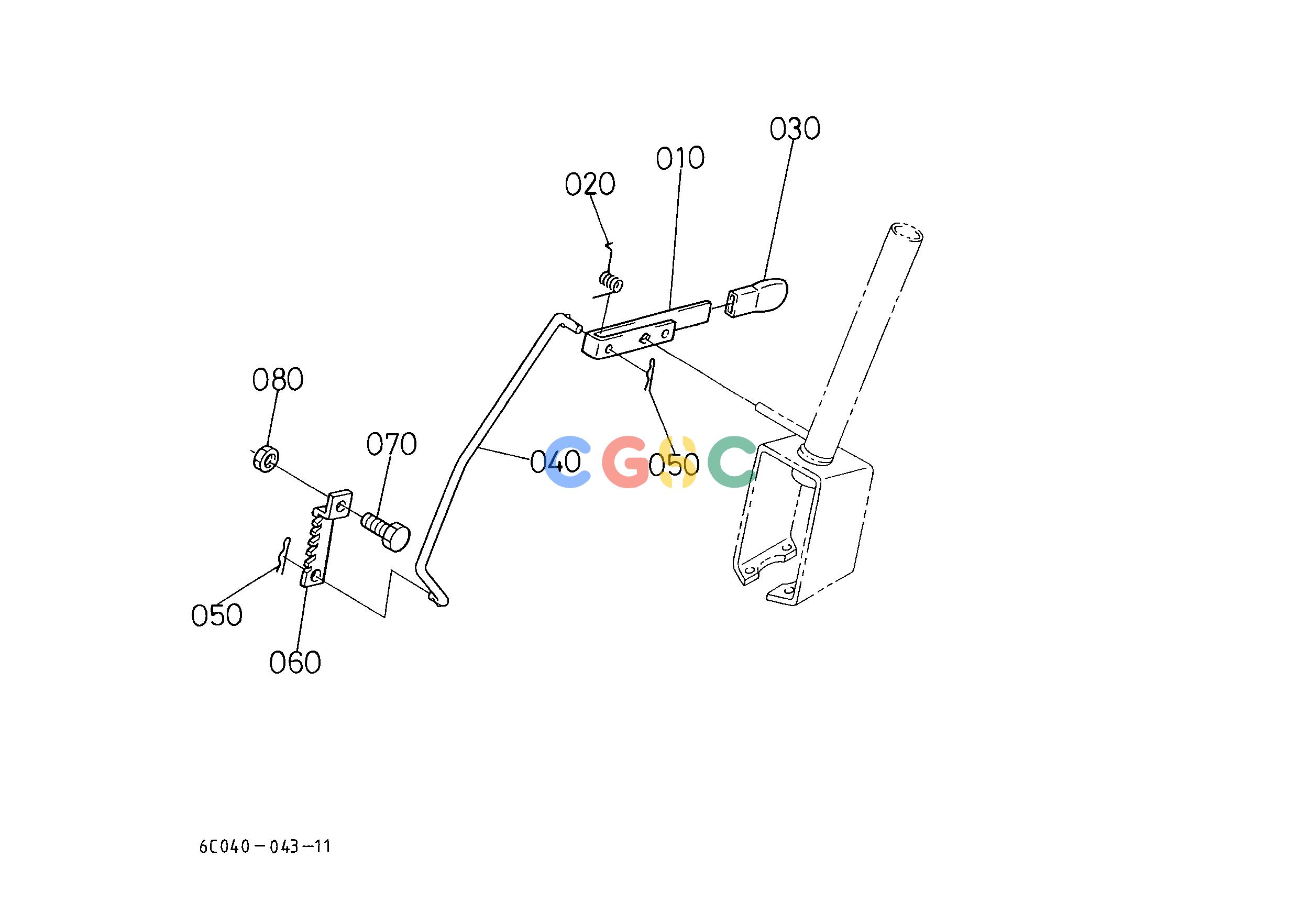

久保田零件查询E01500 PARKING BRAKE LEVER BRAKEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
723 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04041350
|
[1] |
LEVER
|
0.2288(lbs); 0.104
|
| 020. |
6C04041380
|
[1] |
SPRING(RETURN)
|
0.0176(lbs); 0.008
|
| 030. |
6C04041360
|
[1] |
GRIP,LEVER
|
0.0264(lbs); 0.012
|
| 040. |
6C04041373
|
[1] |
ROD,BRAKE
|
0.4840(lbs); 0.220
|
| 050. |
0552550800
|
[2] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 060. |
6C04042250
|
[1] |
PLATE,BRAKE LOCK
|
0.1540(lbs); 0.070
|
| 070. |
0115350820
|
[1] |
HEX.BOLT
|
0.0264(lbs); 0.012
|
| 070. |
0115350822
|
[1] |
HEX.BOLT
|
0.0242(lbs); 0.011
|
| 080. |
5059162370
|
[1] |
LOCKNUT
|
0.0110(lbs); 0.005
|
