纽荷兰零件查询(F4DFE613J A004) - ENGINE - 84182025 (10.102.01) - ENGINE OIL SUMP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
313 次

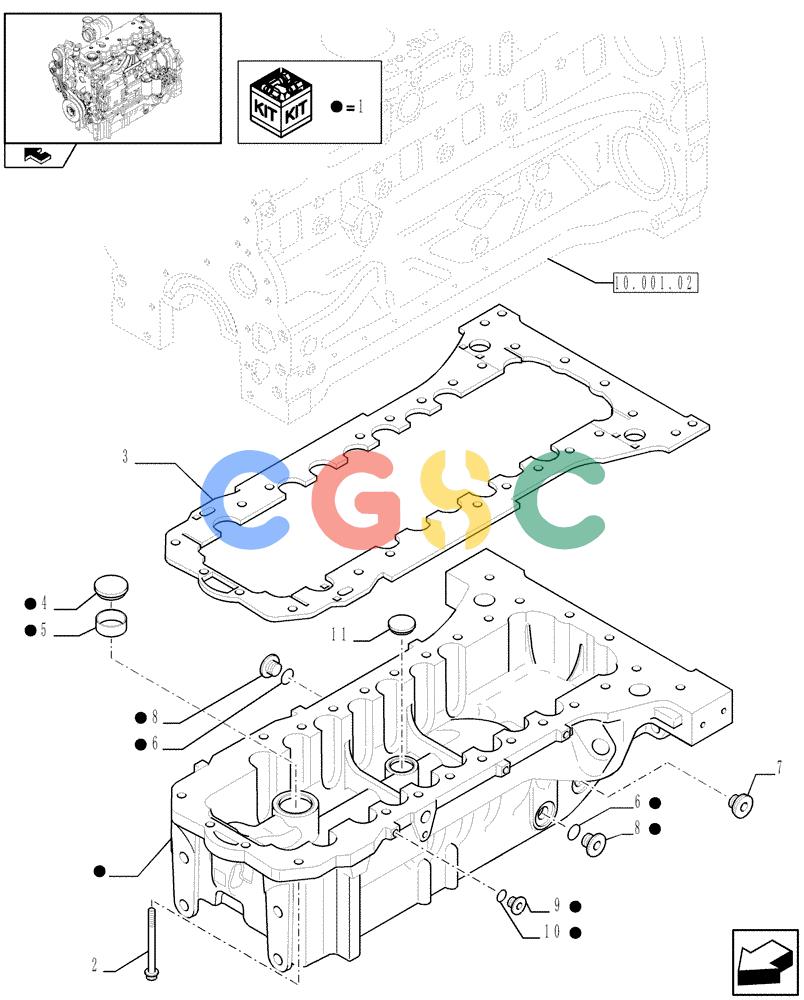

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2855274 | [1] | ENGINE OIL PAN | TORASSY |
| 2. | 4895339 | [2] | SCREW | TORM 8 x 20 |
| 2. | 4892753 | [22] | SCREW | TOR |
| 2. | 2855278 | [6] | SCREW | TORM10 x 1,5 x 150 |
| 2. | 4892742 | [4] | BOLT,Flng, M10 x 1.5 x 190mm, Cl 10.9 | TOR |
| 3. | 4894301 | [1] | OIL PAN GASKET SET | TOR |
| 4. | 4895936 | [1] | PLUG | TOR |
| 5. | 4895935 | [1] | FILTER SCREEN | TOR |
| 6. | 2853728 | [2] | O-RING,M23.47 ID x 2.62 Thk | TOR Superseded by part number: 14457780 |
| 7. | 2855276 | [1] | PLUG | TOR Superseded by part number: 5185747 |
| 8. | 4894139 | [2] | PLUG,Hex Soc, M22 x 1.5 | TOR |
| 9. | 4893206 | [1] | PLUG | TOR Superseded by part number: 16993311 |
| 10. | 4893207 | [1] | SEALING WASHER | TOR Superseded by part number: 5167640 |
| 11. | 2831461 | [1] | HOLE PLUG BUTTON | TOR |
