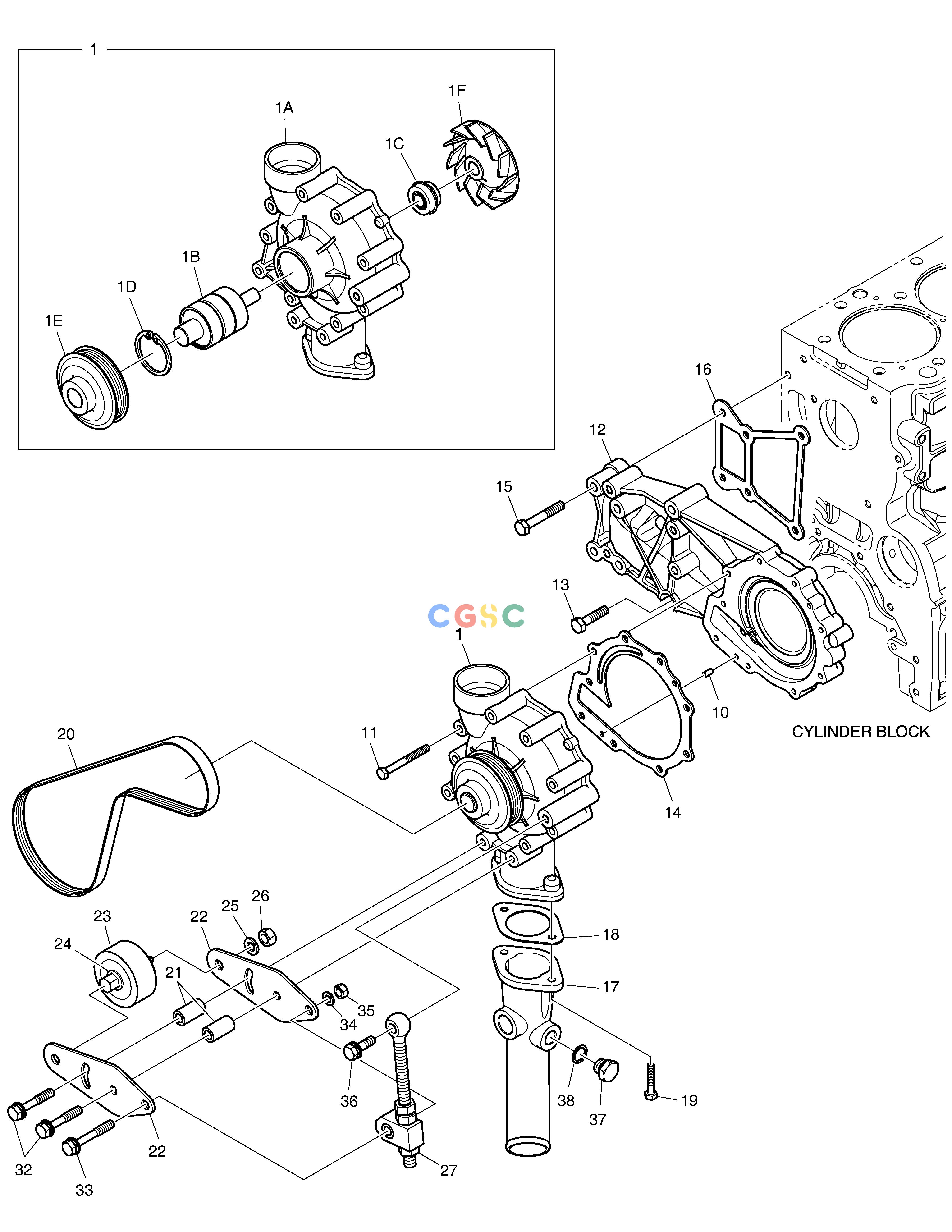

斗山零件查询WATER PUMP DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
353 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400921-00015B
|
[1] |
|
|
| 10. |
06.22022-0907
|
[2] |
. PIN;DOWEL
|
|
| 11. |
06.01923-3126
|
[9] |
BOLT;HEX. M8X75
|
|
| 12. |
110508-00182A
|
[1] |
|
|
| 13. |
06.01923-3119
|
[1] |
BOLT ASS`Y M8X40
|
|
| 14. |
400602-00096
|
[1] |
|
|
| 15. |
06.01923-3124
|
[5] |
BOLT ASS`Y M8X65
|
|
| 16. |
400602-00113A
|
[1] |
|
|
| 17. |
420211-00092
|
[1] |
|
|
| 18. |
400631-00003
|
[1] |
|
|
| 19. |
06.01923-3117
|
[2] |
. BOLT ASS`Y M8X30
|
|
| 1A. |
400923-00005A
|
[1] |
|
|
| 1B. |
65.93410-0087
|
[1] |
. BEARING
|
|
| 1C. |
65.06520-6008
|
[1] |
. SEAL;MECHANICAL
|
|
| 1D. |
06.29020-0132
|
[1] |
. SNAP RING
|
|
| 1E. |
130707-00011A
|
[1] |
|
|
| 1F. |
400902-00005
|
[1] |
|
|
| 20. |
130205-00059
|
[1] |
|
|
| 21. |
110951-00327
|
[3] |
|
|
| 22. |
110417-00002
|
[2] |
|
|
| 23. |
130710-00008
|
[1] |
|
|
| 24. |
65.91701-0154
|
[1] |
|
06.15010-2313
|
| 24. |
06.15010-2313
|
[1] |
WASHER;PLAIN
|
|
| 25. |
06.16731-2109
|
[1] |
WASHER;SPRING A12
|
|
| 26. |
06.11063-8216
|
[1] |
|
|
| 27. |
65.19103-6010A
|
[1] |
EYE BOLT ASS`Y
|
|
| 32. |
06.01923-3223
|
[2] |
|
|
| 33. |
06.01923-3225
|
[1] |
BOLT ASS'Y M10X70
|
|
| 34. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 35. |
06.11063-8215
|
[1] |
NUT;HEX. M10
|
|
| 36. |
06.01923-3218
|
[1] |
BOLT ASS`Y M10X35
|
|
| 37. |
65.90310-0050B
|
[1] |
SCREW;PLUG M20X1.5
|
|
| 38. |
06.56190-0715
|
[1] |
. RING;SEAL
|
|
