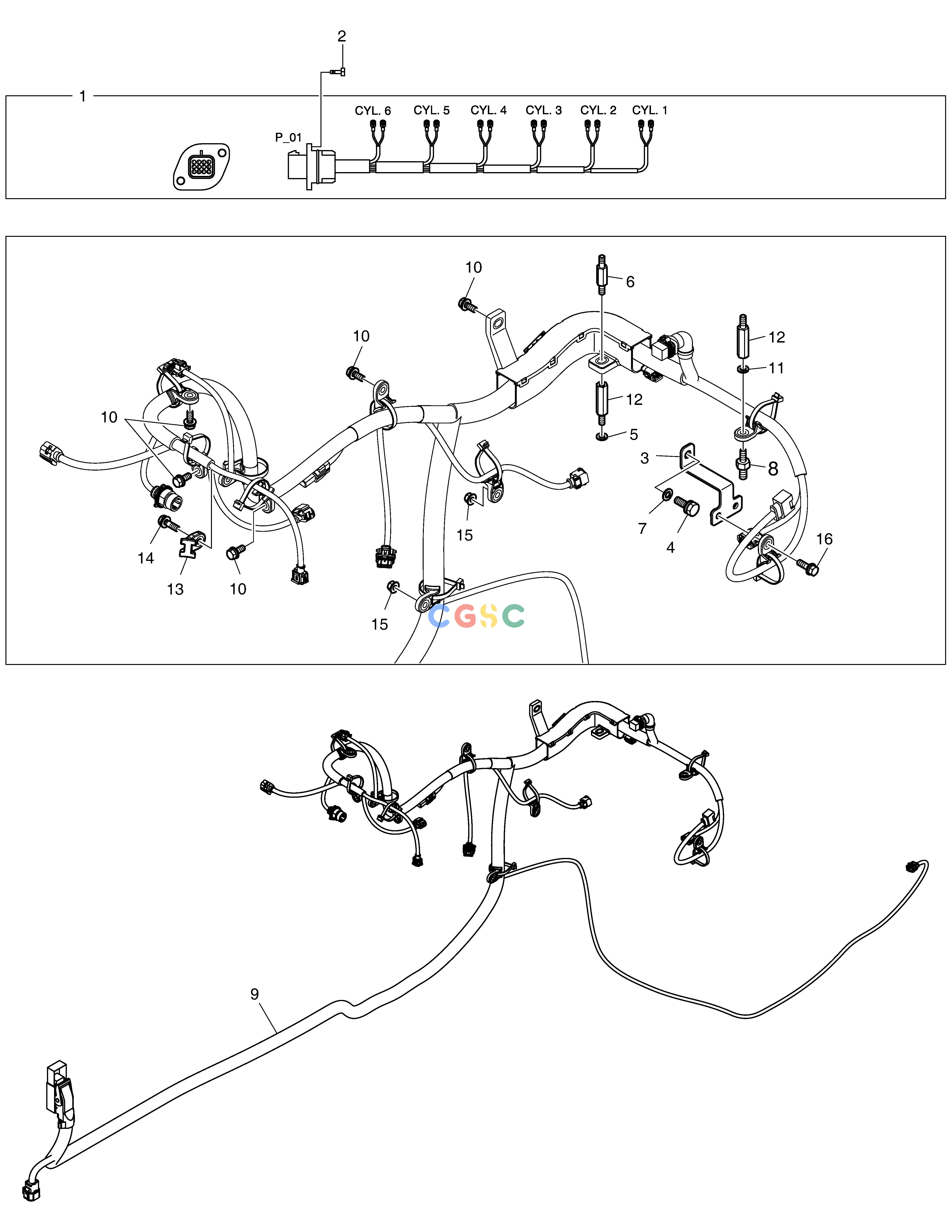

斗山零件查询WIRE HARNESS DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
310208-00430
|
[1] |
WIRE,ELECTRIC
|
|
| 1. |
310208-00207
|
[1] |
WIRE,ELECTRIC
|
|
| 10. |
06.01923-3114
|
[5] |
BOLT ASS`Y M8X22
|
|
| 11. |
06.16731-2107
|
[1] |
WASHER
|
|
| 12. |
120122-00023
|
[2] |
BOLT;SPACER
|
|
| 13. |
120402-00259
|
[1] |
|
|
| 14. |
06.01923-3116
|
[1] |
BOLT ASS`Y M8X28
|
|
| 15. |
65.90535-0003
|
[2] |
NUT
|
|
| 16. |
06.01923-3116
|
[1] |
BOLT ASS`Y M8X28
|
|
| 2. |
06.01913-2911
|
[2] |
BOLT ASS`Y M6X16
|
|
| 3. |
110452-00085
|
[1] |
|
|
| 4. |
06.01923-3217
|
[1] |
BOLT ASS`Y M10X30
|
|
| 5. |
06.16731-2107
|
[1] |
WASHER
|
|
| 6. |
120122-00022
|
[1] |
|
|
| 7. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 8. |
120122-00024
|
[1] |
WASHER
|
|
| 9. |
310207-03959
|
[1] |
|
310207-03959A
|
| 9. |
310207-01566C
|
[1] |
|
310207-01566D
|
| 9. |
310207-01566D
|
[1] |
|
310207-01566E
|
| 9. |
310207-01566E
|
[1] |
|
|
| 9. |
310207-03959A
|
[1] |
|
|
| 9. |
310207-01566A
|
[1] |
|
310207-01566C
|
