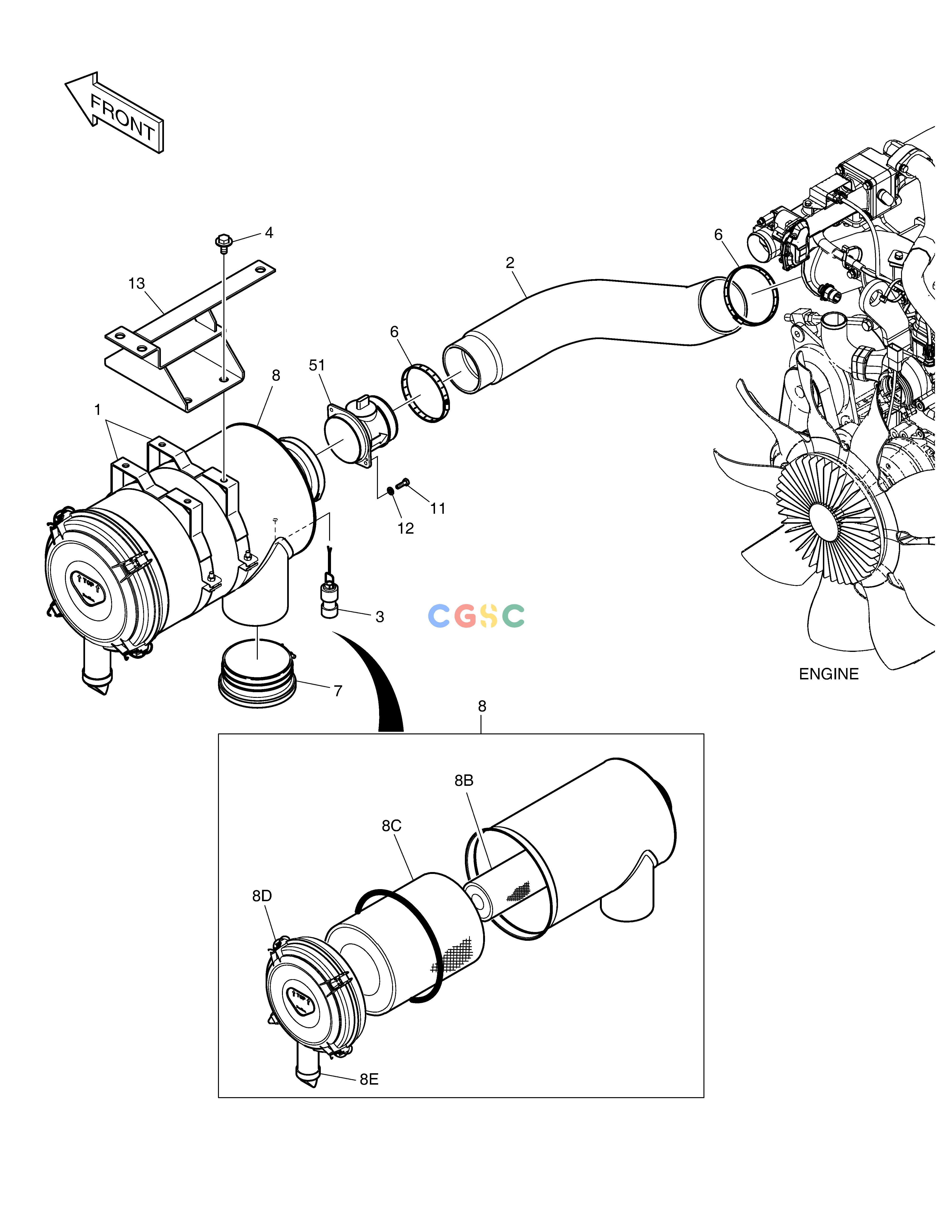

斗山零件查询AIR CLEANER ASS'Y DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
914 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400414-00107
|
[-] |
|
|
| 1. |
124-00298A
|
[2] |
BAND
|
|
| 11. |
S0504866
|
[2] |
BOLT
|
|
| 12. |
S5010303
|
[2] |
WASHER
|
|
| 13. |
110958-00825A
|
[1] |
|
|
| 2. |
420101-00189A
|
[1] |
|
|
| 3. |
170-00004
|
[1] |
INDICATOR
|
|
| 4. |
DS0025023
|
[4] |
BOLT
|
|
| 51. |
301308-00036
|
[1] |
|
|
| 6. |
S8510118
|
[2] |
CLAMP
|
|
| 7. |
K1003618
|
[1] |
CAP;RAIN
|
|
| 8. |
400414-00180
|
[1] |
|
|
| 8B. |
474-00039
|
[1] |
. ELEMENT,INNER
|
|
| 8C. |
474-00040
|
[1] |
ELEMENT,OUTER
|
|
| 8D. |
204-00075
|
[1] |
. COVER
|
|
| 8E. |
204-00070
|
[1] |
VALVE
|
|
