斗山零件查询ACOUSTIC FOAM DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
909 次

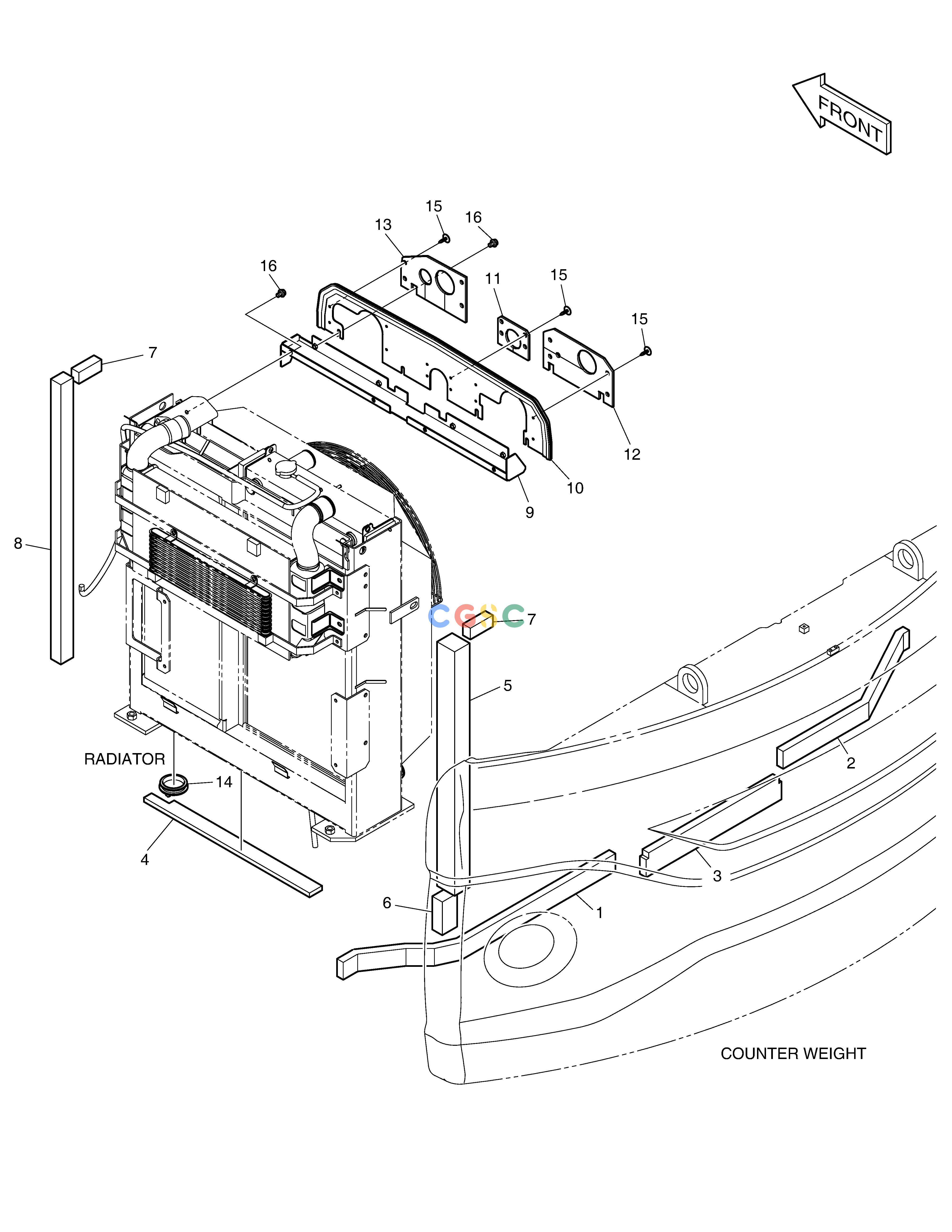

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
180102-00246
|
[-] |
|
|
| 1. |
180102-00437
|
[1] |
|
|
| 10. |
110502-00400A
|
[1] |
|
|
| 11. |
220214-00037
|
[1] |
|
|
| 12. |
220214-00039A
|
[1] |
|
|
| 13. |
220214-00047
|
[1] |
|
|
| 14. |
K1007044
|
[1] |
BUSHING
|
|
| 15. |
124-00070
|
[12] |
CLIP;TREE
|
|
| 16. |
K1001029
|
[8] |
BOLT
|
|
| 2. |
180102-00438
|
[1] |
FOAM;COUNTER WEIGHT
|
|
| 3. |
180102-00439
|
[1] |
FOAM;COUNTER WEIGHT
|
|
| 4. |
180102-00440
|
[1] |
|
|
| 5. |
180102-00441A
|
[1] |
|
|
| 6. |
180102-00442
|
[1] |
|
|
| 7. |
180102-00622
|
[2] |
|
|
| 8. |
180102-00202A
|
[1] |
|
|
| 9. |
110502-00399A
|
[1] |
|
|
