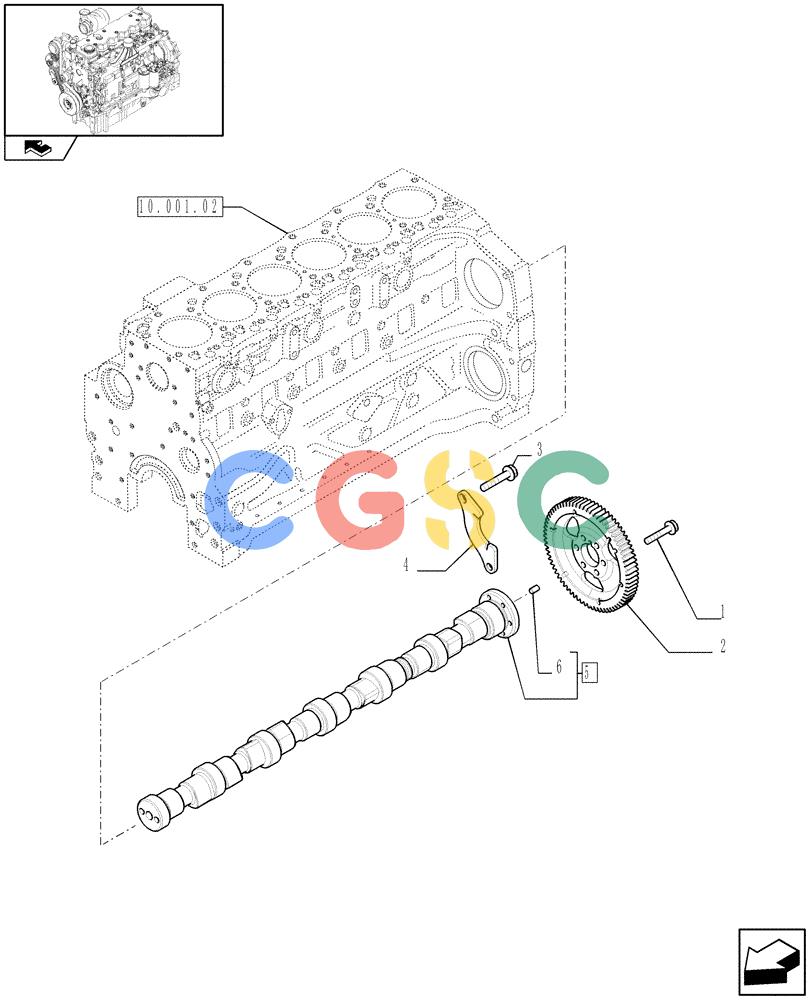

纽荷兰零件查询(F4DFE613J A004) - ENGINE - 84182025 (10.106.01) - CAMSHAFT - TIMING CONTROL New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
353 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [6] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 2830438 | [1] | DRIVEN GEAR | TOR |
| 3. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 4. | 4897457 | [1] | SUPPORT | TOR |
| 5. | 504345138 | [1] | CAMSHAFT | TORASSY |
| 5. | 504345138R | [1] | REMAN-CAMSHAFT | RACT7.220, T7.235, T7.250, T7.260, T7.270, All AUTOCOMMAND TRACTOR, ASSY (12/10-), T7.220, T7.235, T7.250, T7.260, All TRACTOR (12/10-), F4DFE613G A004 ENGINE - 84229380, F4DFE613J A004 ENGINE - 84182025, All ASSY |
| 5. | 504345138C | [1] | | RACReturn Number |
| 6. | 4899080 | [1] | DOWEL,M6 x 8 L | TOR |
