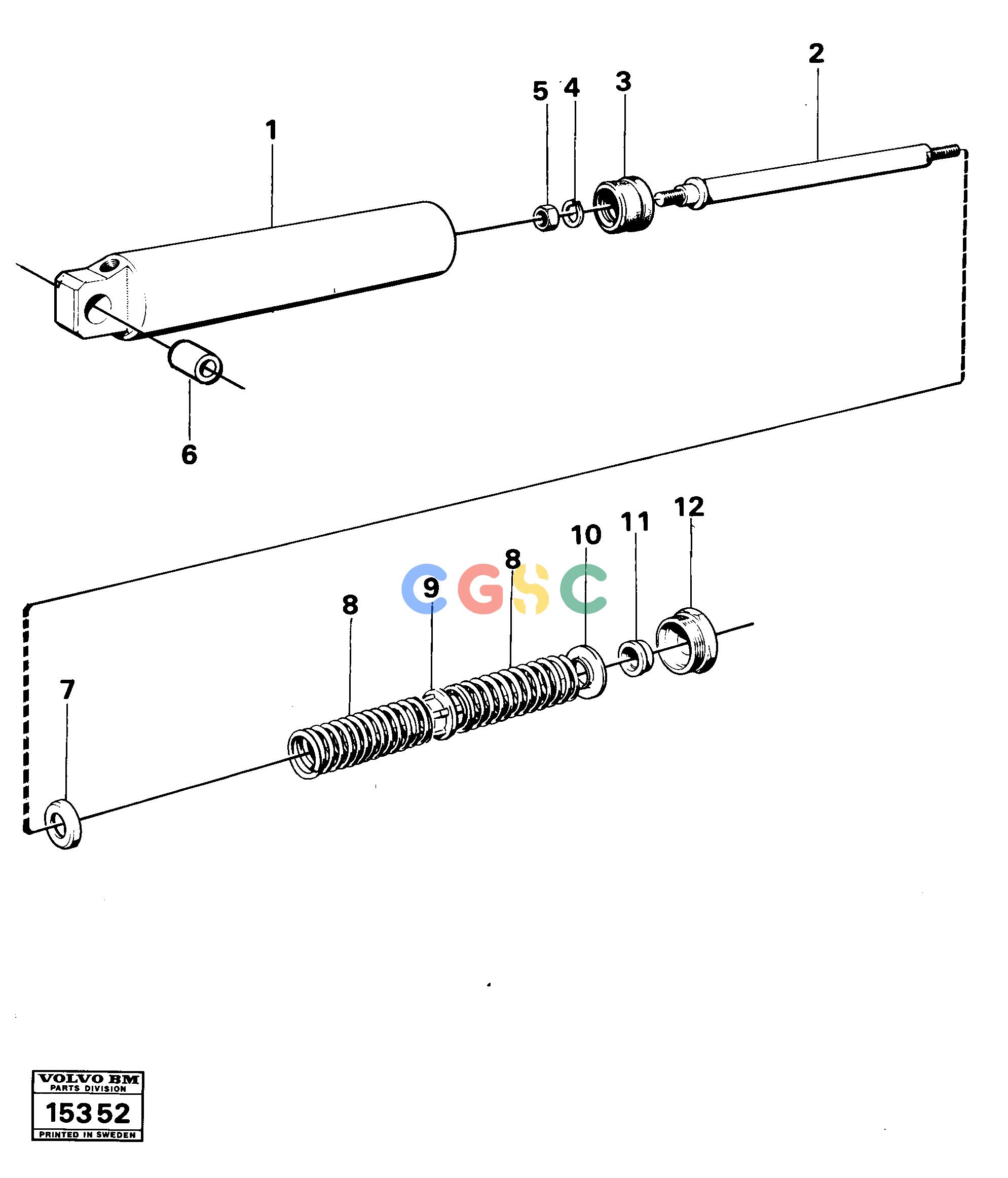

沃尔沃零件查询861 Pneumatic cylinder861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
494 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE13941907
|
[0001] |
Washer
|
|
| 5. |
VOE955782
|
[0001] |
Hexagon nut
|
|
| 6. |
VOE7239280
|
[0001] |
Bushing
|
|
| 7. |
VOE7239114
|
[0001] |
Washer
|
|
| 8. |
VOE243783
|
[0002] |
Spring
|
|
| 1. |
VOE7241848
|
[0001] |
Pneumatic cylinder
|
|
| 9. |
VOE243784
|
[0001] |
Guide
|
|
| 10. |
VOE7239115
|
[0001] |
Washer
|
|
| 11. |
VOE7239119
|
[0001] |
Guide sleeve
|
|
| 12. |
VOE7239118
|
[0001] |
Cap
|
|
| 1. |
|
[0001] |
Cylinder
|
|
| 2. |
VOE7239110
|
[0001] |
Piston rod
|
|
| 3. |
VOE7241981
|
[0001] |
Gaiter
|
|
