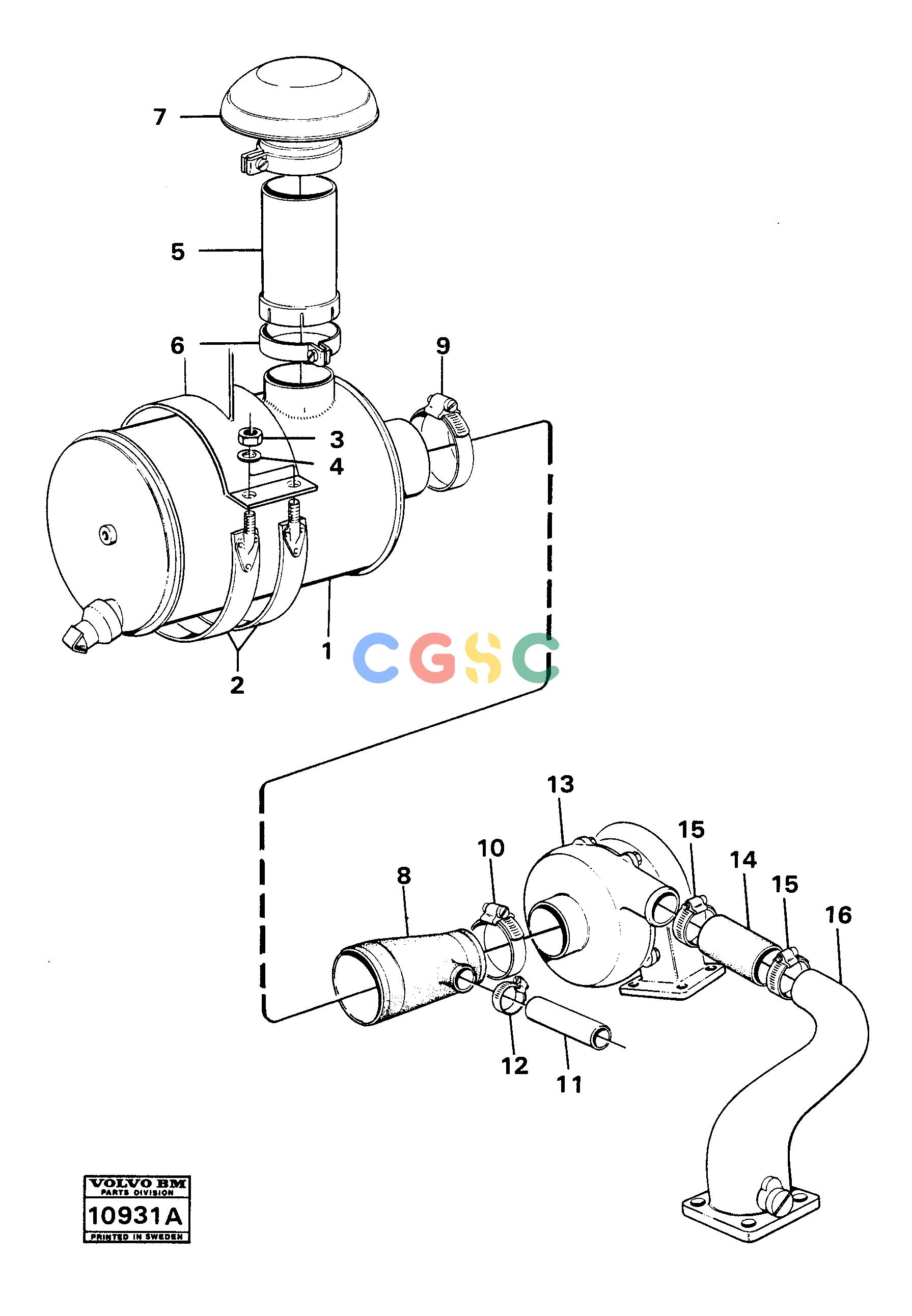

沃尔沃零件查询861 Inlet system861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
388 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE11033485
|
[0001] |
Extension pipe
|
|
| |
VOE6646318
|
[0001] |
Extension
|
|
| 6. |
VOE943484
|
[0001] |
Hose clamp
|
|
| |
|
[0001] |
Clamp
|
|
| |
|
|
None
|
|
| 7. |
VOE14525451
|
[0001] |
Rain cap
|
|
| |
VOE11707307
|
[0001] |
Cover
|
|
| 8. |
VOE4773822
|
[0001] |
Connector
|
|
| |
VOE4861109
|
[0001] |
Connector
|
|
| 9. |
VOE943484
|
[0001] |
Hose clamp
|
|
| |
VOE943485
|
[0001] |
Hose clamp
|
|
| 1. |
VOE4785741
|
[0001] |
Air filter
|
|
| 11. |
|
[0001] |
Pipe
|
|
| 12. |
VOE943476
|
[0001] |
Hose clamp
|
|
| 13. |
|
[0001] |
Turbocharger
|
|
| 14. |
VOE943371
|
[REQ] |
Hose
|
|
| 15. |
VOE943479
|
[0002] |
Hose clamp
|
|
| |
VOE4785786
|
[0001] |
Filter
|
|
| 16. |
|
[0001] |
Connecting pipe
|
SEE GROUP 21
|
| |
|
|
None
|
|
| 2. |
VOE7191977
|
[0002] |
Suspension
|
|
| 3. |
VOE13940097
|
[0002] |
Washer
|
|
| 4. |
VOE950354
|
[0002] |
Lock nut
|
|
