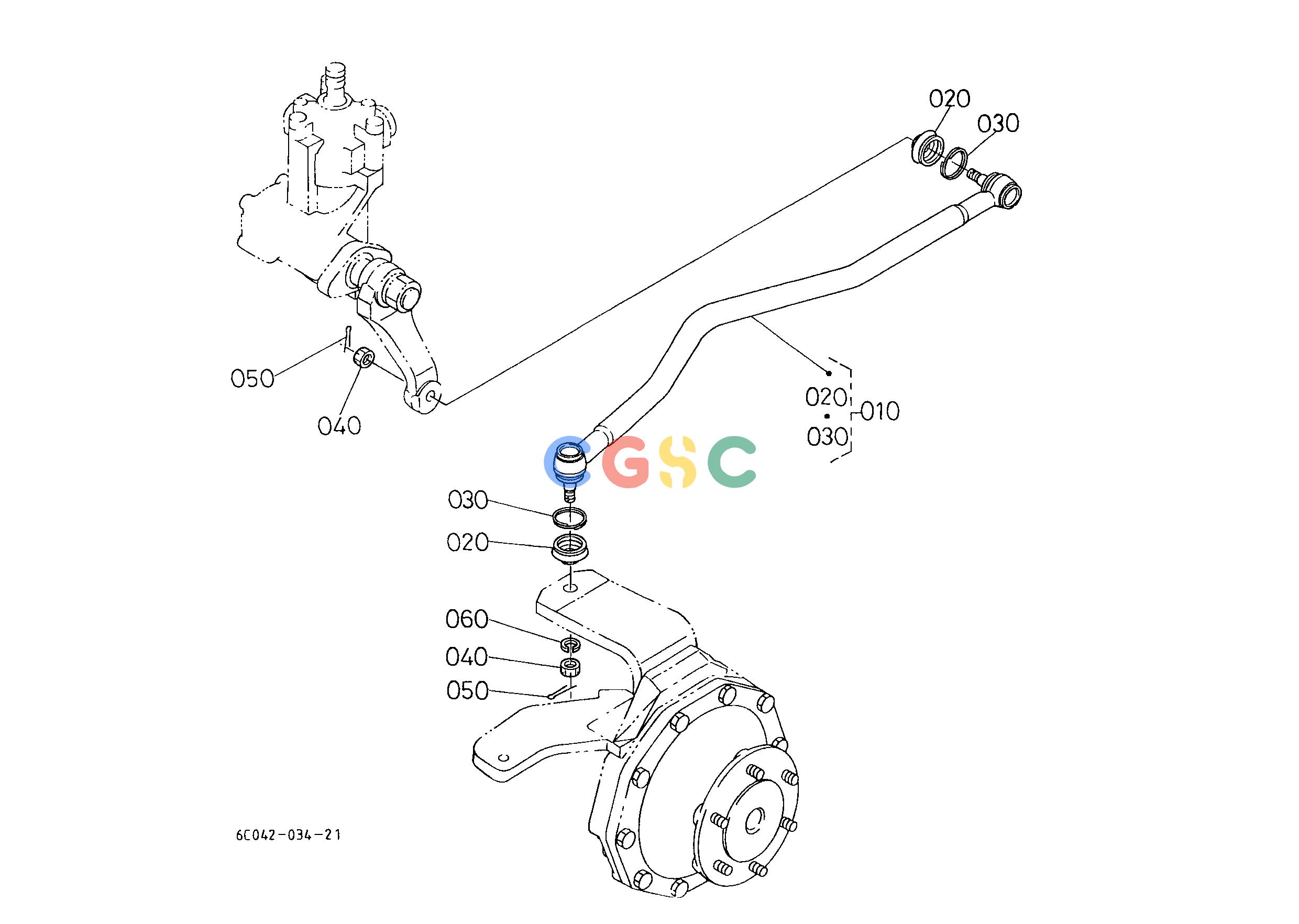

久保田零件查询H00300 DRAG LINK STEERINGEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
880 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04057714
|
[1] |
ASSY LINK,DRAG
|
0.0000(lbs); 0.000
|
| 010. |
6C04057715
|
[1] |
ASSY LINK,DRAG
|
5.5000(lbs); 2.500
|
| 010. |
H6C0057710
|
[1] |
ASSY LINK,DRAG
|
5.5000(lbs); 2.500
|
| 010. |
6C09057710
|
[1] |
ASSY LINK,DRAG
|
5.6540(lbs); 2.570
|
| 010. |
H6C0157710
|
[1] |
ASSY LINK,DRAG
|
5.6540(lbs); 2.570
|
| 020. |
6712156560
|
[2] |
COVER,DUST
|
0.0176(lbs); 0.008
|
| 030. |
6712156570
|
[2] |
CLIP
|
0.0066(lbs); 0.003
|
| 040. |
6659156780
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 050. |
0551150322
|
[2] |
PIN,SPLIT
|
0.0044(lbs); 0.002
|
| 060. |
0451250100
|
[1] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
