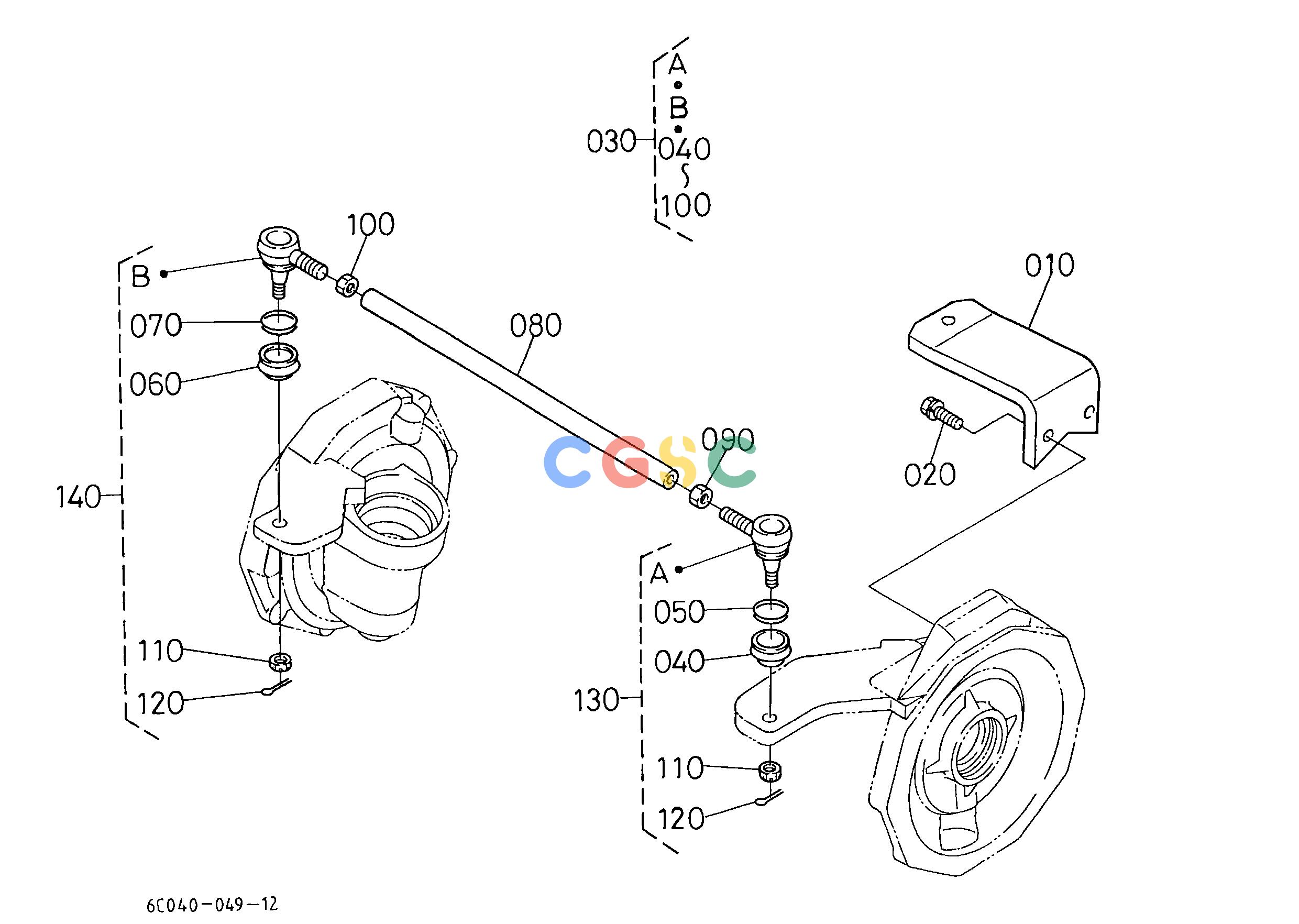

久保田零件查询H00500 TIE ROD STEERINGEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
429 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04056415
|
[1] |
ARM,KNUCKLE
|
0.0000(lbs); 0.000
|
| 010. |
6C04056417
|
[1] |
ARM,KNUCKLE
|
3.0800(lbs); 1.400
|
| 010. |
6C04056418
|
[1] |
ARM,KNUCKLE
|
3.0800(lbs); 1.400
|
| 020. |
0113351235
|
[2] |
BOLT,SEMS
|
0.0946(lbs); 0.043
|
| 020. |
0113861235
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 030. |
6C04056420
|
[1] |
ASSY ROD,TIE
|
3.5420(lbs); 1.610
|
| 040. |
6712156560
|
[1] |
COVER,DUST
|
0.0176(lbs); 0.008
|
| 050. |
6712156570
|
[1] |
CLIP
|
0.0066(lbs); 0.003
|
| 060. |
6712156560
|
[1] |
COVER,DUST
|
0.0176(lbs); 0.008
|
| 070. |
6712156570
|
[1] |
CLIP
|
0.0066(lbs); 0.003
|
| 080. |
6C04056590
|
[1] |
ROD,TIE
|
2.6400(lbs); 1.200
|
| 090. |
0217250120
|
[1] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 100. |
6712156540
|
[1] |
NUT
|
0.0154(lbs); 0.007
|
| 110. |
6659156780
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 120. |
0551150322
|
[2] |
PIN,SPLIT
|
0.0044(lbs); 0.002
|
| 130. |
6795056530
|
[1] |
ASSY END,ROD RH
|
0.4620(lbs); 0.210
|
| 140. |
6795056520
|
[1] |
ASSY END,ROD LH
|
0.5280(lbs); 0.240
|
