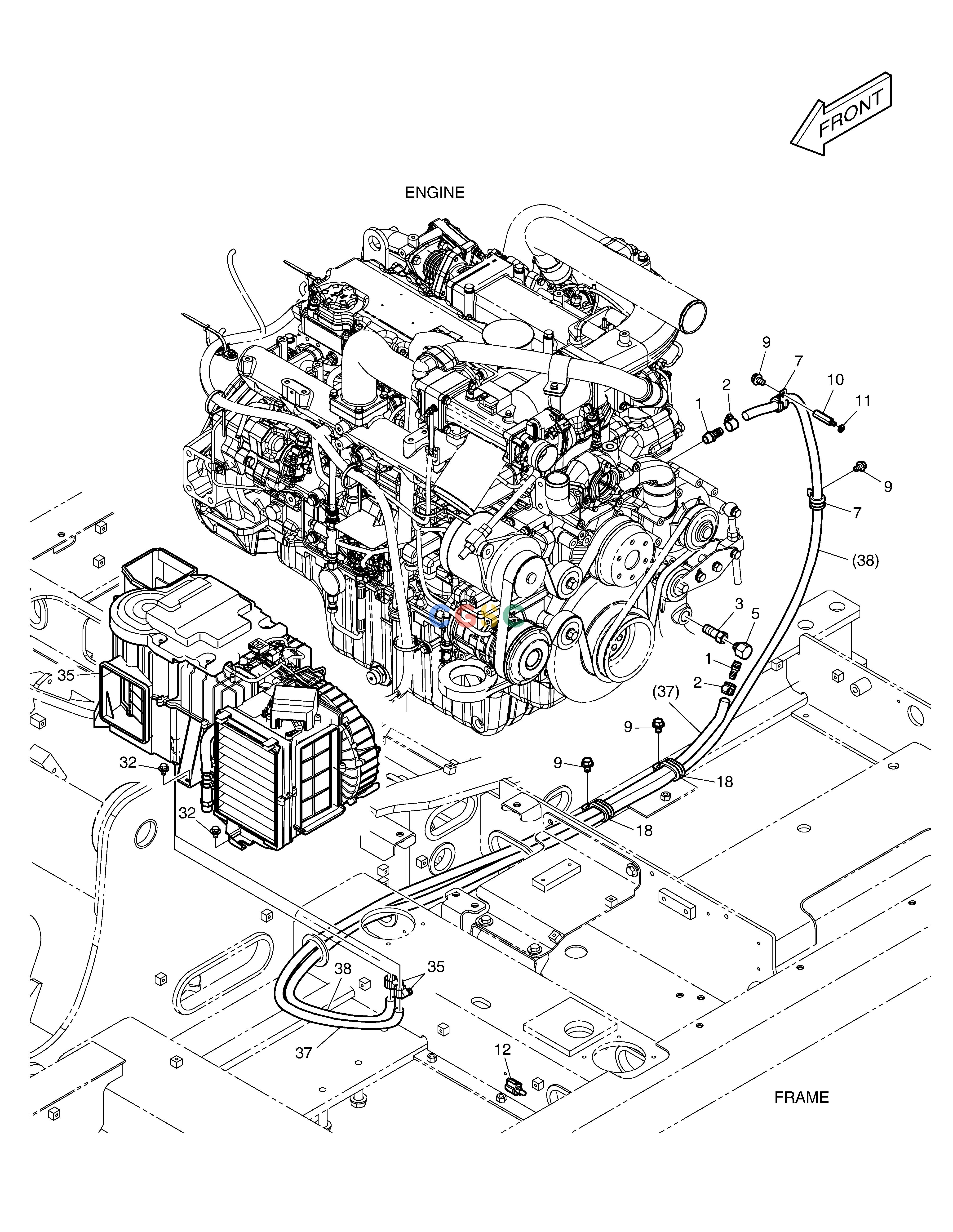

斗山零件查询AIRCONDITIONER(1) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
619 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00188
|
[-] |
|
|
| 1. |
2181-2774
|
[2] |
NIPPLE;HOSE
|
|
| 10. |
2120-2187
|
[1] |
BOLT
|
|
| 11. |
S5102503
|
[1] |
. WASHER
|
|
| 12. |
547-00024A
|
[1] |
SENSOR
|
|
| 18. |
124-00209D4
|
[2] |
CLIP
|
|
| 2. |
S8450016
|
[2] |
. CLAMP
|
DS2807026
|
| 2. |
DS2807026
|
[2] |
|
|
| 3. |
2181-1113D9
|
[1] |
REDUCER
|
|
| 32. |
DS0025033
|
[6] |
BOLT
|
|
| 35. |
440205-00033
|
[1] |
|
|
| 37. |
2185-1308D4
|
[1] |
HOSE;RUBBER
|
|
| 38. |
2185-1308D6
|
[1] |
HOSE;RUBBER
|
|
| 5. |
2181-1161A
|
[1] |
ADAPTER
|
|
| 7. |
124-00208D3
|
[2] |
CLIP
|
|
| 9. |
K1001029
|
[4] |
BOLT
|
|
