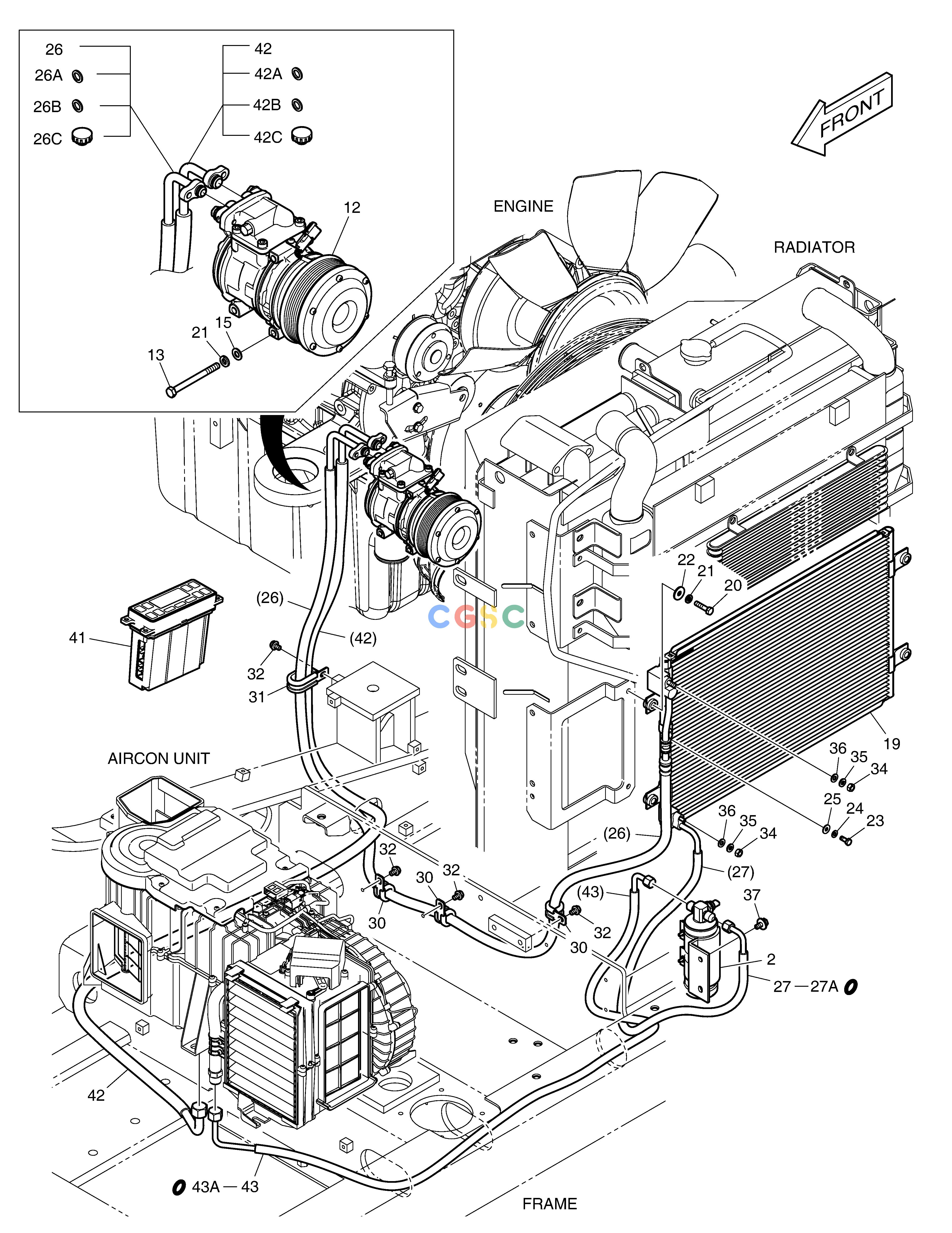

斗山零件查询AIRCONDITIONER(2) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
744 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00189
|
[-] |
|
|
| 12. |
K1057338
|
[1] |
|
|
| 13. |
S0557166
|
[3] |
BOLT
|
|
| 15. |
S5010513
|
[3] |
WASHER
|
|
| 19. |
520-00004
|
[1] |
CONDENSER,AIR CON
|
|
| 2. |
2204-6039A
|
[1] |
RECEIVER DRIER
|
|
| 20. |
S0509366
|
[4] |
BOLT
|
|
| 21. |
S5102503
|
[7] |
. WASHER
|
|
| 22. |
2114-1058D29
|
[4] |
WASHER
|
|
| 23. |
S0504666
|
[1] |
BOLT
|
|
| 24. |
S5010303
|
[1] |
WASHER
|
|
| 25. |
2114-1058D52
|
[1] |
WASHER
|
|
| 26. |
420102-00120B
|
[1] |
|
|
| 26A. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 26B. |
K1011384
|
[1] |
O-RING(CONDENSER)
|
|
| 26C. |
1.161-00018
|
[1] |
CAP;CHECK PORT(H)
|
|
| 27. |
420102-00121A
|
[1] |
|
|
| 27A. |
K1011388
|
[2] |
O-RING
|
|
| 30. |
124-00208D3
|
[3] |
CLIP
|
|
| 31. |
124-00209D2
|
[1] |
CLIP
|
|
| 32. |
K1001029
|
[4] |
BOLT
|
|
| 34. |
S4012303
|
[2] |
NUT
|
|
| 35. |
S5102303
|
[2] |
. WASHER
|
|
| 36. |
S5000313
|
[2] |
WASHER
|
|
| 37. |
DS0025033
|
[2] |
BOLT
|
|
| 41. |
543-00107
|
[1] |
CONTROL PANEL,AIR CON
|
|
| 42. |
420102-00119C
|
[1] |
|
|
| 42A. |
K1011385
|
[1] |
O-RING(EVAPORATOR)
|
|
| 42B. |
2180-6086
|
[1] |
O-RING(COMP)
|
|
| 42C. |
1.161-00019
|
[1] |
CAP;CHECK PORT(L)
|
|
| 43. |
420102-00122B
|
[1] |
|
|
| 43A. |
K1011388
|
[2] |
O-RING
|
|
