沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30EngineOil PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
821 次

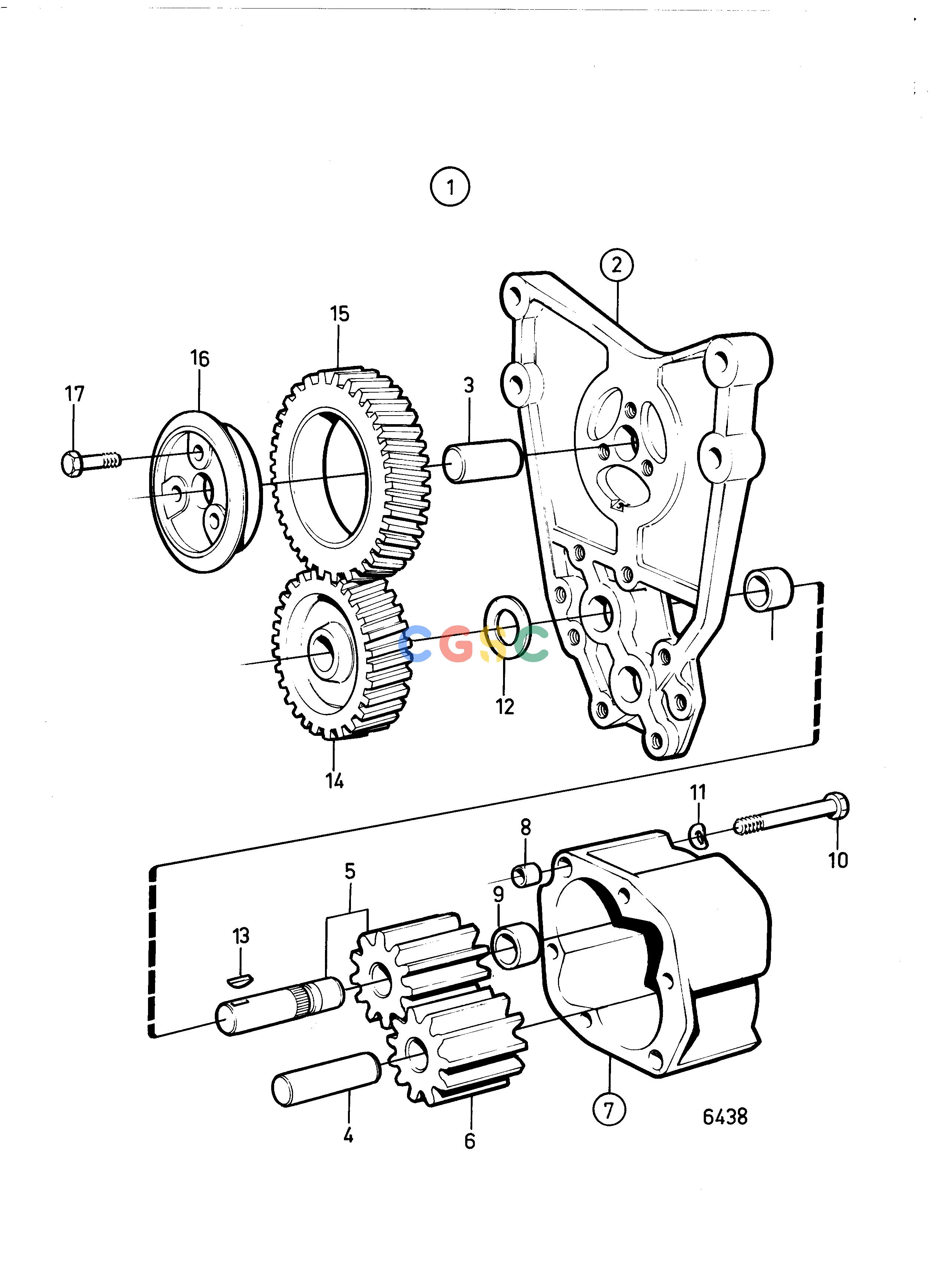

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1544125
|
[1] |
Oil pump
|
|
| 2. |
1544126
|
[1] |
Bracket
|
|
| 3. |
950614
|
[1] |
Pin
|
|
| 4. |
1544127
|
[1] |
Pin
|
|
| 5. |
1544128
|
[1] |
Shaft
|
|
| 6. |
1544130
|
[1] |
Oil pump wheel
|
|
| 7. |
1544131
|
[1] |
Housing
|
|
| 8. |
401146
|
[2] |
Guide sleeve
|
|
| 9. |
470234
|
[1] |
Bushing
|
|
| 10. |
955299
|
[2] |
Hexagon screw
|
|
| 11. |
941907
|
[2] |
Spring washer
|
|
| 12. |
424133
|
[1] |
Washer
|
|
| 13. |
910115
|
[1] |
Woodruff key
|
|
| 14. |
1542214
|
[1] |
Gear
|
|
| 15. |
1542215
|
[1] |
Oil pump wheel
|
|
| 16. |
1542218
|
[1] |
Bearing sleeve
|
|
| 17. |
946470
|
[3] |
Flange screw
|
|
