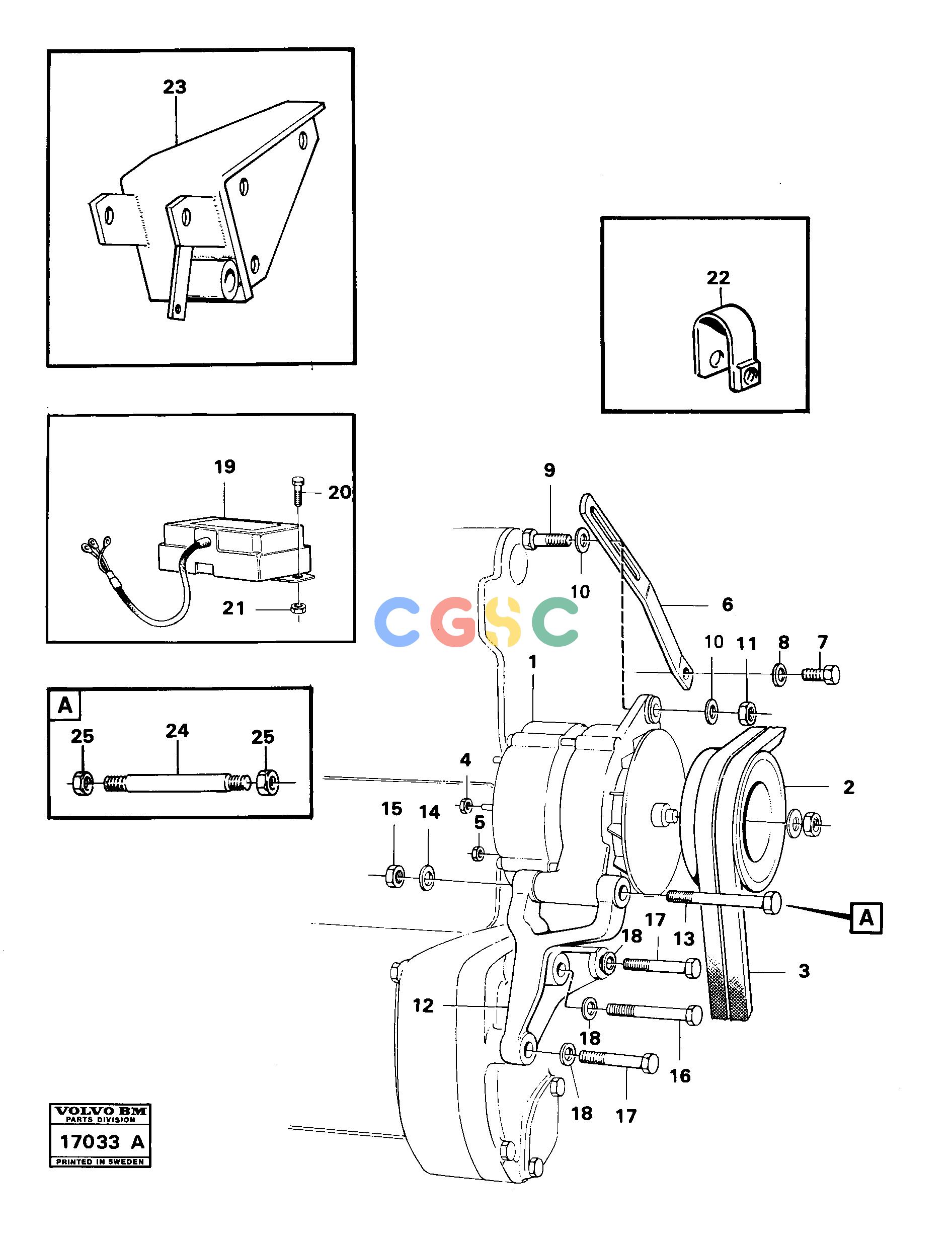

沃尔沃零件查询861 Alternator with assembling details861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
678 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
|
None
|
|
| |
VOE4861761
|
[0001] |
Alternator
|
SER NO 58782 -
|
| |
|
|
None
|
|
| 2. |
VOE4773582
|
[0001] |
Strap
|
SER NO -57371
|
| |
VOE787433
|
[0001] |
Pulley
|
SER NO 57372 - 58781
|
| 1. |
VOE4780994
|
[0001] |
Alternator
|
SER NO -58781
|
| |
VOE785874
|
[0001] |
Pulley
|
|
| 3. |
|
[0001] |
V-belt set
|
SEE GROUP 22
|
| 4. |
VOE955780
|
[0003] |
Hexagon nut
|
|
| 5. |
VOE13955781
|
[0001] |
Nut
|
|
| 6. |
VOE4773552
|
[0001] |
Tensioner
|
SER NO -57371
|
| |
VOE4861288
|
[0001] |
Tensioner
|
SER NO 57372-
|
| 7. |
VOE13940133
|
[0001] |
Screw
|
|
| 8. |
VOE13940097
|
[0001] |
Washer
|
|
| 9. |
VOE60111880
|
[0001] |
Hexagon screw
|
SER NO -57371
|
| |
VOE13947760
|
[0001] |
Screw
|
SER NO 57372-
|
| |
|
|
None
|
|
| 10. |
VOE13960141
|
[0001] |
Washer
|
SER NO -57371
|
| 11. |
VOE963106
|
[0001] |
Lock nut
|
SER NO -57371
|
| 12. |
VOE4773531
|
[0001] |
Anchorage
|
SER NO -57371
|
| 13. |
VOE970960
|
[0001] |
Hexagon screw
|
SER NO -57371
|
| |
VOE955556
|
[0001] |
Hexagon screw
|
SER NO 57372 - 59393
|
| 14. |
VOE976945
|
[0001] |
Washer
|
SER NO - 57371, 59394-
|
| |
VOE955896
|
[0001] |
Plain washer
|
SER NO 57372 - 59393
|
| 15. |
VOE13971089
|
[0001] |
Lock nut
|
SER NO -57371
|
| |
VOE950355
|
[0001] |
Lock nut
|
SER NO 57372 - 59393
|
| 16. |
VOE955528
|
[0001] |
Hexagon screw
|
SER NO -57371
|
| |
VOE4780530
|
[0001] |
Alternator
|
SER NO - 58781
|
| |
VOE13955527
|
[0001] |
Screw
|
SER NO 57372-
|
| 17. |
VOE13940136
|
[0002] |
Screw
|
SER NO -57371
|
| |
VOE13955527
|
[0002] |
Screw
|
SER NO 57372-
|
| 18. |
VOE13941907
|
[0003] |
Washer
|
|
| 19. |
VOE4803322
|
[0001] |
Regulator
|
FÖR/FOR 4780994
|
| |
|
|
None
|
SER NO - 58781
|
| |
VOE4803321
|
[0001] |
Regulator
|
FÖR/FOR
|
| 20. |
VOE959171
|
[0003] |
Screw
|
|
| 21. |
VOE955778
|
[0003] |
Hexagon nut
|
SER NO - 58781
|
| |
VOE955778
|
[0003] |
Hexagon nut
|
SER NO 58782 -
|
| 22. |
VOE466735
|
[0001] |
Brace
|
SER NO 57372-
|
| 23. |
VOE4861279
|
[0001] |
Anchorage
|
SER NO 57372-
|
| |
|
|
None
|
|
| 24. |
VOE4942015
|
[0001] |
Pin
|
SER NO 59394 -
|
| 25. |
VOE13971098
|
[0002] |
Flange nut
|
SER NO 59394 -
|
