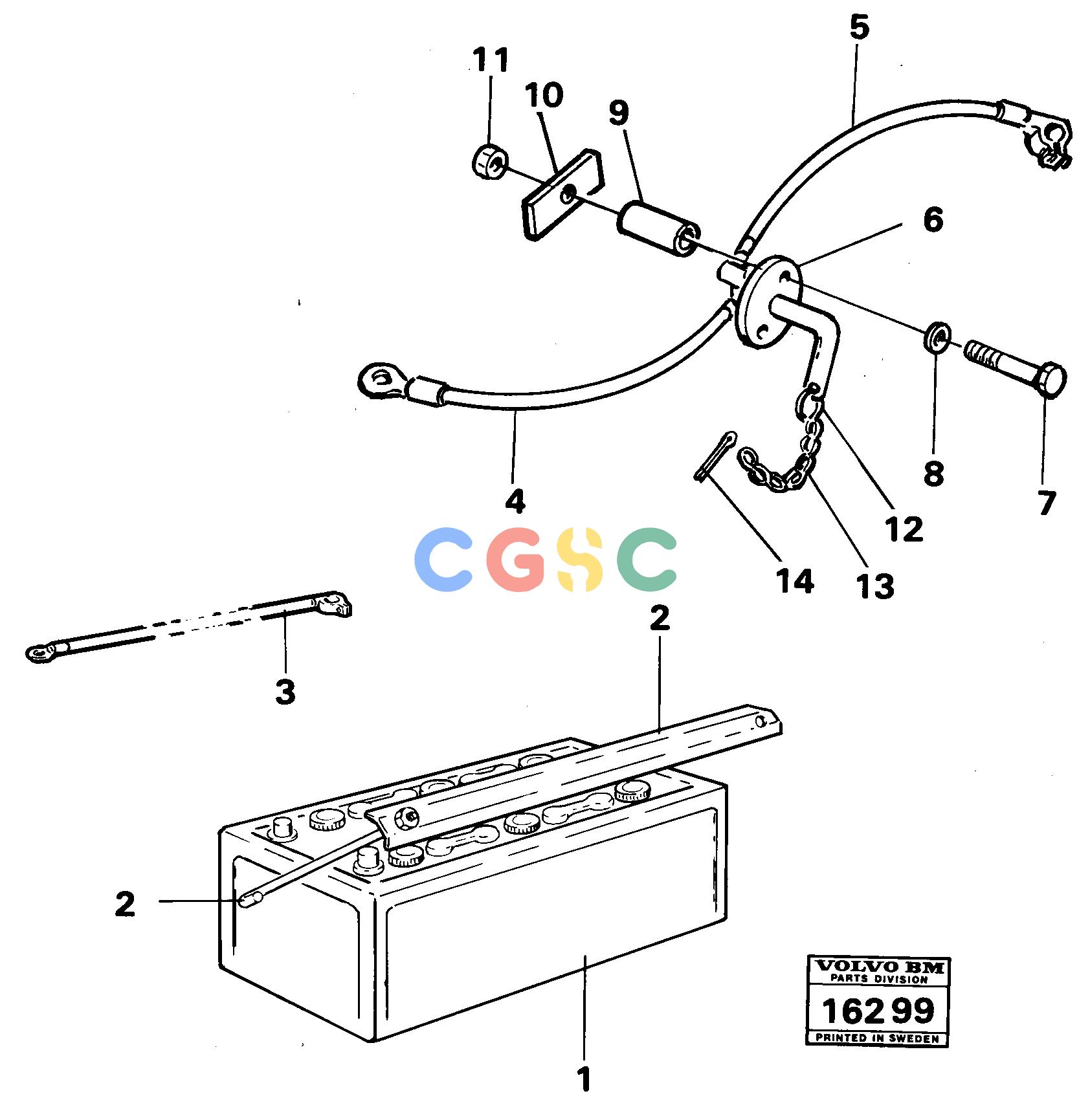

沃尔沃零件查询861 Battery with assembling details861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
780 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE6643264
|
[0001] |
Battery cable
|
|
| 6. |
VOE870980
|
[0001] |
Switch
|
|
| 7. |
VOE956069
|
[0002] |
Cross recessed screw
|
|
| 8. |
VOE955891
|
[0004] |
Plain washer
|
|
| 9. |
VOE6626372
|
[0002] |
Spacer sleeve
|
|
| 1. |
VOE8158065
|
[0001] |
Battery
|
12 V 170 AH
|
| 10. |
VOE4822051
|
[0002] |
Washer
|
|
| 11. |
VOE13963103
|
[0002] |
Lock nut
|
|
| 12. |
VOE6626486
|
[0001] |
Ring
|
|
| 13. |
|
[0001] |
Chain
|
|
| 14. |
VOE907845
|
[0002] |
Split pin
|
|
| 2. |
|
[0002] |
Tightener iron
|
SEE GROUP 71
|
| 3. |
VOE4860297
|
[0001] |
Battery cable
|
+
|
| 4. |
VOE6643263
|
[0001] |
Battery cable
|
-
|
