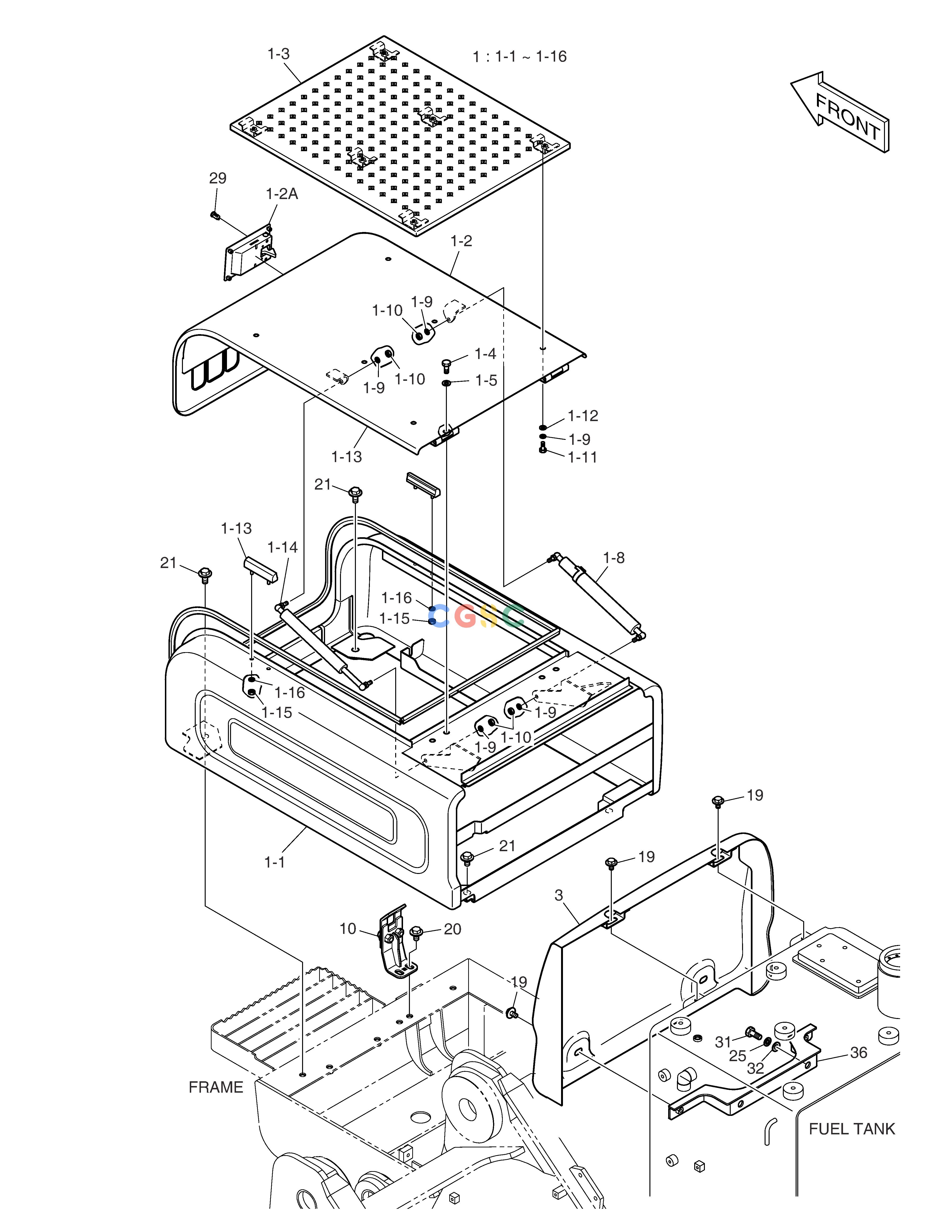

斗山零件查询BATTERY COVER DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
996 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-01965
|
[-] |
|
|
| 1. |
110503-00139
|
[1] |
|
|
| 1-1. |
K1000145E
|
[1] |
|
|
| 1-10. |
S4012533
|
[4] |
NUT
|
|
| 1-11. |
S0508866
|
[6] |
BOLT
|
|
| 1-12. |
2114-1058D29
|
[6] |
WASHER
|
|
| 1-13. |
K1005305A
|
[2] |
. STOPPER;RUBBER
|
|
| 1-14. |
DS1001060
|
[1] |
SPRING;GAS
|
|
| 1-15. |
S4012333
|
[4] |
NUT
|
|
| 1-16. |
S5102303
|
[4] |
. WASHER
|
|
| 1-2. |
K1000146C
|
[1] |
COVER
|
|
| 1-2A. |
125-00071B
|
[1] |
LATCH;FRONT
|
|
| 1-3. |
110508-08447
|
[1] |
|
|
| 1-4. |
S0512066
|
[4] |
. BOLT
|
|
| 1-5. |
S5010613
|
[4] |
WASHER
|
|
| 1-8. |
400315-00026
|
[1] |
. CYLINDER,GAS
|
|
| 1-9. |
S5102503
|
[10] |
. WASHER
|
|
| 10. |
195-02624C
|
[1] |
BRACKET
|
|
| 19. |
DS0025014
|
[4] |
BOLT
|
|
| 20. |
DS0025015
|
[2] |
BOLT
|
|
| 21. |
DS0025025
|
[4] |
BOLT
|
|
| 25. |
S5102703
|
[2] |
WASHER
|
|
| 29. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 3. |
621-03025A
|
[1] |
COVER;TANK
|
|
| 31. |
S0515166
|
[2] |
BOLT
|
|
| 32. |
2114-1154
|
[2] |
WASHER
|
|
| 36. |
195-02706C
|
[1] |
BRACKET
|
|
