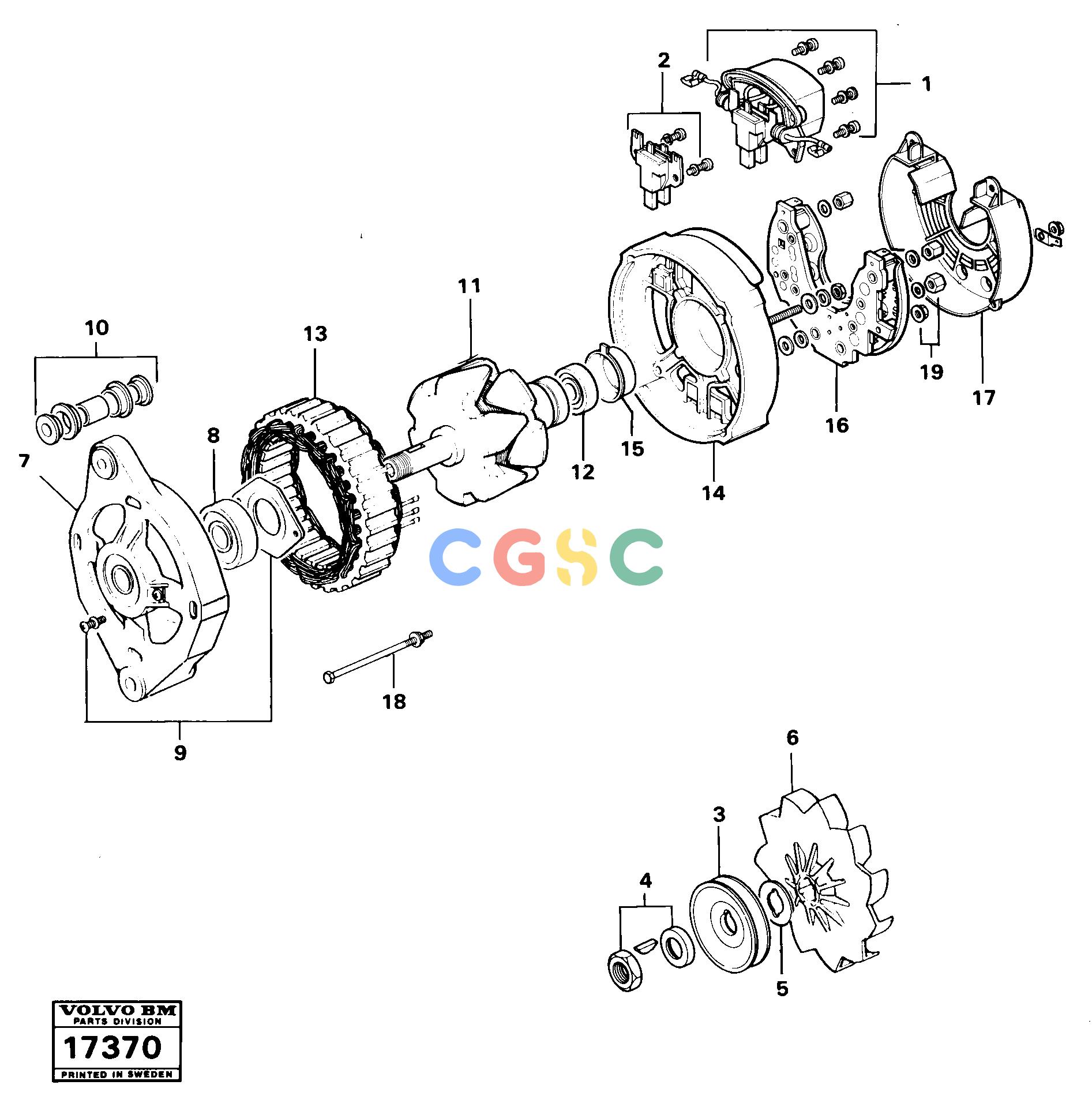

沃尔沃零件查询861 Alternator tillv nr 58782-861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE6212688
|
[0001] |
Nut set
|
|
| 5. |
VOE4861760
|
[0002] |
Washer
|
|
| 6. |
VOE11000306
|
[0001] |
Fan
|
|
| 7. |
|
[0001] |
End plate
|
|
| 8. |
VOE181875
|
[0001] |
Ball bearing
|
|
| |
VOE4861761
|
[0001] |
Alternator
|
|
| 9. |
VOE840625
|
[0001] |
Cover washer
|
|
| 10. |
VOE840634
|
[0001] |
Vibration damper
|
|
| 11. |
VOE6212686
|
[0001] |
Rotor
|
|
| 12. |
VOE181874
|
[0001] |
Ball bearing
|
|
| 13. |
VOE11987497
|
[0001] |
Stator
|
|
| 14. |
|
[0001] |
End plate
|
|
| 15. |
VOE838919
|
[0001] |
Cover
|
|
| 16. |
VOE873817
|
[0001] |
Diode bridge
|
|
| 17. |
|
[0001] |
Protecting casing
|
|
| 18. |
VOE6212852
|
[0001] |
Screw kit
|
|
| 1. |
VOE872367
|
[0001] |
Regulator
|
|
| 19. |
VOE840624
|
[0001] |
Nut Set
|
|
| 2. |
VOE840632
|
[0001] |
Brush retainer
|
|
| 3. |
VOE841811
|
[0001] |
Pulley
|
|
