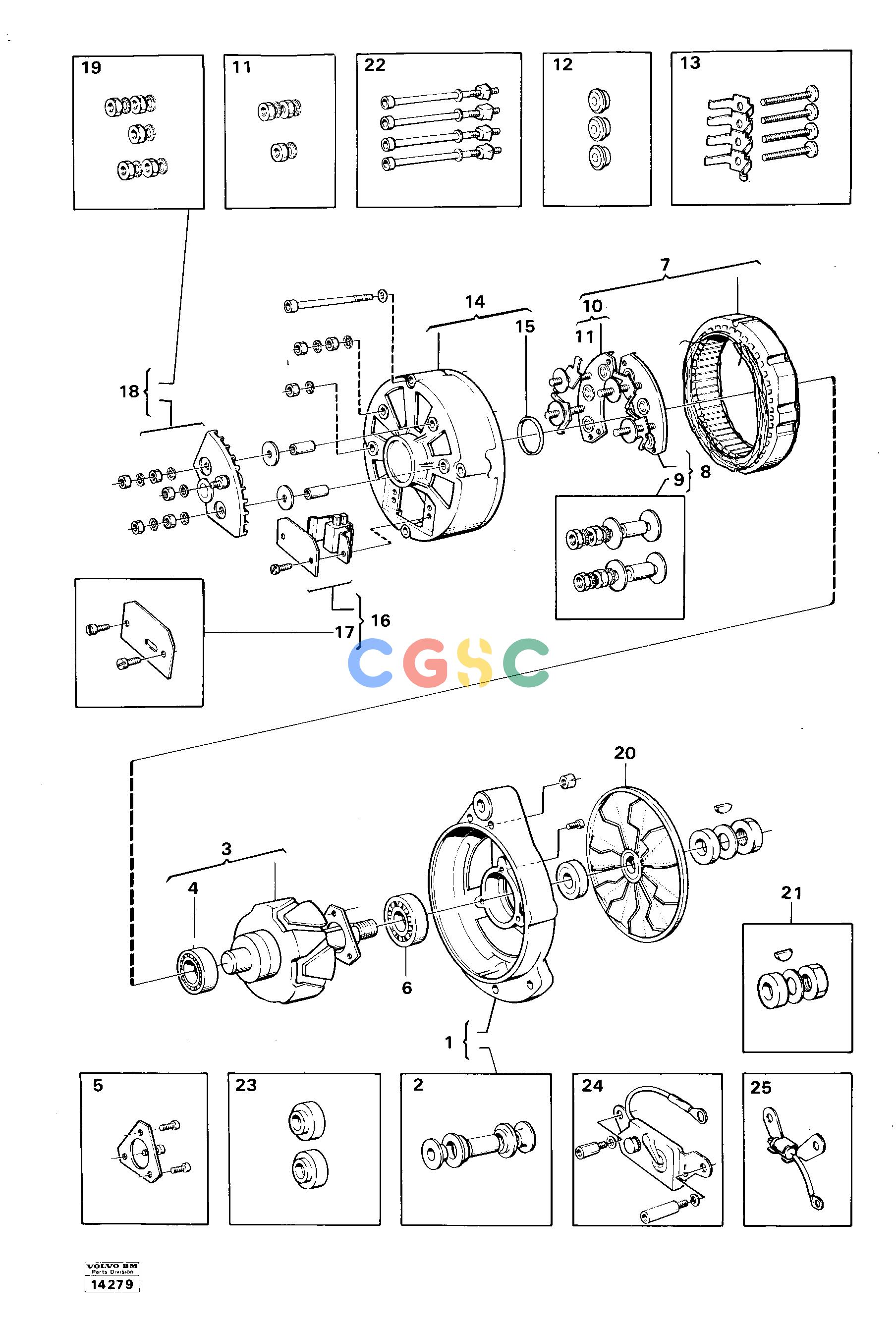

沃尔沃零件查询861 Alternator 99002861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
287 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE7181797
|
[0001] |
Ball bearing
|
BAKRE/REAR
|
| 5. |
VOE7273514
|
[0001] |
Cover washer
|
|
| 6. |
VOE181875
|
[0001] |
Ball bearing
|
FRÄMRE/FRONT
|
| 7. |
VOE7461225
|
[0001] |
Stator
|
|
| 8. |
VOE7460131
|
[0001] |
Diode bridge
|
+)
|
| |
VOE4780530
|
[0001] |
Alternator
|
|
| 9. |
VOE7273512
|
[0001] |
Screw
|
|
| 10. |
VOE1207430
|
[0001] |
Diode bridge
|
-)
|
| 11. |
VOE273513
|
[0001] |
Small parts kit
|
|
| 12. |
VOE7273506
|
[0001] |
Diode
|
+)
|
| |
VOE7273507
|
[0001] |
Diode
|
-)
|
| 13. |
VOE827568
|
[0001] |
Small parts set
|
|
| 14. |
VOE7460415
|
[0001] |
None
|
BAKRE/REAR
|
| 15. |
VOE7480651
|
[0001] |
O-ring
|
|
| 16. |
VOE7460133
|
[0001] |
Brush retainer
|
|
| 17. |
VOE7273508
|
[0001] |
Small parts set
|
|
| 1. |
VOE1517035
|
[0001] |
End plate
|
FRÄMRE/FRONT
|
| 18. |
VOE7460134
|
[0001] |
Diode
|
|
| 19. |
VOE7273509
|
[0001] |
Small parts kit
|
|
| 20. |
VOE4760135
|
[0001] |
None
|
|
| 21. |
VOE7419514
|
[0001] |
Small parts kit
|
|
| 22. |
VOE3277463
|
[0001] |
Screw Kit
|
|
| 23. |
VOE6643913
|
[0001] |
Slip ring
|
|
| 24. |
VOE1500582
|
[0001] |
Diode
|
|
| 25. |
VOE1517046
|
[0001] |
Capacitor
|
|
| 2. |
VOE840634
|
[0001] |
Vibration damper
|
|
| 3. |
VOE7461226
|
[0001] |
Rotor
|
|
