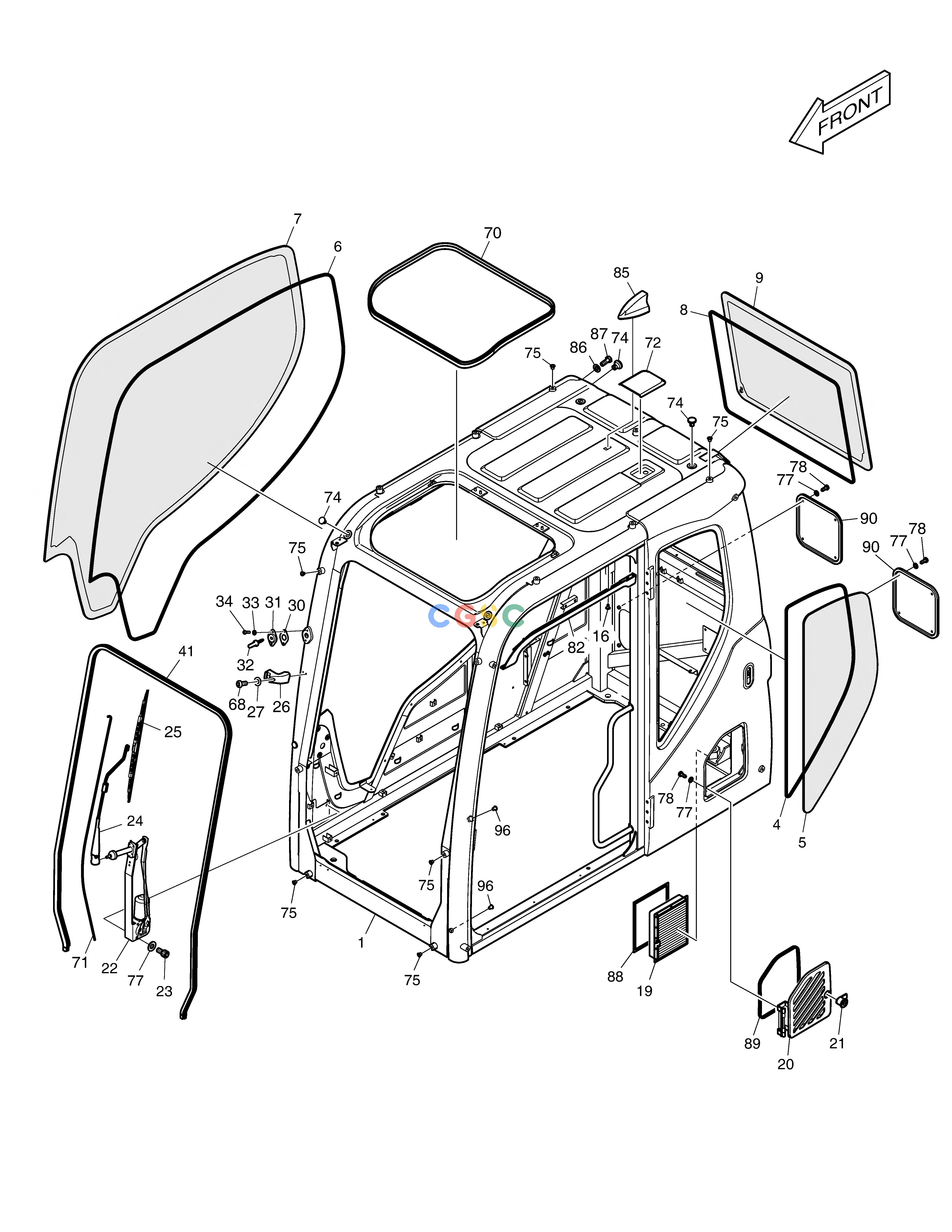

斗山零件查询CABIN(1) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
269 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-00344L
|
[1] |
|
|
| 1. |
160604-00075A
|
[1] |
|
|
| 16. |
2120-2166D53
|
[3] |
. SCREW
|
|
| 19. |
400402-00005
|
[1] |
|
|
| 20. |
220204-00036G
|
[1] |
|
|
| 21. |
K1006160
|
[1] |
CYLINDER;KEY
|
|
| 22. |
300512-00010
|
[1] |
MOTOR,WIPER
|
|
| 23. |
S2208561
|
[3] |
BOLT
|
|
| 24. |
300704-00006
|
[1] |
|
|
| 25. |
220202-00009
|
[1] |
|
|
| 26. |
110958-00371
|
[1] |
|
|
| 27. |
S5000213
|
[2] |
. WASHER
|
|
| 30. |
161-00598A
|
[1] |
RUBBER,WASHER NOZZLE
|
|
| 31. |
621-02837A
|
[1] |
COVER,WASHER NOZZLE
|
|
| 32. |
554-00005
|
[1] |
NOZZLE
|
|
| 33. |
2114-1898D13
|
[2] |
WASHER
|
|
| 34. |
2120-2166D33
|
[2] |
SCREW M4X0.7X10
|
|
| 4. |
K1057517
|
[1] |
|
|
| 41. |
101588-00017A
|
[1] |
|
|
| 5. |
500119-00204
|
[1] |
|
|
| 6. |
K1057521
|
[1] |
|
|
| 68. |
S3450863
|
[2] |
SCREW
|
|
| 7. |
K1057520
|
[1] |
|
|
| 70. |
K1057058
|
[1] |
|
|
| 71. |
2185-1660
|
[1] |
HOSE
|
|
| 72. |
220204-00200
|
[1] |
|
|
| 74. |
2160-1310
|
[5] |
BUSHING,RUBBER
|
|
| 75. |
110910-00077
|
[14] |
CAP
|
|
| 77. |
2114-1898D14
|
[13] |
WASHER
|
|
| 78. |
2120-2166D5
|
[10] |
BOLT
|
|
| 8. |
K1057519
|
[1] |
|
|
| 82. |
220204-00014C
|
[1] |
|
|
| 85. |
300703-00009A
|
[1] |
|
|
| 86. |
2114-1898D17
|
[1] |
WASHER
|
|
| 87. |
2120-2166D27
|
[1] |
BOLT
|
|
| 88. |
180102-00058A
|
[1] |
|
|
| 89. |
101588-00016
|
[1] |
|
|
| 9. |
500119-00182
|
[1] |
|
|
| 90. |
110508-00526A
|
[2] |
|
|
| 96. |
110910-00038A
|
[2] |
CAP
|
|
