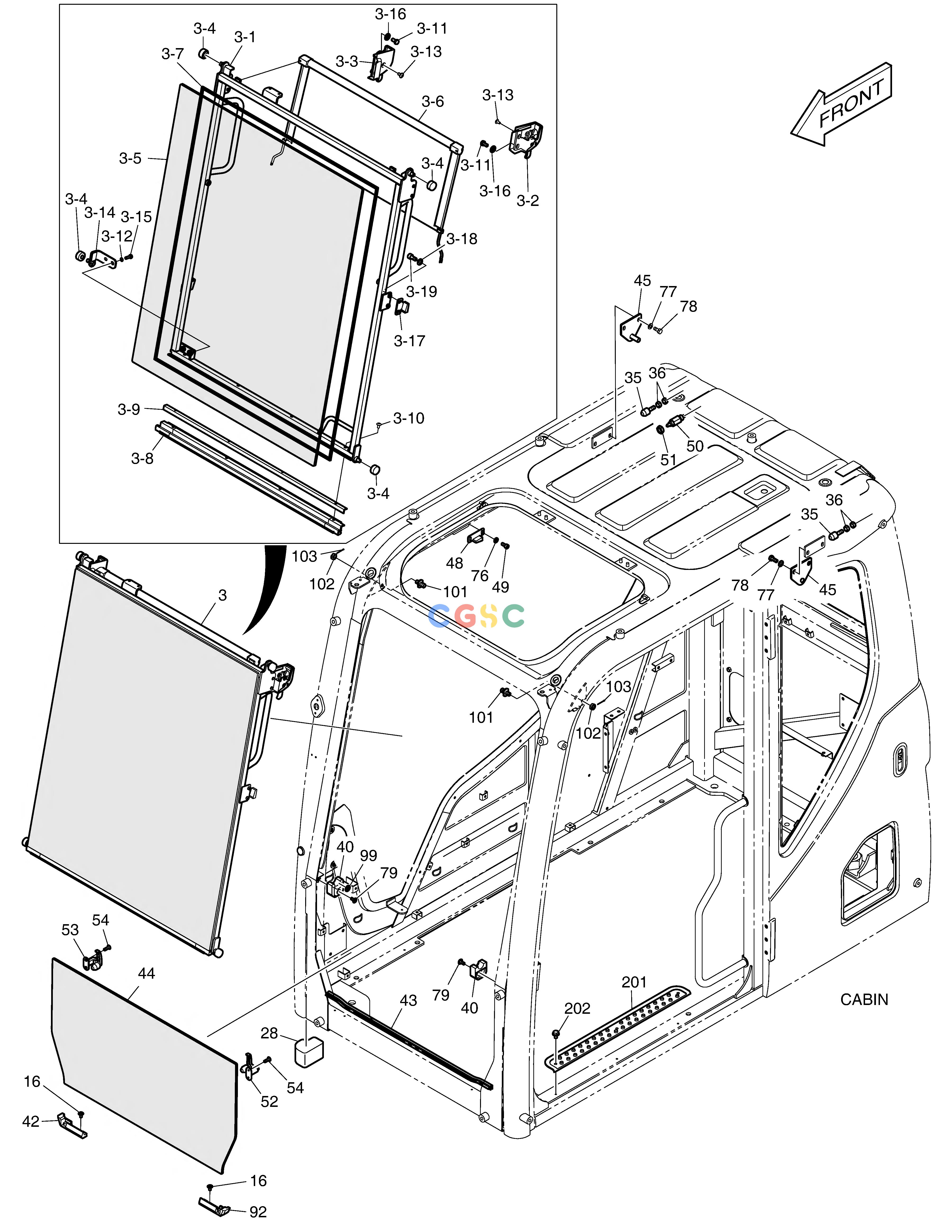

斗山零件查询CABIN(2) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
788 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-00344L
|
[1] |
|
|
| 101. |
101583-00043B
|
[2] |
|
|
| 102. |
120314-00003
|
[2] |
|
|
| 103. |
S5735371
|
[2] |
PIN;SPLIT
|
|
| 16. |
2120-2166D53
|
[4] |
. SCREW
|
|
| 201. |
110955-00048
|
[1] |
|
|
| 202. |
S2004366
|
[3] |
|
|
| 28. |
K1057869
|
[1] |
|
|
| 3. |
220205-00025H
|
[1] |
|
|
| 3-1. |
160609-00118B
|
[1] |
|
|
| 3-10. |
2120-2166D53
|
[4] |
. SCREW
|
|
| 3-11. |
2120-2166D56
|
[4] |
BOLT M10X1.5X16
|
|
| 3-12. |
2114-1898D2
|
[2] |
WASHER
|
|
| 3-13. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 3-14. |
110406-00337B
|
[1] |
|
|
| 3-15. |
2120-2166D16
|
[2] |
BOLT
|
|
| 3-16. |
2114-1898D15
|
[4] |
WASHER
|
|
| 3-17. |
110956-00028
|
[1] |
|
|
| 3-18. |
2114-1898D3
|
[2] |
WASHER
|
|
| 3-19. |
S2204566
|
[2] |
BOLT
|
|
| 3-2. |
100601-00023
|
[1] |
. CATCH ASSY,SLIDE(L.H)
|
|
| 3-3. |
100601-00024
|
[1] |
. CATCH ASSY,SLIDE(R.H)
|
|
| 3-4. |
900131-00014A
|
[4] |
. ROLLER,SLIDE DOOR
|
|
| 3-5. |
500119-00064
|
[1] |
|
|
| 3-6. |
220208-00002A
|
[1] |
|
|
| 3-7. |
180313-00003A
|
[1] |
|
|
| 3-8. |
101588-00011A
|
[1] |
|
|
| 3-9. |
250105-00066B
|
[1] |
|
|
| 35. |
K1057644
|
[2] |
|
|
| 36. |
2121-1311D2
|
[4] |
NUT
|
|
| 40. |
110956-00029A
|
[2] |
|
|
| 42. |
110956-00030A
|
[1] |
|
|
| 43. |
101588-00015A
|
[1] |
|
|
| 44. |
500119-00063C
|
[1] |
|
|
| 45. |
K1026121A
|
[2] |
STRIKER
|
|
| 48. |
161-00619B
|
[1] |
STOPPER
|
|
| 49. |
S2204566
|
[2] |
BOLT
|
|
| 50. |
549-00086
|
[1] |
SWITCH
|
|
| 51. |
S4034833
|
[1] |
NUT
|
|
| 52. |
100601-00013
|
[1] |
|
|
| 53. |
100601-00014
|
[1] |
|
|
| 54. |
S3452843
|
[4] |
SCREW M5X0.0X14
|
|
| 76. |
2114-1898D3
|
[2] |
WASHER
|
|
| 77. |
2114-1898D14
|
[4] |
WASHER
|
|
| 78. |
2120-2166D5
|
[4] |
BOLT
|
|
| 79. |
2120-2166D10
|
[2] |
SCREW
|
|
| 92. |
110956-00031A
|
[1] |
|
|
| 99. |
120808-00157
|
[1] |
|
|
