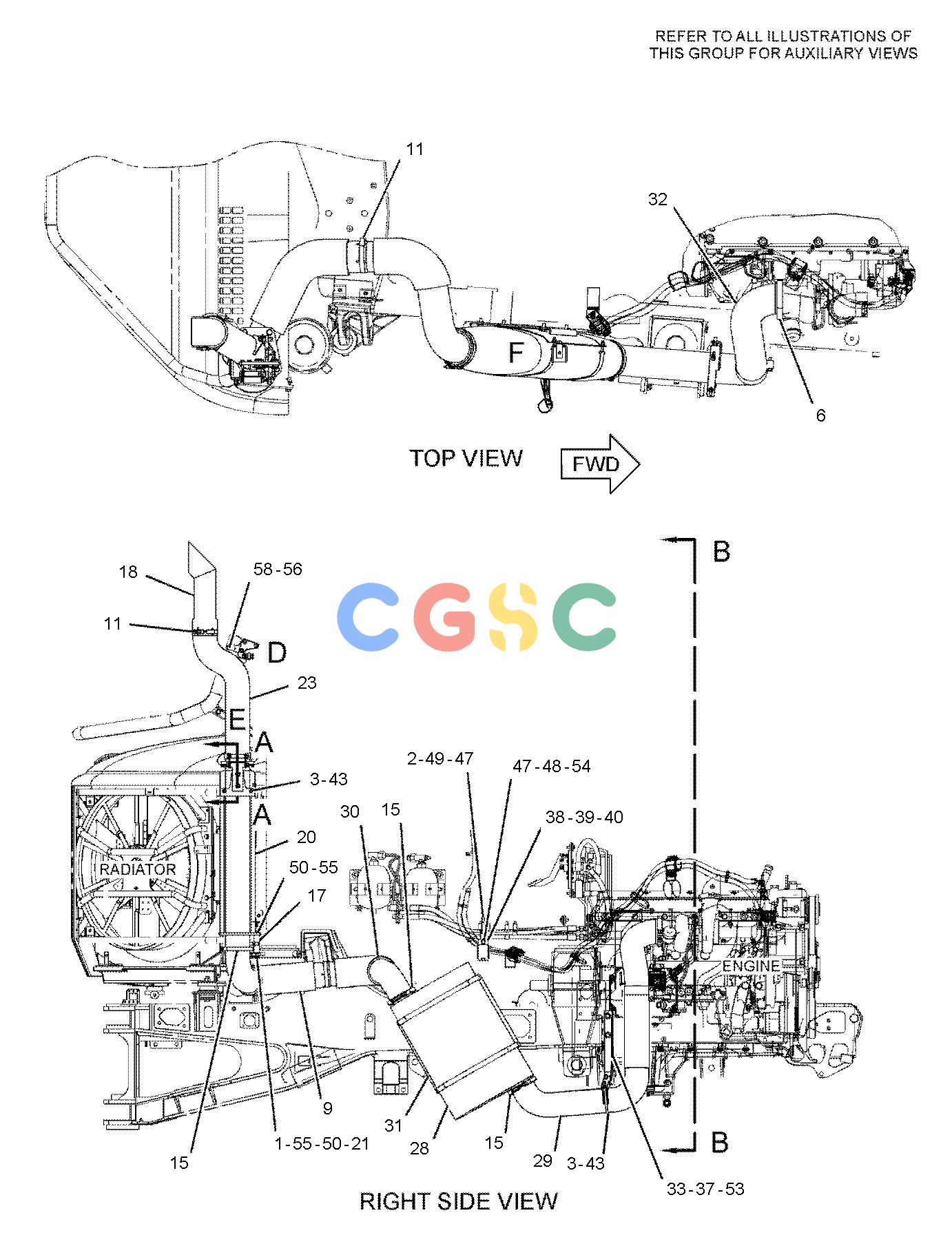

卡特零件查询（725） 279-4913: MUFFLER GP
广数供应链运营团队, 14 02月, 2025，浏览：
1001 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4B-5272B | [3] | WASHER(12.7X31.7X2-MM THK) | |
| 2. | 6U-2703 | [1] | BRACKET-ANGLE | |
| 3. | 6U-5219 | [2] | U-CLAMP AS | |
| 4. | 8C-5608C | [3] | SPACER(6.5X9.5X25.4-MM THK) | |
| 5. | 8T-6431 | [2] | ROD END | |
| 6. | 9N-1941 | [1] | CLAMP-V BAND | |
| 7. | 9X-9896C | [6] | MOUNT(ISOLATION) | |
| 8. | 142-0485M | [2] | NUT(M10X1.5-THD) | |
| 9. | 173-2328 | [1] | PIPE AS | |
| 10. | 175-9079M | [1] | ROD-LINK | |
| 11. | 176-8234 | [2] | CLAMP | |
| 12. | 190-5341 | [1] | CLAMP | |
| 13. | 197-4834 | [1] | SEAL | |
| 14. | 197-4835 | [1] | PLATE-RETAINER | |
| 15. | 202-1838 | [3] | CLAMP-V BAND | |
| 16. | 205-3625 | [1] | PLATE AS | |
| 17. | 211-2326 | [3] | BOSS | |
| 18. | 211-4635 | [1] | PIPE-EXHAUST | |
| 19. | 226-2659B | [2] | WASHER-BELLEVILLE | |
| 20. | 232-4836 | [1] | SUPPORT AS | |
| 21. | 249-2844 | [3] | WASHER(12.7X31.7X1-MM THK) | |
| 22. | 264-3334C | [1] | PLATE AS | |
| | 175-4782 | [1] | BOSS | |
| 23. | 264-3336C | [1] | PIPE GP-EXHAUST | |
| 24. | 264-6226C | [1] | PLATE-MOUNTING | |
| 25. | 264-7477C | [1] | PLATE-MOUNTING | |
| 26. | 264-8816C | [4] | SPACER(10.5X16X8.5-MM THK) | |
| 27. | 276-5176 | [2] | STRAP-MUFFLER | |
| 28. | 279-4914 | [1] | SILENCER-EXHAUST | |
| 29. | 279-4915 | [1] | TUBE AS | |
| 30. | 279-4917 | [1] | TUBE AS | |
| 31. | 279-4918 | [1] | BRACKET AS | |
| | 279-5654 | [1] | PLATE-SUPPORT | |
| 32. | 279-5660 | [1] | TUBE AS | |
| 33. | 279-8075 | [1] | PLATE | |
| 34. | 287-0310C | [1] | SPACER(11X20X70-MM THK) | |
| 35. | 5C-2890CM | [3] | NUT(M6X1-THD) | |
| 36. | 5C-7261CM | [4] | NUT(M8X1.25-THD) | |
| 37. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 38. | 5P-7470 | [1] | CLIP(SLOT) | |
| 39. | 5P-7471 | [1] | CLIP(TAB) | |
| 40. | 5P-8182 | [1] | GROMMET(46-MM ID) | |
| 41. | 6V-7687M | [1] | LOCKNUT(M12X1.75-THD) | |
| 42. | 6V-7744M | [1] | LOCKNUT(M10X1.5-THD) | |
| 43. | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 44. | 7X-2550M | [1] | BOLT(M12X1.75X110-MM) | |
| 45. | 7X-7729C | [7] | WASHER(11X25X3-MM THK) | |
| 46. | 8C-8451CM | [3] | BOLT(M6X1X40-MM) | |
| 47. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 48. | 8T-4133CM | [3] | NUT(M10X1.5-THD) | |
| 49. | 8T-4172M | [1] | BOLT(M10X1.5X80-MM) | |
| 50. | 8T-4184M | [6] | BOLT(M12X1.75X45-MM) | |
| 51. | 8T-4185CM | [2] | BOLT(M10X1.5X50-MM) | |
| 52. | 8T-4189CM | [6] | BOLT(M8X1.25X20-MM) | |
| 53. | 8T-4192M | [6] | BOLT(M12X1.75X25-MM) | |
| 54. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 55. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 56. | 8T-4224C | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 57. | 8T-6685M | [1] | BOLT(M10X1.5X110-MM) | |
| 58. | 8T-7547CM | [2] | BOLT(M8X1.25X30-MM) | |
| 59. | 9X-6165C | [6] | WASHER(6.5X22X2.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
