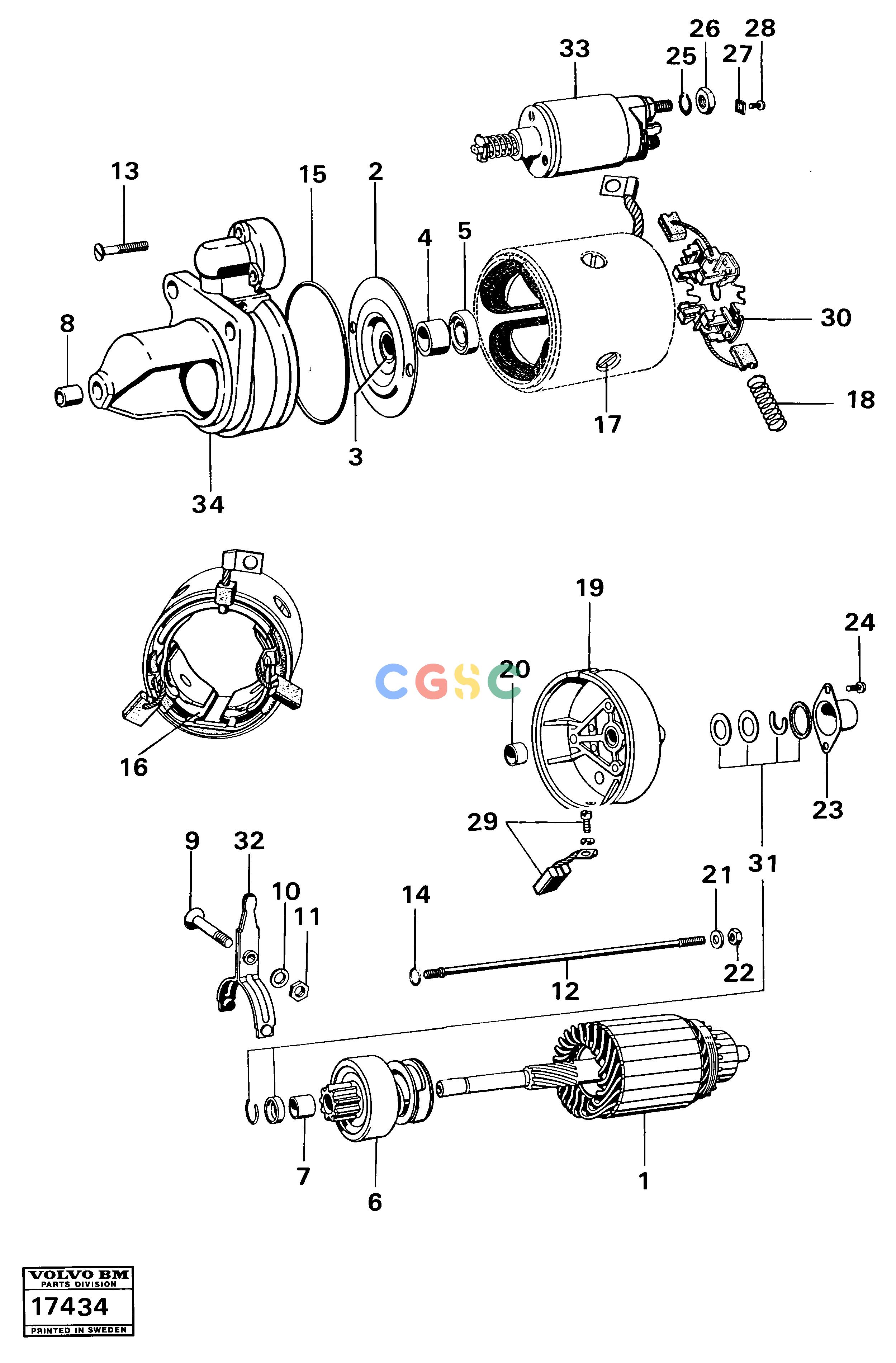

沃尔沃零件查询861 Starter motor mo 40922 -861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1013 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE6210770
|
[0001] |
Center Bearing
|
|
| 5. |
VOE6211931
|
[0001] |
Sealing ring
|
|
| 6. |
VOE6211932
|
[0001] |
Drive Gear
|
|
| 7. |
VOE6210772
|
[0002] |
Bushing
|
|
| 8. |
VOE7048109
|
[0001] |
Bushing
|
|
| |
VOE4880692
|
[0001] |
Starter motor
|
|
| 9. |
VOE11700731
|
[0001] |
Screw
|
|
| 10. |
VOE947620
|
[0001] |
Gasket
|
|
| 11. |
VOE955782
|
[0001] |
Hexagon nut
|
|
| 12. |
VOE11999379
|
[0002] |
Stud
|
|
| 13. |
VOE6212461
|
[0003] |
Screw
|
|
| 14. |
VOE6211935
|
[0002] |
O-ring
|
|
| 15. |
VOE244324
|
[0001] |
O-ring
|
|
| 16. |
VOE6213607
|
[0001] |
Field winding kit
|
|
| 17. |
VOE11998701
|
[0004] |
Screw
|
|
| 18. |
VOE6211488
|
[0004] |
Spring
|
|
| 1. |
VOE11701463
|
[0001] |
Rotor
|
|
| 19. |
VOE1257684
|
[0001] |
Brg Arrangement
|
|
| 20. |
VOE6210777
|
[0001] |
Bushing
|
|
| 21. |
VOE13955894
|
[0002] |
Washer
|
|
| 22. |
VOE13955781
|
[0002] |
Nut
|
|
| 23. |
VOE829705
|
[0001] |
Cover
|
|
| 24. |
VOE13956078
|
[0002] |
Screw
|
|
| 25. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 26. |
VOE955791
|
[0002] |
Hexagon nut
|
|
| 27. |
VOE858689
|
[0001] |
Plate
|
|
| 28. |
VOE956058
|
[0001] |
Cross recessed screw
|
|
| 2. |
VOE6212478
|
[0001] |
Center Bearing
|
|
| 29. |
VOE6211876
|
[0001] |
Carbon brush
|
|
| 30. |
VOE11999937
|
[0001] |
Brush retainer
|
|
| 31. |
VOE829707
|
[0001] |
Repair kit
|
|
| 32. |
VOE6645020
|
[0001] |
Arm
|
|
| 33. |
VOE11992391
|
[0001] |
Magnet
|
|
| 34. |
VOE6211937
|
[0001] |
Drive End Ass.
|
|
| 3. |
VOE6211929
|
[0001] |
Bushing
|
|
