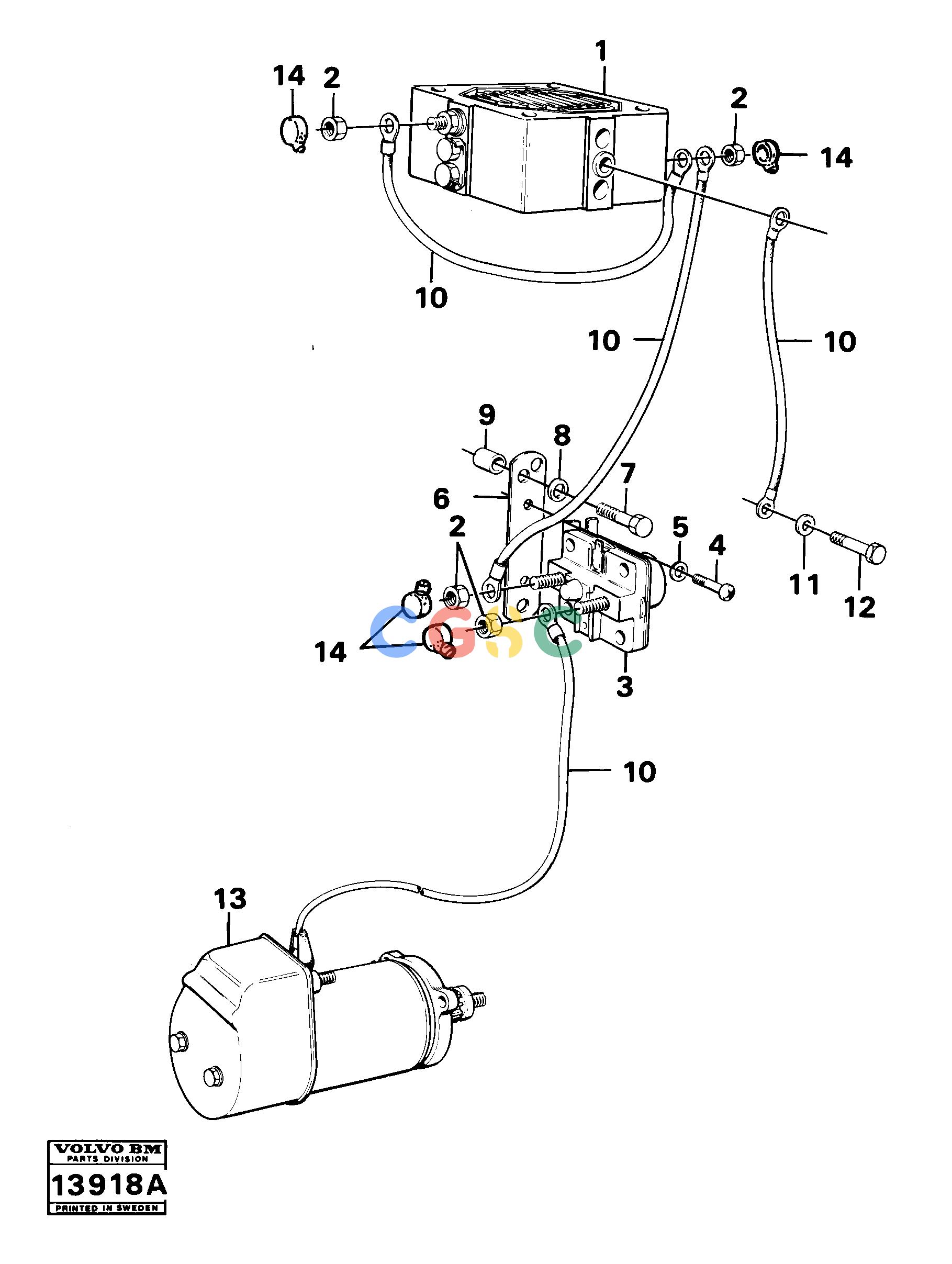

沃尔沃零件查询861 Electrical preheater 98981 (6374) 99823861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
VOE955782
|
[0004] |
Hexagon nut
|
SER NO -58568
|
| |
VOE955782
|
[0003] |
Hexagon nut
|
SER NO 58569 -
|
| 3. |
VOE1577375
|
[0001] |
Relay
|
|
| 4. |
VOE955243
|
[0002] |
Hexagon screw
|
|
| 5. |
VOE13940090
|
[0004] |
Washer
|
|
| 1. |
VOE471203
|
[0001] |
Starter element
|
|
| 6. |
VOE465326
|
[0001] |
Bracket
|
|
| |
|
|
None
|
SER NO -58568
|
| 7. |
VOE955530
|
[0002] |
Hexagon screw
|
|
| 8. |
VOE13955894
|
[0002] |
Washer
|
|
| 9. |
VOE465327
|
[0002] |
Spacer sleeve
|
|
| 10. |
|
[0004] |
Cable
|
|
| |
|
|
None
|
SER NO -58568
|
| |
|
[0001] |
Cable
|
|
| |
|
|
None
|
SER NO 58569-
|
| 11. |
VOE955893
|
[0001] |
Plain washer
|
SER NO -58568
|
| 12. |
VOE955513
|
[0001] |
Hexagon screw
|
SER NO -58568
|
| |
|
|
None
|
SEE GROUP 21
|
| 13. |
|
[0001] |
Starter motor
|
|
| 14. |
VOE673580
|
[0004] |
Adapter
|
|
| |
VOE673580
|
[0003] |
Adapter
|
|
| |
VOE471203
|
[0001] |
Starter element
|
SER NO 58569-
|
| |
|
|
None
|
SEE GROUP 21
|
