卡特零件查询（725） 190-7353: PIPE GP-EXHAUST
广数供应链运营团队, 14 02月, 2025，浏览：
994 次

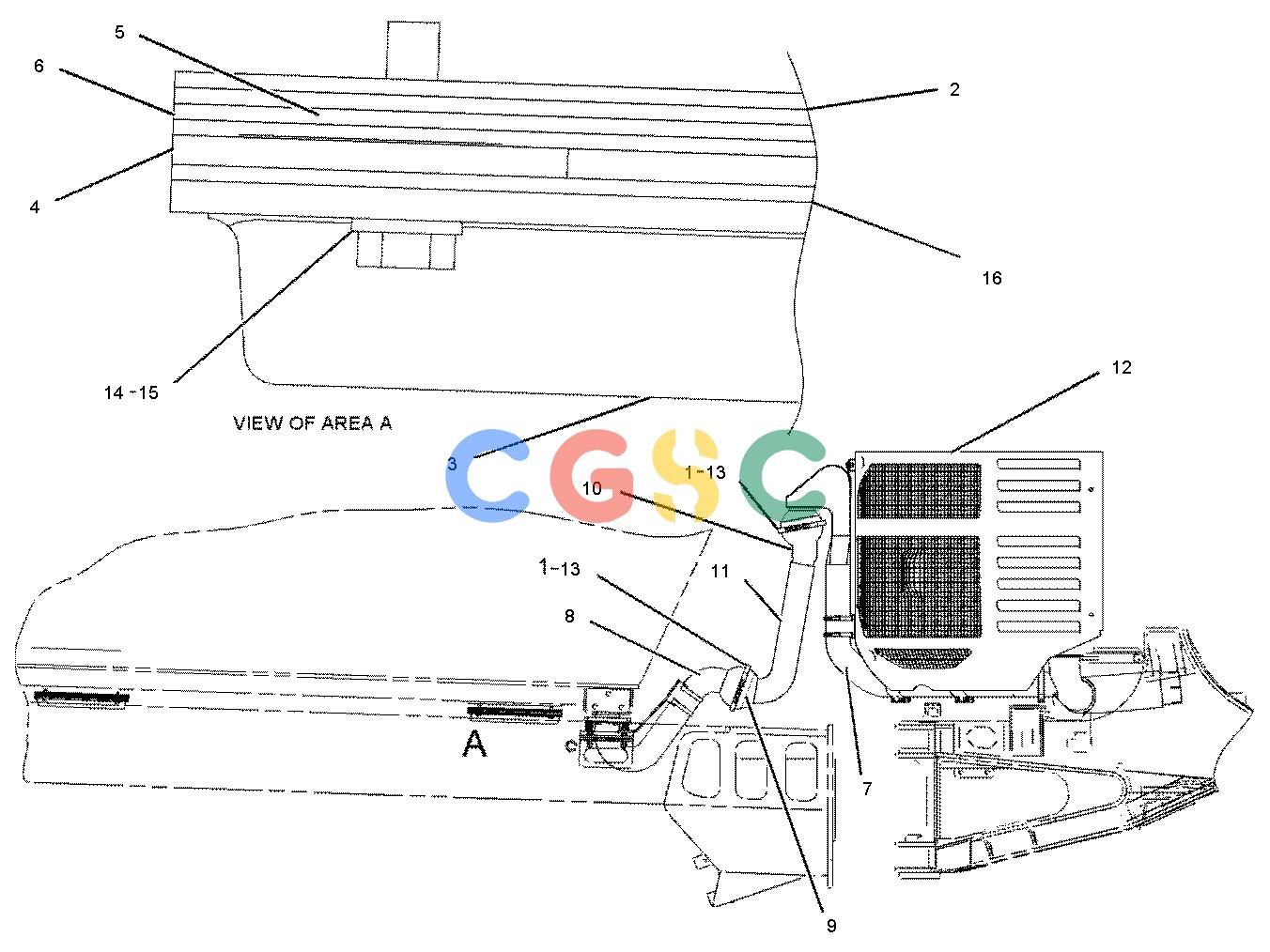

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-7477 | [2] | SEAL | |
| 2. | 142-0534B | [4] | SHIM(3-MM THK) | |
| 3. | 145-7755 | [4] | BUFFER-RUBBER | |
| 4. | 146-3027B | [4] | SHIM(6-MM THK) | |
| 5. | 147-6513 | [16] | SPACER(12X25X5.6-MM THK) | |
| 6. | 147-6514 | [8] | GASKET | |
| 7. | 149-0048Y | [1] | PIPE GP-EXHAUST(FRONT) | |
| 8. | 149-0148Y | [1] | PIPE GP-EXHAUST(REAR) | |
| 9. | 186-2225 | [1] | RING-RETAINING | |
| 10. | 186-3104 | [1] | TUBE AS | |
| 11. | 186-3105 | [1] | TUBE AS | |
| 12. | 196-5661Y | [1] | GUARD GP-RADIATOR | |
| 13. | 202-4122 | [2] | CLAMP-V BAND | |
| 14. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4186M | [16] | BOLT(M10X1.5X40-MM) | |
| 16. | 142-0535 | [4] | SHIM(8-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
