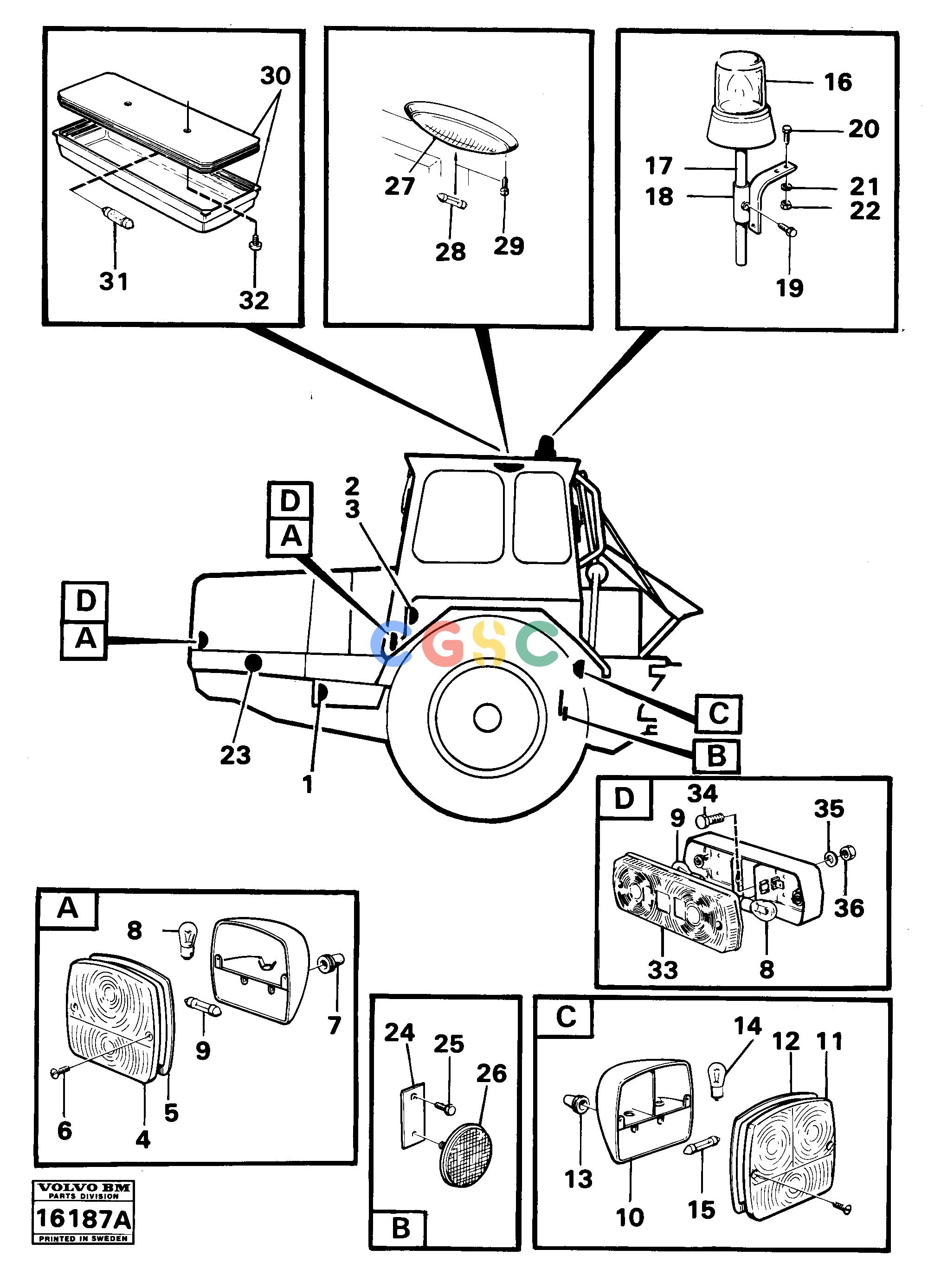

沃尔沃零件查询861 Lighting,tractor861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
976 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE944265
|
[0002] |
Bulb
|
|
| |
VOE11988638
|
[0004] |
Position lamp
|
SER NO - 59471
|
| 4. |
VOE6642016
|
[0004] |
Lens
|
SER NO - 59471
|
| 5. |
VOE6634124
|
[0004] |
Gasket
|
SER NO - 59471
|
| 6. |
VOE956275
|
[0008] |
Cross recessed sunk screw
|
SER NO - 59471
|
| 1. |
VOE241067
|
[0002] |
Headlamp insert
|
|
| 7. |
VOE6634125
|
[0004] |
Gasket
|
SER NO - 59471
|
| |
|
|
None
|
|
| 8. |
VOE965826
|
[0004] |
Bulb
|
21W SER NO - 59471
|
| |
VOE965828
|
[0004] |
Bulb
|
SER NO 59472 -
|
| 9. |
VOE965831
|
[0004] |
Bulb
|
5W
|
| |
VOE1234903
|
[0002] |
Headlamp insert
|
|
| |
VOE4803330
|
[0001] |
Tail lamp
|
V
|
| |
VOE4780074
|
[0001] |
Tail lamp
|
H
|
| 10. |
|
[0001] |
Housing
|
V
|
| |
|
[0001] |
Housing
|
H
|
| 11. |
VOE6634512
|
[0001] |
Lens
|
V
|
| |
VOE6634511
|
[0001] |
Lens
|
H
|
| 12. |
VOE6634124
|
[0002] |
Gasket
|
|
| 2. |
VOE4737961
|
[0002] |
Plate
|
|
| 13. |
VOE6634125
|
[0002] |
Gasket
|
|
| 14. |
VOE965826
|
[0004] |
Bulb
|
21W
|
| 15. |
VOE965831
|
[0002] |
Bulb
|
5W
|
| 16. |
VOE4785841
|
[0001] |
Lamp
|
ERS AV 6212175
|
| |
|
|
None
|
|
| |
|
|
None
|
|
| |
VOE6212175
|
[0001] |
Lamp
|
12V
|
| |
VOE6212166
|
[0001] |
Lens
|
|
| |
VOE925058
|
[0002] |
O-ring
|
|
| |
|
|
None
|
|
| 17. |
VOE6645871
|
[0001] |
Bracket
|
|
| 18. |
VOE6648890
|
[0001] |
Anchorage
|
|
| 19. |
VOE955269
|
[0001] |
Hexagon screw
|
|
| 20. |
VOE955273
|
[0005] |
Hexagon screw
|
|
| 21. |
VOE955892
|
[0010] |
Plain washer
|
|
| |
VOE6648884
|
[0002] |
Spotlight
|
|
| 22. |
VOE13963105
|
[0005] |
Lock nut
|
|
| 23. |
VOE4780974
|
[0002] |
Side marking reflector
|
|
| 24. |
VOE6619789
|
[0002] |
Attaching Plate
|
|
| 25. |
VOE955602
|
[0002] |
Hexagon screw
|
|
| 26. |
VOE4803337
|
[0002] |
Reflecting sticker
|
|
| 27. |
VOE662109
|
[0001] |
Courtesy lamp
|
SER NO - 59471
|
| 28. |
VOE965831
|
[0001] |
Bulb
|
SER NO - 59471
|
| 29. |
VOE969278
|
[0002] |
Six point socket screw
|
SER NO - 59471
|
| 30. |
VOE1586223
|
[0001] |
Lamp
|
SER NO 59472 -
|
| 31. |
VOE182039
|
[0002] |
Bulb
|
SER NO 59472 -
|
| |
|
|
None
|
|
| 32. |
VOE958239
|
[0002] |
Cross recessed screw
|
SER NO 59472 -
|
| |
VOE4803565
|
[0004] |
Lamp
|
SER NO 59472 -
|
| 33. |
VOE6212891
|
[0004] |
Lens
|
SER NO 59472 -
|
| 34. |
VOE13955272
|
[0008] |
Screw
|
SER NO 59472 -
|
| 35. |
VOE13949607
|
[0008] |
Washer
|
SER NO 59472 -
|
| 36. |
VOE13955781
|
[0008] |
Nut
|
SER NO 59472 -
|
