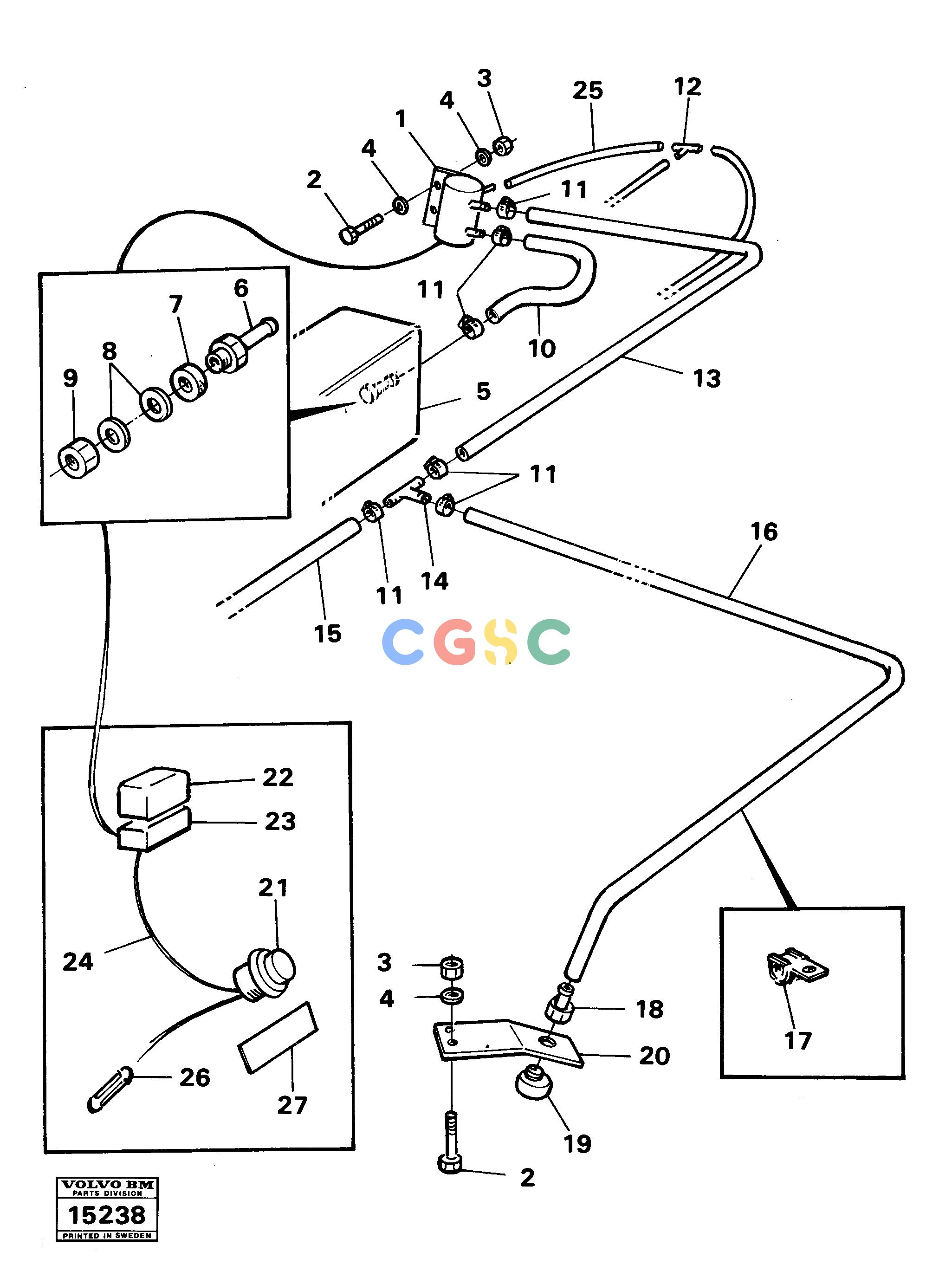

沃尔沃零件查询861 Headlight washer 98976 (6362)861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
362 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE13940090
|
[0014] |
Washer
|
|
| 5. |
|
[0001] |
Reservoir
|
|
| 6. |
|
[0001] |
Union
|
|
| 7. |
|
[0001] |
Washer
|
|
| 8. |
VOE13947622
|
[0002] |
Plane gasket
|
|
| 1. |
VOE6643735
|
[0001] |
Fuel filling pump
|
|
| 9. |
|
[0001] |
Nipple
|
|
| 10. |
VOE6643737
|
[0500] |
Pressure hose
|
|
| 11. |
VOE943469
|
[0008] |
Hose clamp
|
|
| 12. |
VOE6643738
|
[0001] |
Cross Piece
|
|
| 13. |
VOE6643737
|
[0500] |
Pressure hose
|
|
| 14. |
VOE6643734
|
[0001] |
Cross Piece
|
|
| 15. |
VOE6643737
|
[0700] |
Pressure hose
|
|
| 16. |
VOE6643737
|
[2450] |
Pressure hose
|
|
| 17. |
VOE952629
|
[0002] |
Clamp
|
|
| 18. |
VOE6643739
|
[0002] |
Delivery valve
|
|
| |
VOE6643735
|
[0001] |
Engine
|
|
| 19. |
VOE6643742
|
[0002] |
Nozzle
|
|
| 20. |
|
[0002] |
Bracket
|
|
| 21. |
VOE843684
|
[0001] |
Switch
|
|
| |
VOE11000295
|
[0001] |
Housing
|
|
| |
|
|
None
|
SER NO - 59471
|
| 22. |
VOE6643744
|
[0001] |
Control Unit
|
|
| 23. |
VOE13946556
|
[0001] |
Relay socket
|
|
| |
VOE784981
|
[0001] |
Housing
|
|
| 24. |
VOE4861984
|
[0001] |
Cable harness
|
|
| 25. |
VOE943727
|
[0350] |
Hose
|
|
| 26. |
VOE13943905
|
[0001] |
Fuse
|
|
| |
VOE949401
|
[0002] |
Cable terminal
|
|
| 27. |
VOE4822019
|
[0001] |
Decal
|
SER NO - 59471
|
| 2. |
VOE955246
|
[0006] |
Hexagon screw
|
|
| 3. |
VOE13963104
|
[0006] |
Lock nut
|
|
