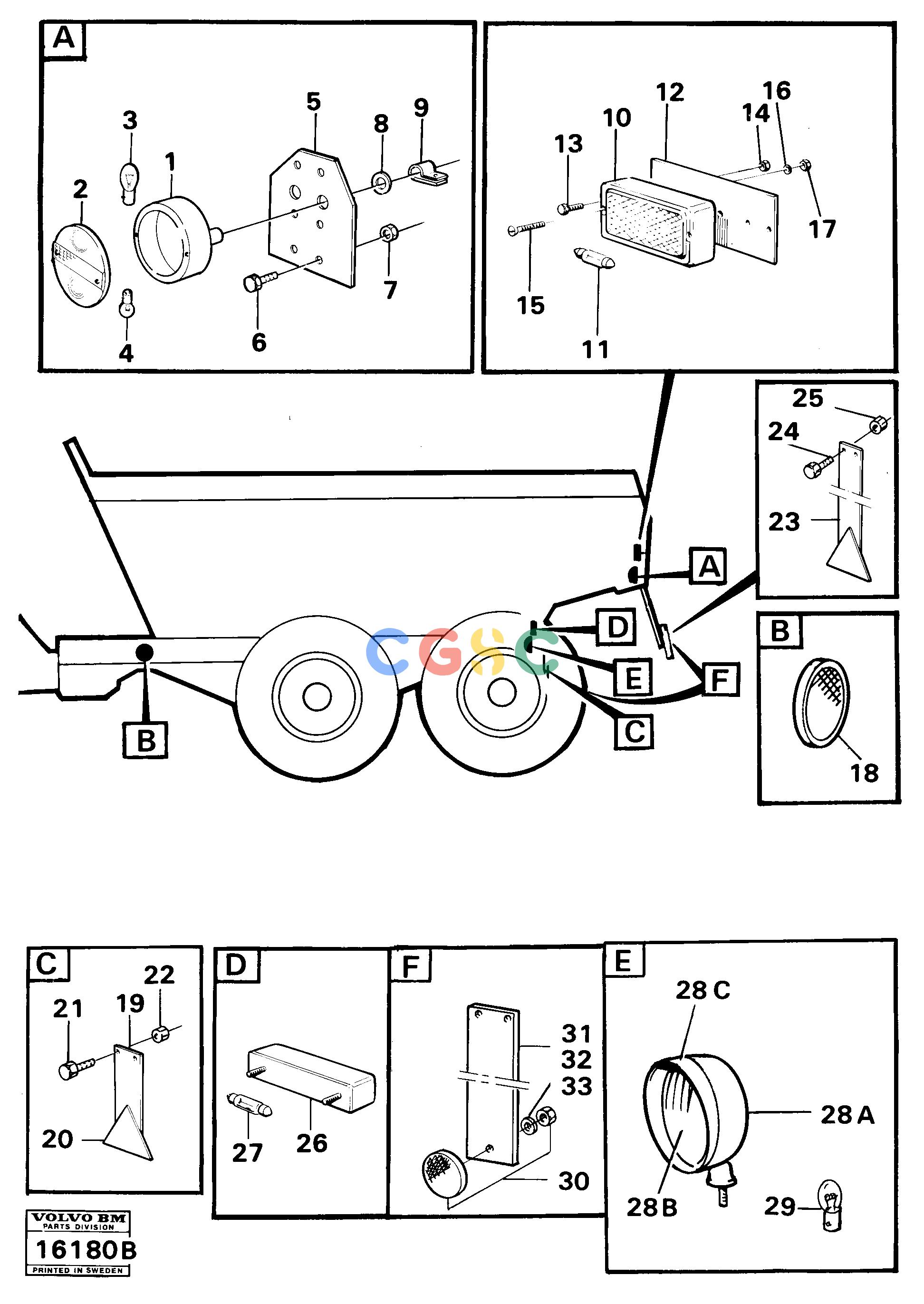

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4823543
|
[0002] |
Plate
|
|
| 6. |
VOE946934
|
[0008] |
Flange screw
|
|
| 7. |
VOE13949278
|
[0008] |
Flange lock nut
|
|
| 8. |
VOE60110304
|
[0002] |
Washer
|
|
| 9. |
VOE952625
|
[0002] |
Clamp
|
|
| 1. |
VOE4803218
|
[0002] |
Tail lamp
|
|
| |
VOE1576682
|
[0002] |
Side marking lamp
|
|
| 10. |
VOE1576684
|
[0002] |
Lens
|
|
| 11. |
VOE965831
|
[0002] |
Bulb
|
5 W
|
| 12. |
VOE4823544
|
[0001] |
Plate
|
|
| 13. |
VOE946934
|
[0004] |
Flange screw
|
|
| 14. |
VOE13949278
|
[0004] |
Flange lock nut
|
|
| 15. |
VOE956063
|
[0004] |
Cross recessed screw
|
|
| 16. |
VOE960137
|
[0004] |
Washer
|
|
| 17. |
VOE13963103
|
[0004] |
Lock nut
|
|
| 18. |
VOE4780974
|
[0002] |
Side marking reflector
|
|
| 2. |
VOE6211443
|
[0002] |
Lens
|
|
| 19. |
VOE4822900
|
[0002] |
Reflecting sticker
|
|
| 20. |
VOE6626622
|
[0001] |
Reflex
|
H
|
| 21. |
VOE946934
|
[0004] |
Flange screw
|
|
| 22. |
VOE13949278
|
[0004] |
Flange lock nut
|
|
| 23. |
VOE4822900
|
[0002] |
Reflecting sticker
|
|
| 24. |
VOE13947542
|
[0004] |
Screw
|
|
| 25. |
VOE13949278
|
[0004] |
Flange lock nut
|
|
| 26. |
VOE6612583
|
[0002] |
Lamp
|
|
| 3. |
VOE965826
|
[0004] |
Bulb
|
21W
|
| 27. |
VOE965831
|
[0002] |
Bulb
|
5 W
|
| 28A. |
VOE4928197
|
[0001] |
Headlamp
|
68 W
|
| 28B. |
VOE6210462
|
[0001] |
Insert
|
|
| 28C. |
VOE6210463
|
[0001] |
Rim
|
|
| 29. |
VOE944265
|
[0001] |
Bulb
|
|
| 30. |
VOE4803337
|
[0004] |
Reflecting sticker
|
|
| 31. |
VOE4860821
|
[0002] |
Belt
|
L=600
|
| 32. |
|
[0002] |
Rubber belt
|
L=300
|
| 33. |
VOE955893
|
[0004] |
Plain washer
|
|
| 4. |
VOE965828
|
[0002] |
Bulb
|
5 W
|
