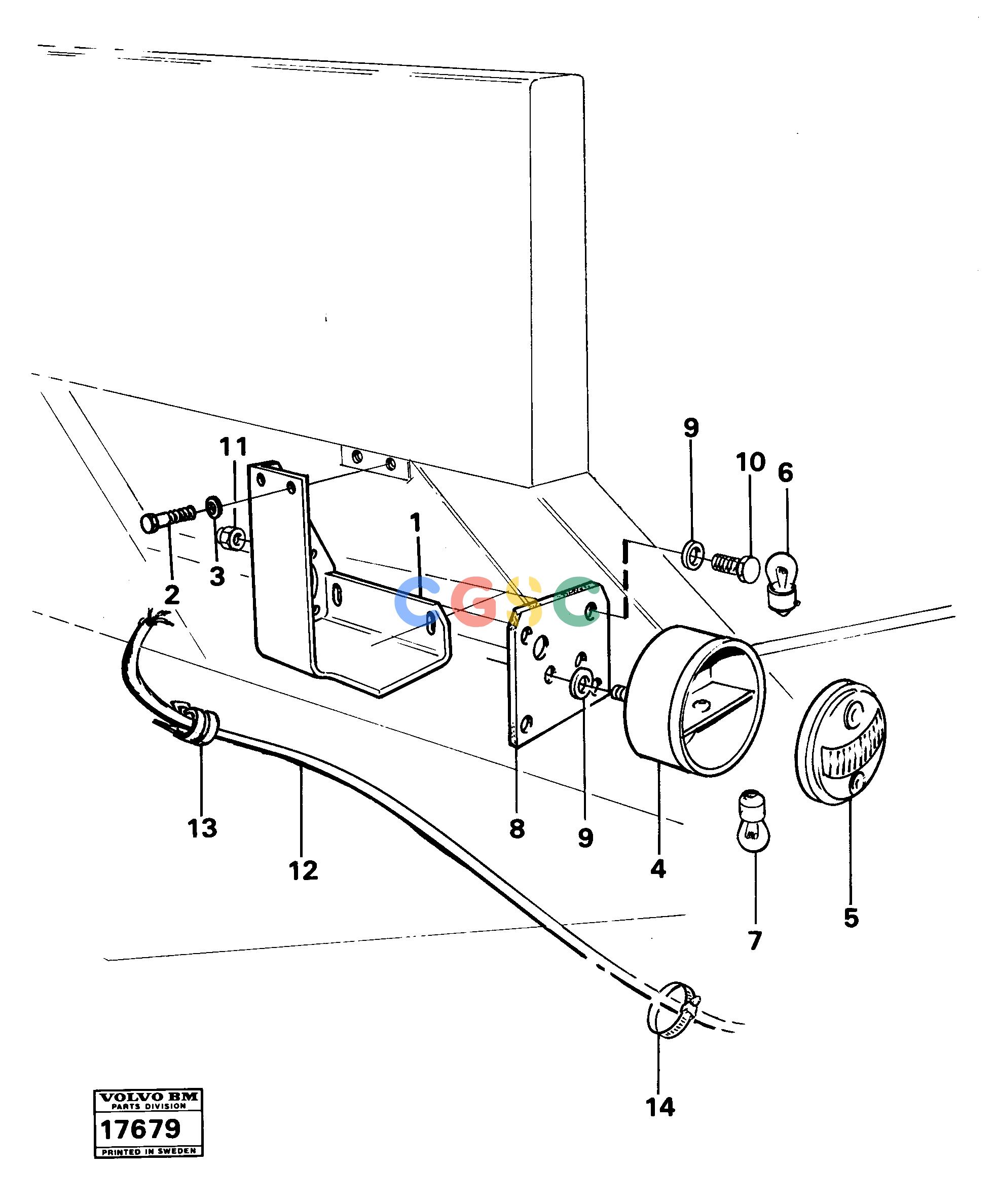

沃尔沃零件查询861 Tail light with bracket 6x6861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
536 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4803218
|
[0002] |
Tail lamp
|
|
| 5. |
VOE6211443
|
[0002] |
Lens
|
|
| 6. |
VOE965826
|
[0004] |
Bulb
|
12V - BA15S - 21W
|
| 7. |
VOE965828
|
[0002] |
Bulb
|
12V - BA15S - 5W
|
| 8. |
VOE4864963
|
[0002] |
Plate
|
|
| 1. |
VOE4940538
|
[0001] |
Bracket
|
V
|
| 9. |
VOE60110304
|
[0012] |
Washer
|
|
| 10. |
VOE946934
|
[0008] |
Flange screw
|
|
| 11. |
VOE13949278
|
[0008] |
Flange lock nut
|
|
| 12. |
|
[0001] |
Wire harness
|
V -
|
| |
|
[0001] |
Wire harness
|
H -
|
| 13. |
VOE952625
|
[0002] |
Clamp
|
|
| 14. |
VOE4881440
|
[0002] |
Cable tie
|
|
| |
VOE4940539
|
[0001] |
Bracket
|
H
|
| 2. |
VOE13949773
|
[0008] |
Flange screw
|
|
| 3. |
VOE4737842
|
[0008] |
Washer
|
|
