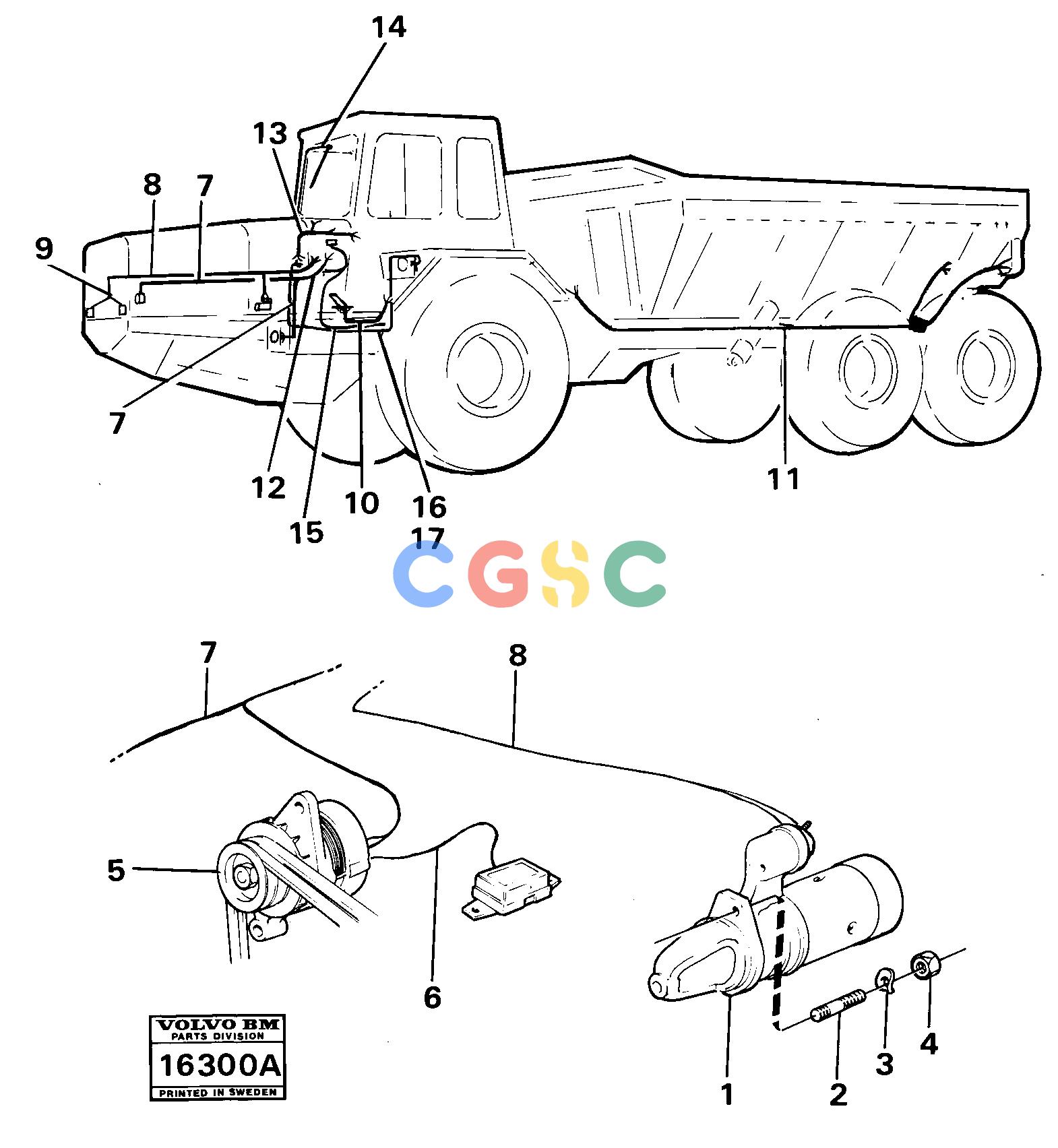

沃尔沃零件查询861 Electrical system861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
459 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0001] |
Alternator
|
|
| 6. |
VOE6648311
|
[0001] |
Cable harness
|
SER NO - 58781
|
| |
VOE6648311
|
[0001] |
Cable harness
|
SER NO 58782 -
|
| 7. |
VOE6648121
|
[0001] |
Cable harness
|
|
| 8. |
VOE4860003
|
[0001] |
Cable harness
|
|
| 9. |
VOE4861899
|
[0001] |
Cable harness
|
|
| |
|
|
None
|
SER NO - 59471
|
| |
VOE4861899
|
[0001] |
Cable harness
|
SER NO 59472 -
|
| 1. |
|
[0001] |
Starter motor
|
|
| 10. |
VOE4822838
|
[0001] |
Cable harness
|
|
| 11. |
VOE4822936
|
[0001] |
Cable harness
|
|
| 12. |
VOE6648114
|
[0001] |
Cable harness
|
|
| 13. |
VOE6643224
|
[0001] |
Cable harness
|
|
| |
VOE6648118
|
[0001] |
Cable harness
|
6)
|
| |
VOE4861561
|
[0001] |
Cable harness
|
|
| |
VOE4822836
|
[0001] |
Cable harness
|
|
| |
VOE4822395
|
[0001] |
Cable harness
|
|
| 14. |
VOE4822835
|
[0001] |
Cable harness
|
SER NO - 59471
|
| |
VOE4736676
|
[0001] |
Cable harness
|
SER NO 59472 -
|
| |
VOE11104606
|
[0001] |
Retaining strap
|
SE GR 93
|
| 2. |
VOE953486
|
[0003] |
Stud
|
|
| 15. |
VOE4822839
|
[0001] |
Cable harness
|
SER NO - 59471
|
| |
VOE4861960
|
[0001] |
Cable harness
|
SER NO 59472 -
|
| 16. |
VOE4736523
|
[0001] |
Cable harness
|
H SER NO 59472 -
|
| 17. |
VOE4736524
|
[0001] |
Cable harness
|
V SER NO 59472 -
|
| 3. |
VOE13942336
|
[0003] |
Spring washer
|
|
| 4. |
VOE13955827
|
[0003] |
Nut
|
|
