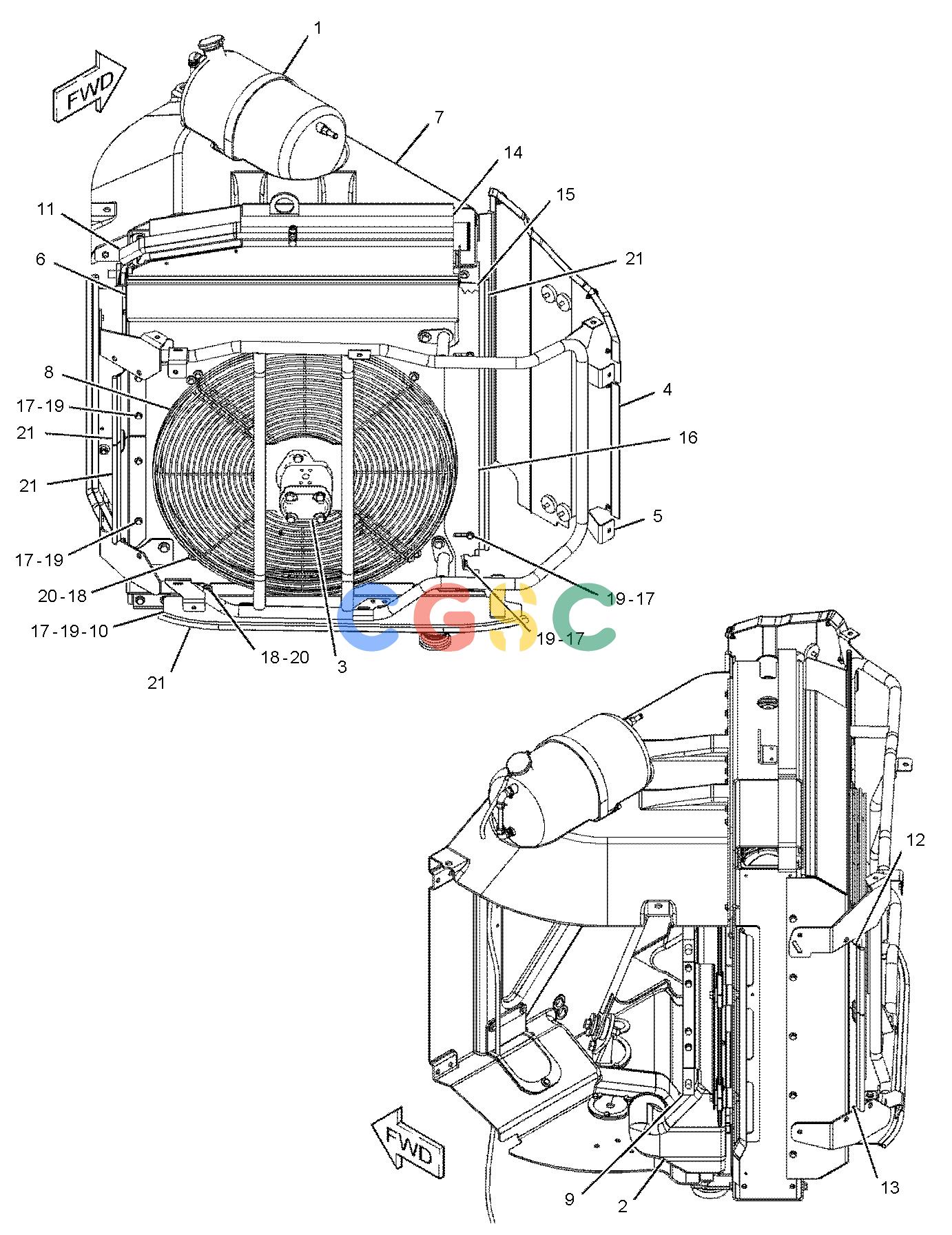

卡特零件查询（725） 244-5813: RADIATOR AR
广数供应链运营团队, 14 02月, 2025，浏览：
329 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 139-5320Y | [1] | TANK GP-COOLANT | |
| 2. | 226-8631Y | [1] | AFTERCOOLER GP-AIR | |
| 3. | 234-5595Y | [1] | MOTOR & MTG GP-HYDRAULIC FAN | |
| 4. | 236-5750Y | [1] | BAFFLE GP-RADIATOR | |
| 5. | 244-0823Y | [1] | FAN GP-SUCTION | |
| 6. | 244-5812Y | [1] | RADIATOR GP | |
| 7. | 244-5814Y | [1] | SHROUD GP-RADIATOR | |
| 8. | 245-2641 | [2] | GUARD AS-FAN | |
| 9. | 250-4192Y | [1] | CONDENSER & MTG GP-REFRIGERANT | |
| 10. | 250-6701 | [1] | PLATE AS | |
| 11. | 252-9400 | [1] | STRIP-FOAM | |
| 12. | 254-0504 | [1] | PLATE | |
| 13. | 254-0505 | [1] | PLATE | |
| 14. | 254-0509 | [1] | STRIP-FOAM | |
| 15. | 262-5735C | [1] | PLATE | |
| 16. | 262-5736C | [1] | PLATE | |
| 17. | 5P-4116C | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 18. | 7X-0613C | [8] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 19. | 8T-4189CM | [10] | BOLT(M8X1.25X20-MM) | |
| 20. | 8T-4908CM | [8] | BOLT(M8X1.25X25-MM) | |
| 21. | 201-4066D | | SEAL(2.7-M) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
