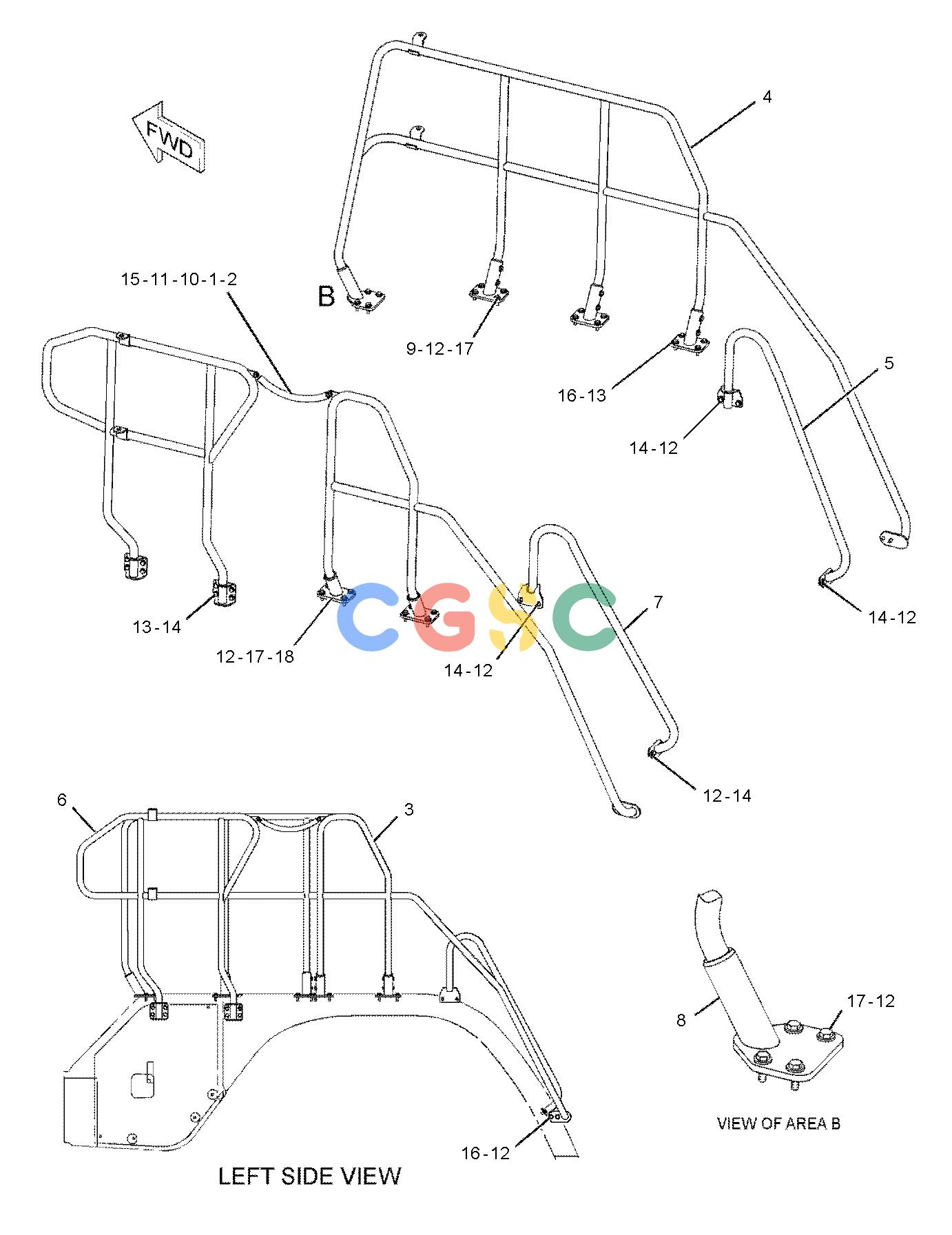

卡特零件查询（725） 242-6979: GUARD GP-PLATFORM
广数供应链运营团队, 14 02月, 2025，浏览：
135 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7I-5783 | [1] | CHAIN | |
| 2. | 5P-0765E | | HOSE(33-CM) | |
| 3. | 242-6974 | [1] | GUARD AS(REAR, LH) | |
| 4. | 242-6975 | [1] | GUARD AS(RH) | |
| 5. | 242-6976 | [1] | HANDRAIL AS(RH) | |
| 6. | 242-6977 | [1] | GUARD AS(FRONT, LH) | |
| 7. | 242-6978 | [1] | HANDRAIL AS(LH) | |
| 8. | 249-0084 | [1] | BRACKET AS | |
| 9. | 249-0085C | [4] | BRACKET AS | |
| 10. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 11. | 6V-7743M | [2] | LOCKNUT(M6X1-THD) | |
| 12. | 7X-7729C | [34] | WASHER(11X25X3-MM THK) | |
| 13. | 8T-4121 | [20] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4136CM | [12] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 16. | 8T-4195M | [16] | BOLT(M10X1.5X30-MM) | |
| 17. | 8T-4196CM | [22] | BOLT(M10X1.5X35-MM) | |
| 18. | 253-5668C | [1] | BRACKET AS | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
