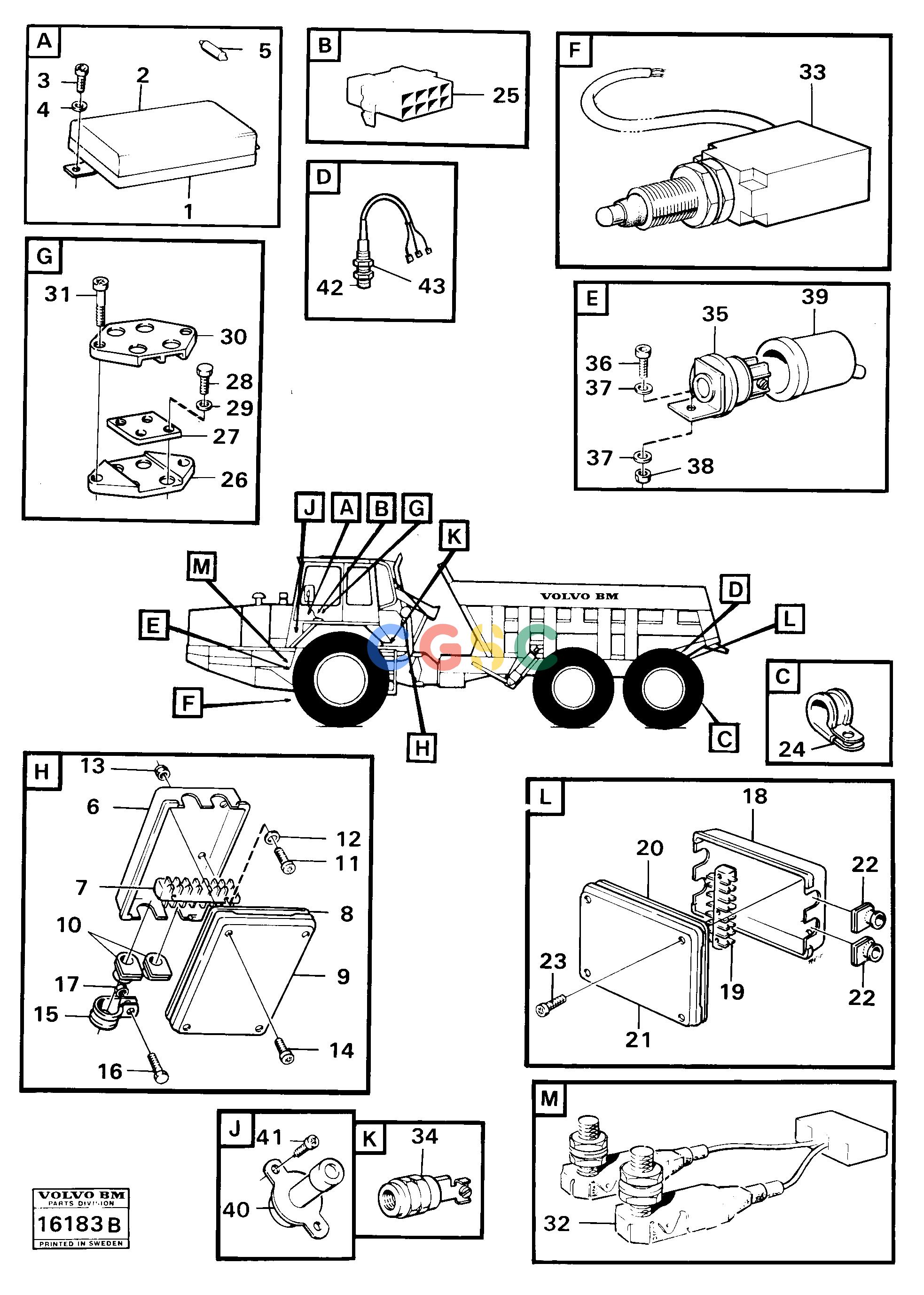

沃尔沃零件查询861 Electric components861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
270 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE7011433
|
[0018] |
Fuse
|
8 AMP
|
| 40. |
VOE1502073
|
[0001] |
Contact
|
|
| 41. |
VOE958236
|
[0002] |
Cross recessed screw
|
|
| 42. |
VOE11039223
|
[0001] |
Induction sensor
|
TIPP/DUMPING
|
| 43. |
VOE955901
|
[0002] |
Plain washer
|
|
| 6. |
VOE4737240
|
[0001] |
Clutch housing
|
TRAKTOR/TRACTOR
|
| 7. |
VOE4821415
|
[0001] |
Appliance box
|
|
| 8. |
VOE356196
|
[0001] |
Seal
|
|
| 9. |
VOE1575675
|
[0001] |
Cap
|
|
| 1. |
VOE944142
|
[0002] |
Fuse holder
|
|
| 10. |
VOE355876
|
[0002] |
Bushing
|
|
| 11. |
VOE955245
|
[0002] |
Hexagon screw
|
|
| 12. |
VOE13940090
|
[0002] |
Washer
|
|
| 13. |
VOE13963104
|
[0002] |
Lock nut
|
|
| 14. |
VOE1575676
|
[0004] |
Lock screw
|
|
| 15. |
VOE952627
|
[0001] |
Clamp
|
|
| 16. |
VOE946934
|
[0001] |
Flange screw
|
|
| 17. |
VOE13949278
|
[0001] |
Flange lock nut
|
|
| 18. |
VOE4737241
|
[0001] |
Clutch housing
|
VAGN/TRAILER
|
| 19. |
VOE4821415
|
[0001] |
Appliance box
|
|
| 2. |
VOE688413
|
[0002] |
Cap
|
|
| 20. |
VOE356196
|
[0001] |
Seal
|
|
| 21. |
VOE1575675
|
[0001] |
Cap
|
|
| 22. |
VOE355877
|
[0002] |
Bushing
|
|
| 23. |
VOE1575676
|
[0004] |
Lock screw
|
|
| 24. |
VOE952623
|
[REQ] |
Clamp
|
D=6,4
|
| |
VOE952625
|
[REQ] |
Clamp
|
D=9,5
|
| |
VOE952627
|
[REQ] |
Clamp
|
D=12,7
|
| |
VOE952628
|
[REQ] |
Clamp
|
D=14,3
|
| |
VOE952629
|
[REQ] |
Clamp
|
D=15,9
|
| |
VOE952633
|
[REQ] |
Clamp
|
D=19
|
| 3. |
VOE956064
|
[0003] |
Cross recessed screw
|
|
| |
VOE952635
|
[REQ] |
Clamp
|
D=25,4
|
| 25. |
VOE944077
|
[5] |
Tab housing
|
8-POLIG/8-WAY
|
| |
VOE4785098
|
[3] |
Housing
|
6-POLIG/6-WAY
|
| 26. |
VOE347714
|
[1] |
Base plate
|
|
| 27. |
VOE347715
|
[1] |
Plate
|
|
| 28. |
VOE956090
|
[4] |
Cross recessed screw
|
|
| 29. |
VOE955892
|
[4] |
Plain washer
|
|
| 30. |
VOE347716
|
[1] |
Cover
|
|
| 31. |
VOE956081
|
[2] |
Cross recessed screw
|
|
| 32. |
|
|
Microswitch
|
|
| 4. |
VOE955891
|
[0003] |
Plain washer
|
|
| |
VOE11716748
|
[3] |
Limiter
|
LOCK-UP
|
| 33. |
|
|
Microswitch
|
|
| |
VOE11716748
|
[2] |
Limiter
|
HÖG-LÄG/HIGH-LOW
|
| |
|
|
None
|
|
| 34. |
VOE3092454
|
[1] |
Contact
|
|
| 35. |
VOE7233623
|
[1] |
Switch
|
|
| 36. |
VOE60113646
|
[0001] |
Cross recessed screw
|
|
| 37. |
VOE955891
|
[0002] |
Plain washer
|
|
| 38. |
VOE955778
|
[0001] |
Hexagon nut
|
|
| 39. |
VOE243002
|
[0001] |
Bellows
|
|
