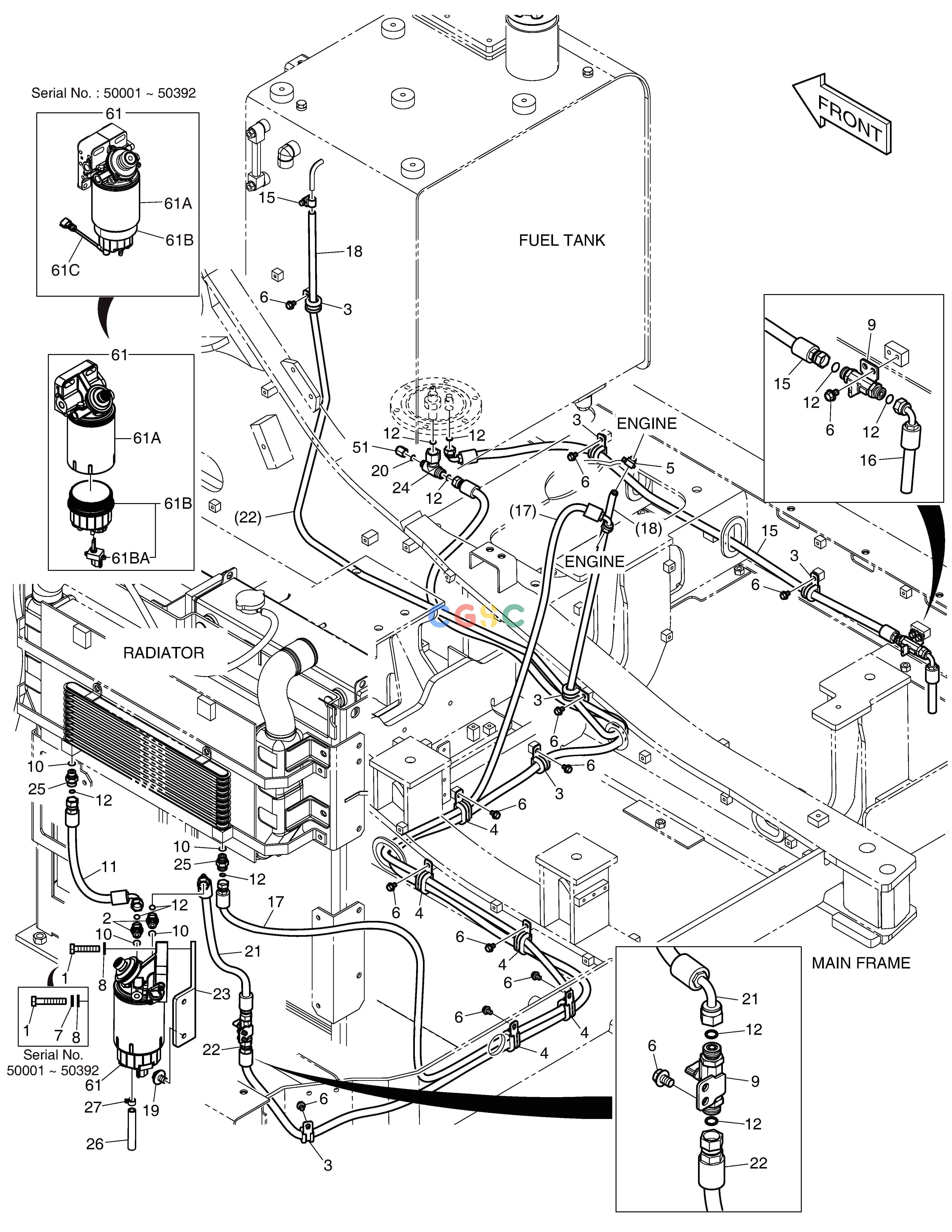

斗山零件查询FUEL PIPING DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
455 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-03542
|
[-] |
|
|
| 1. |
S0561066
|
[2] |
BOLT
|
|
| 1. |
S0560666
|
[2] |
BOLT
|
|
| 10. |
S8000141
|
[4] |
O-RING
|
|
| 11. |
DS2114021
|
[1] |
|
|
| 12. |
S8030061
|
[12] |
O-RING
|
|
| 15. |
DS2114027
|
[1] |
|
|
| 16. |
DS2116001
|
[1] |
HOSE
|
|
| 17. |
DS2114054
|
[1] |
|
|
| 18. |
DS2105098
|
[1] |
HOSE;FUEL
|
|
| 19. |
DS0025015
|
[2] |
BOLT
|
|
| 2. |
DS2508001
|
[2] |
|
|
| 20. |
S8030041
|
[1] |
O-RING
|
|
| 21. |
DS2114041
|
[1] |
|
|
| 22. |
DS2115020
|
[1] |
|
|
| 23. |
250201-01040
|
[1] |
|
|
| 24. |
DS2417010
|
[1] |
|
|
| 25. |
DS2232038
|
[2] |
ADAPTER
|
|
| 26. |
DS2105131
|
[1] |
|
|
| 27. |
DS2807008
|
[1] |
|
|
| 3. |
124-00208D3
|
[6] |
CLIP
|
|
| 4. |
124-00209D1
|
[5] |
CLIP
|
|
| 5. |
S8470014
|
[2] |
CLAMP
|
|
| 51. |
DS2916007
|
[1] |
|
|
| 6. |
K1001029
|
[18] |
BOLT
|
|
| 61. |
K1044605
|
[1] |
PRE FUEL FILTER ASS'Y
|
|
| 61. |
400403-00195
|
[1] |
|
|
| 61A. |
K1006530
|
[1] |
FILTER;PRE FUEL
|
|
| 61A. |
400508-00084
|
[1] |
. CARTRIDGE ASSY,FILTER
|
|
| 61B. |
K1046352
|
[1] |
BOWL;WATER
|
|
| 61B. |
110964-00022
|
[1] |
. BOWL
|
|
| 61BA. |
301308-00562
|
[1] |
.. SENSOR,LEVEL
|
|
| 61C. |
K1046350
|
[1] |
. SENSOR;WATER
|
|
| 7. |
S5102703
|
[2] |
WASHER
|
|
| 8. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 9. |
410202-00011A
|
[2] |
COCK,VALVE
|
|
