斗山零件查询FUEL TANK DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
343 次

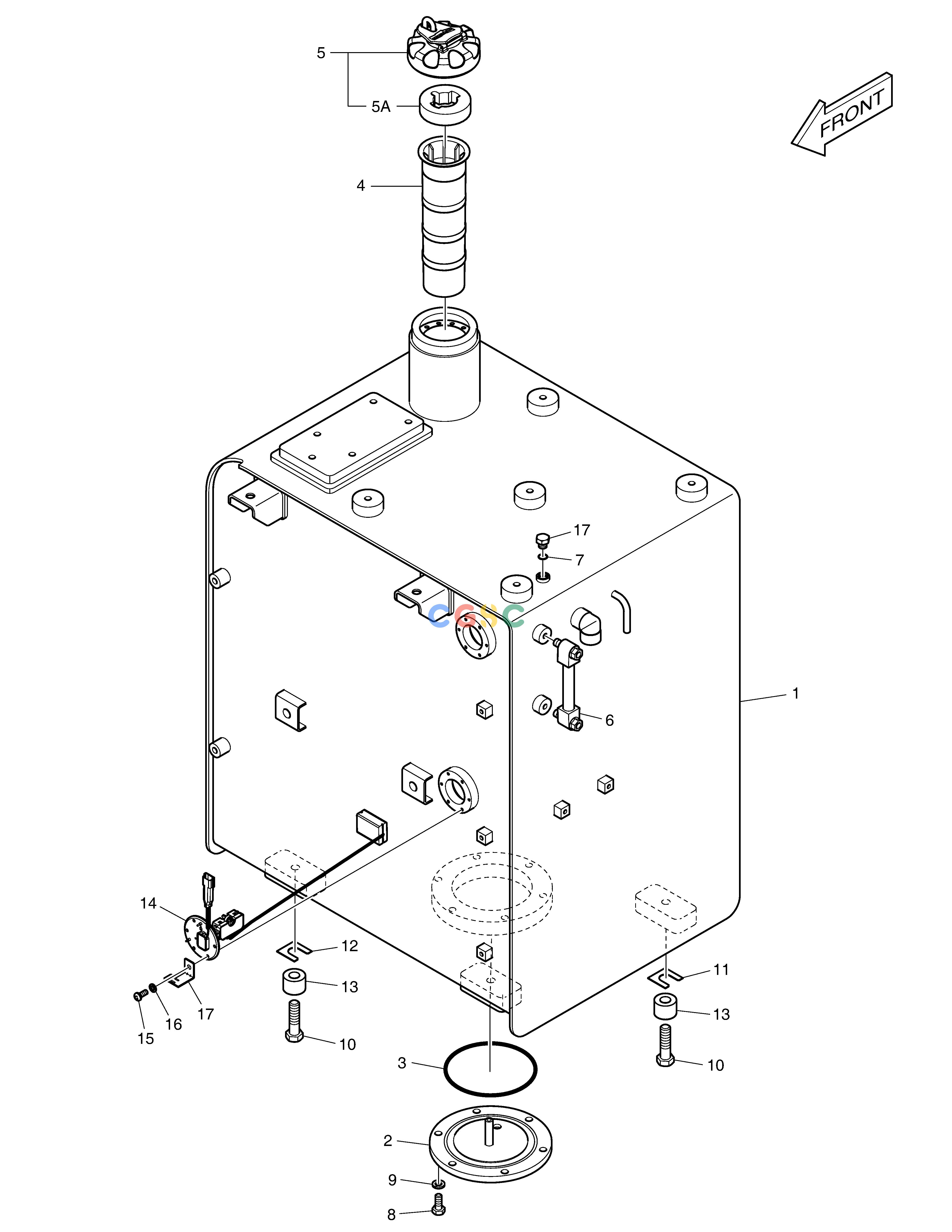

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
450103-00165
|
[-] |
|
|
| 1. |
450103-00166B
|
[1] |
|
|
| 10. |
S0565466
|
[4] |
BOLT
|
|
| 11. |
2114-1813
|
[2] |
SHIM,0.8T
|
|
| 12. |
2114-1814
|
[2] |
SHIM,1.6T
|
|
| 13. |
114-00425
|
[4] |
SPACER
|
|
| 14. |
301316-00004A
|
[1] |
|
|
| 15. |
S3450833
|
[6] |
BOLT
|
|
| 16. |
S5100203
|
[6] |
WASHER
|
|
| 17. |
2181-1950D1
|
[2] |
PLUG
|
|
| 2. |
110508-00023B
|
[1] |
|
|
| 3. |
S8011450
|
[1] |
O-RING
|
|
| 4. |
471-00105A
|
[1] |
FILTER,FUEL STRAINER
|
|
| 5. |
110911-00126
|
[1] |
|
|
| 5A. |
400504-00045
|
[1] |
. ELEMENT,FUEL CAP
|
|
| 6. |
K1057054
|
[1] |
GAUGE,LEVEL
|
|
| 7. |
S8000111
|
[2] |
O-RING
|
|
| 8. |
S0512066
|
[6] |
. BOLT
|
|
| 9. |
S5102603
|
[6] |
. WASHER
|
|
