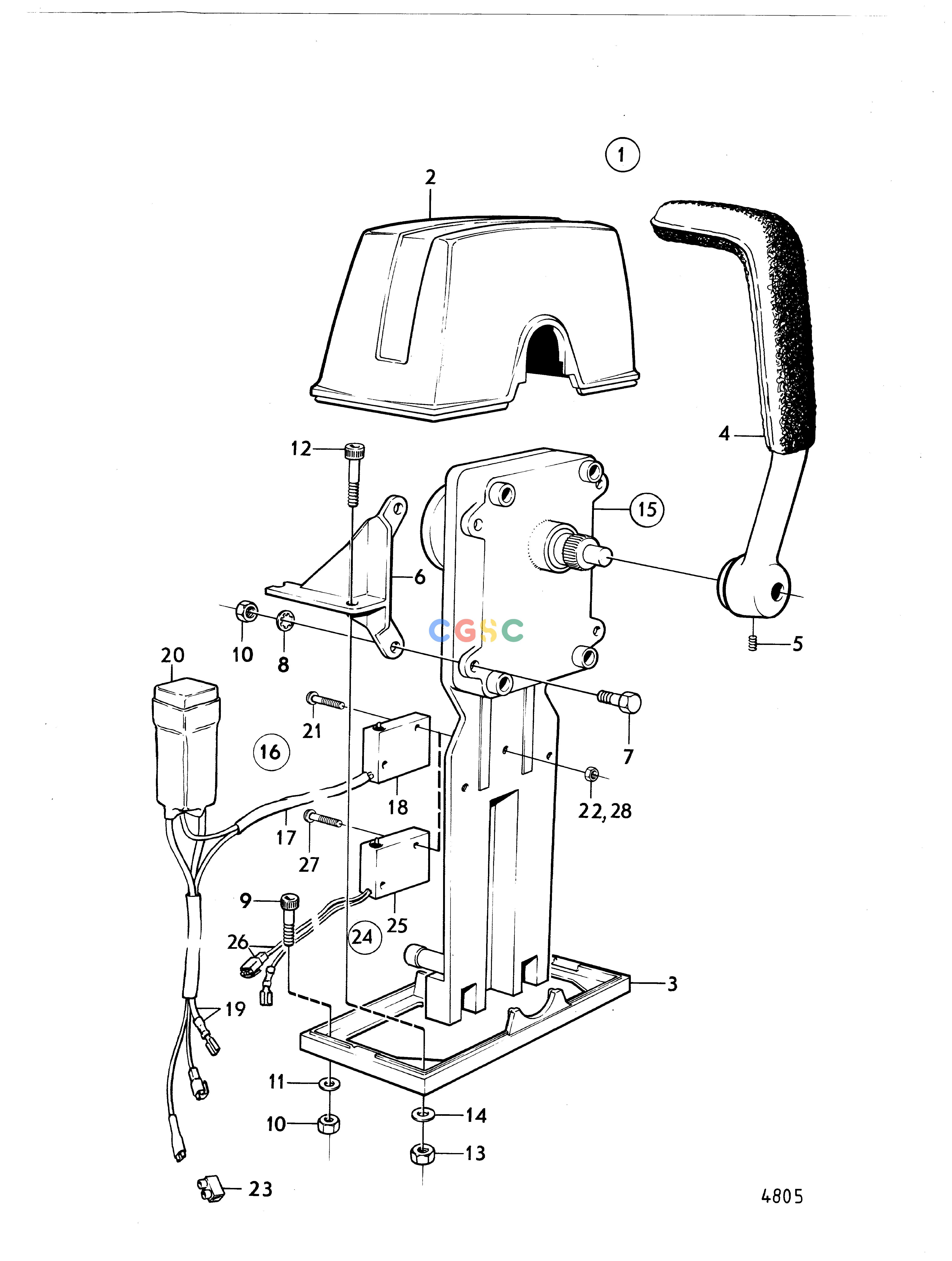

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Miscellaneous EquipmentControl for top Installation: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
147 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
839471
|
[1] |
Mounting kit
|
Repl by 851603
|
| 2. |
839477
|
[1] |
Cover
|
|
| 3. |
839479
|
[1] |
Plate
|
|
| 4. |
839475
|
[2] |
Hand lever
|
|
| 5. |
946786
|
[2] |
Set screw
|
M5
|
| 5. |
839693
|
[2] |
Lock screw
|
M8
|
| 6. |
839480
|
[2] |
Bracket
|
Marked 839480
|
| 6. |
839481
|
[2] |
Bracket
|
Marked 839481
|
| 7. |
955244
|
[8] |
Hexagon screw
|
|
| 8. |
955946
|
[8] |
Toothed washer
|
|
| 9. |
947671
|
[2] |
Hex. socket screw
|
|
| 10. |
955780
|
[10] |
Hexagon nut
|
|
| 11. |
960138
|
[2] |
Washer
|
|
| 12. |
947672
|
[4] |
Hex. socket screw
|
|
| 13. |
955781
|
[4] |
Hexagon nut
|
|
| 14. |
960139
|
[4] |
Washer
|
|
| 15. |
839469
|
[2] |
Control
|
Top-mounted replaced by 851600., Side-mounted replaced by 851601.
|
| 16. |
839641
|
[2] |
Neutral position con
|
Main station.
|
| 17. |
839619
|
[2] |
Cable kit
|
|
| 18. |
850200
|
[2] |
Toggle switch
|
|
| 19. |
|
|
|
See group 3
|
| 20. |
876037
|
[2] |
Relay kit
|
(839367)
|
| 21. |
946177
|
[4] |
Cross recessed screw
|
|
| 22. |
947536
|
[4] |
Hexagon nut
|
|
| 23. |
|
|
|
|
| 24. |
828414
|
[2] |
Neutral position con
|
Main station.
|
| 24. |
828378
|
[2] |
Contact
|
Second station.
|
| 25. |
850200
|
[2] |
Toggle switch
|
|
| 26. |
|
|
|
See group 3
|
| 27. |
946177
|
[4] |
Cross recessed screw
|
|
| 28. |
947536
|
[4] |
Hexagon nut
|
|
