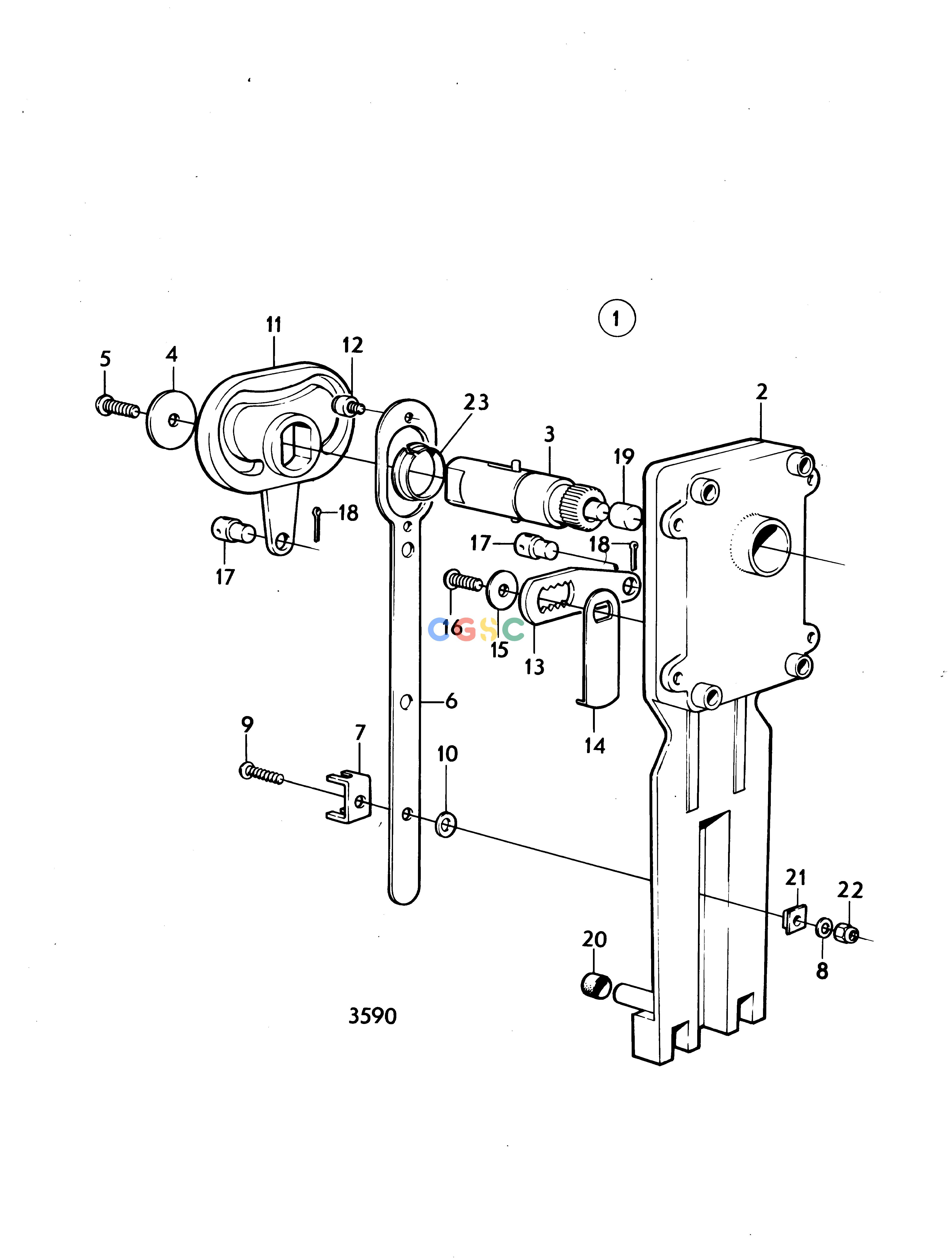

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Miscellaneous EquipmentControl MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
735 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
839469
|
[1] |
Control
|
Top-mounted replaced by 851600., Side-mounted replaced by 851601.
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
839635
|
[1] |
Washer
|
|
| 5. |
839637
|
[1] |
Screw
|
|
| 6. |
839668
|
[1] |
Link arm
|
|
| 7. |
839700
|
[1] |
Retainer
|
|
| 8. |
839667
|
[1] |
Washer
|
|
| 9. |
839664
|
[1] |
Screw
|
|
| 10. |
|
|
|
|
| 11. |
839636
|
[1] |
Eccentric
|
|
| 12. |
851713
|
[1] |
Spare parts kit
|
(839699)
|
| 13. |
839633
|
[1] |
Engagement lever
|
|
| 14. |
839639
|
[1] |
Breaker arm
|
|
| 15. |
839635
|
[1] |
Washer
|
|
| 16. |
839637
|
[1] |
Screw
|
|
| 17. |
839638
|
[2] |
Cube
|
|
| 18. |
17253
|
[2] |
Split pin
|
|
| 19. |
839632
|
[1] |
Button
|
|
| 20. |
839640
|
[1] |
Vibration damper
|
|
| 21. |
839666
|
[1] |
Washer
|
|
| 22. |
963104
|
[1] |
Lock nut
|
|
| 23. |
839701
|
[1] |
Bushing
|
|
