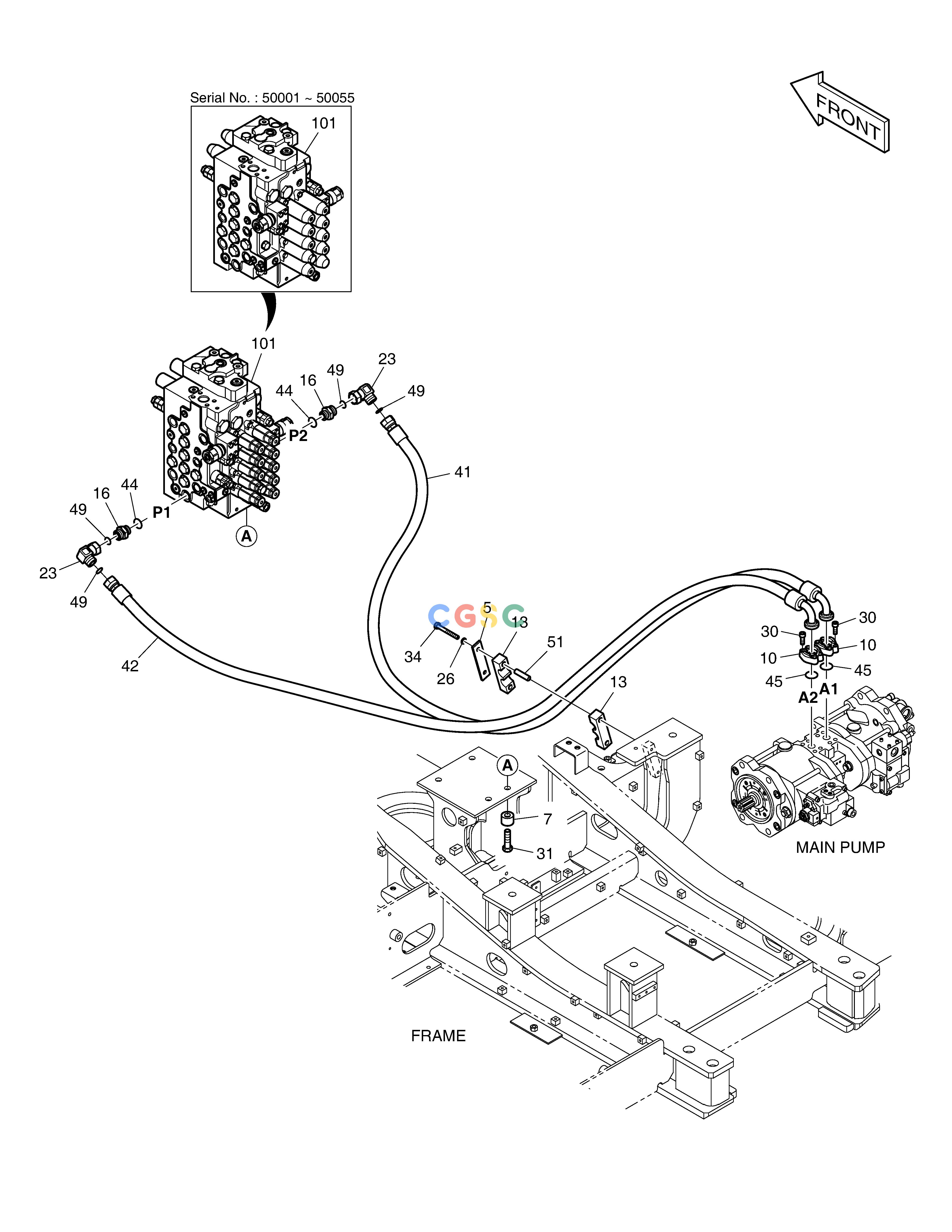

斗山零件查询MAIN PIPING(1) - PUMP DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
761 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05671
|
[-] |
|
|
| 10. |
2181-9080
|
[4] |
FLANGE
|
|
| 101. |
410105-00333B
|
[1] |
|
|
| 101. |
410105-00333A
|
[1] |
|
410105-00333B
|
| 13. |
120202-00073
|
[2] |
CLAMP,HOSE
|
|
| 16. |
2181-4133D5
|
[2] |
. ADAPTER
|
|
| 23. |
DS2291014
|
[2] |
ELBOW
|
|
| 26. |
S5102603
|
[2] |
. WASHER
|
|
| 30. |
S2212266
|
[8] |
BOLT
|
|
| 31. |
S0565466
|
[4] |
BOLT
|
|
| 34. |
S0559266
|
[2] |
BOLT
|
|
| 41. |
DS2018348
|
[1] |
|
|
| 42. |
DS2018349
|
[1] |
|
|
| 44. |
S8000241
|
[2] |
O-RING
|
|
| 45. |
2180-1026D2
|
[2] |
O-RING
|
|
| 49. |
S8030121
|
[4] |
O-RING
|
|
| 5. |
DS7725043
|
[1] |
SHIM
|
|
| 51. |
K1002091
|
[2] |
SPACER
|
|
| 7. |
114-00425
|
[4] |
SPACER
|
|
