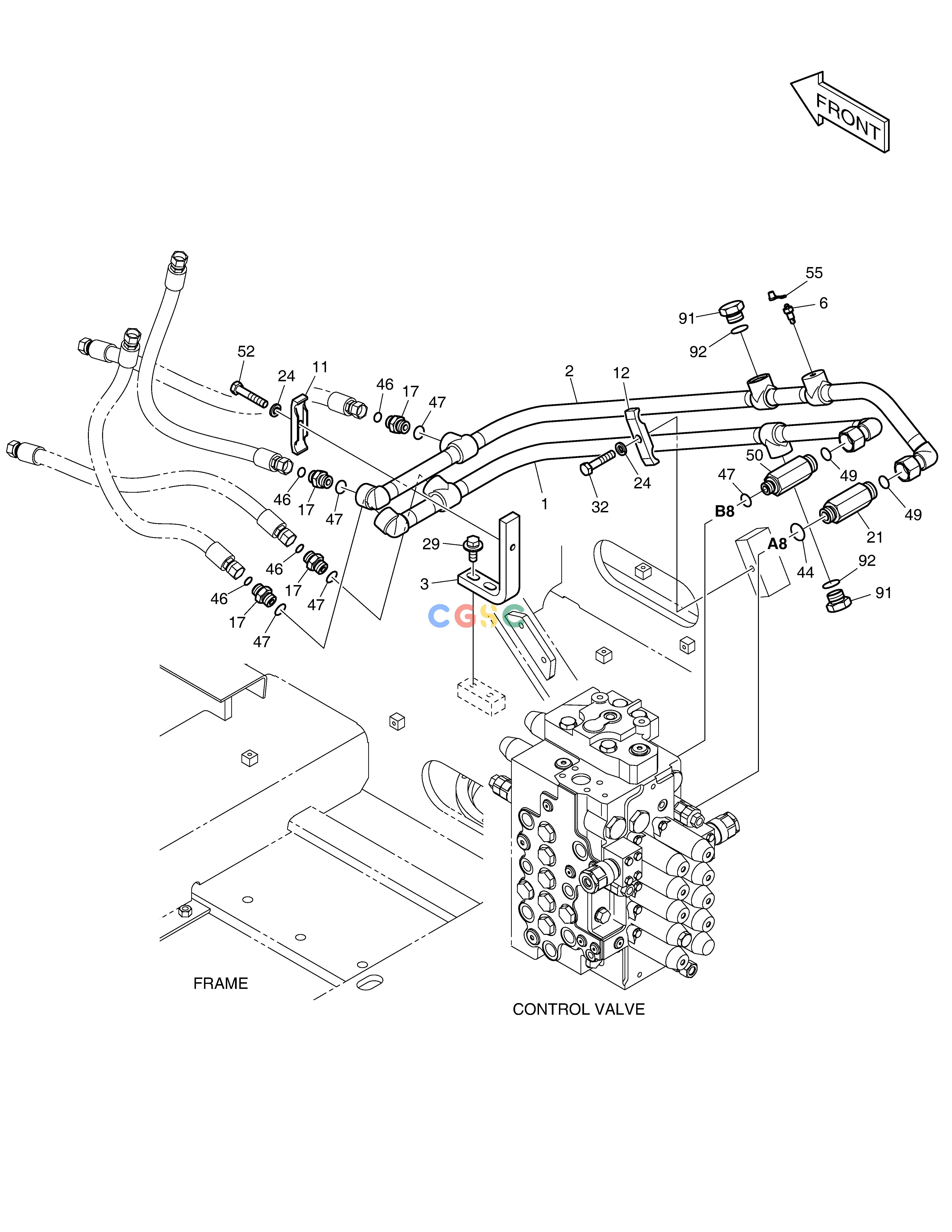

斗山零件查询MAIN PIPING(2) - BOOM DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
775 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05671
|
[-] |
|
|
| 1. |
420207-00828B
|
[1] |
|
|
| 11. |
2124-1025D6
|
[1] |
CLAMP
|
|
| 12. |
2124-1025D8
|
[1] |
CLAMP;PIPE
|
|
| 17. |
2181-4133D3
|
[4] |
ADAPTER
|
|
| 2. |
420207-00829C
|
[1] |
|
|
| 21. |
DS2232124
|
[1] |
ADAPTER
|
|
| 24. |
S5102703
|
[2] |
WASHER
|
|
| 29. |
DS0025020
|
[2] |
BOLT
|
|
| 3. |
2195-3657
|
[1] |
BRACKET
|
|
| 32. |
S0560966
|
[1] |
BOLT
|
|
| 44. |
S8000241
|
[1] |
O-RING
|
|
| 46. |
S8030081
|
[4] |
O-RING
|
|
| 47. |
S8000181
|
[5] |
O-RING
|
|
| 49. |
S8030121
|
[2] |
O-RING
|
|
| 50. |
DS2257004
|
[1] |
ADAPTER
|
|
| 52. |
S0561066
|
[1] |
BOLT
|
|
| 55. |
160-00020
|
[1] |
CAP
|
|
| 6. |
120705-00105
|
[1] |
|
|
| 91. |
2181-1950D15
|
[2] |
PLUG
|
|
| 92. |
S8000231
|
[2] |
O-RING
|
|
