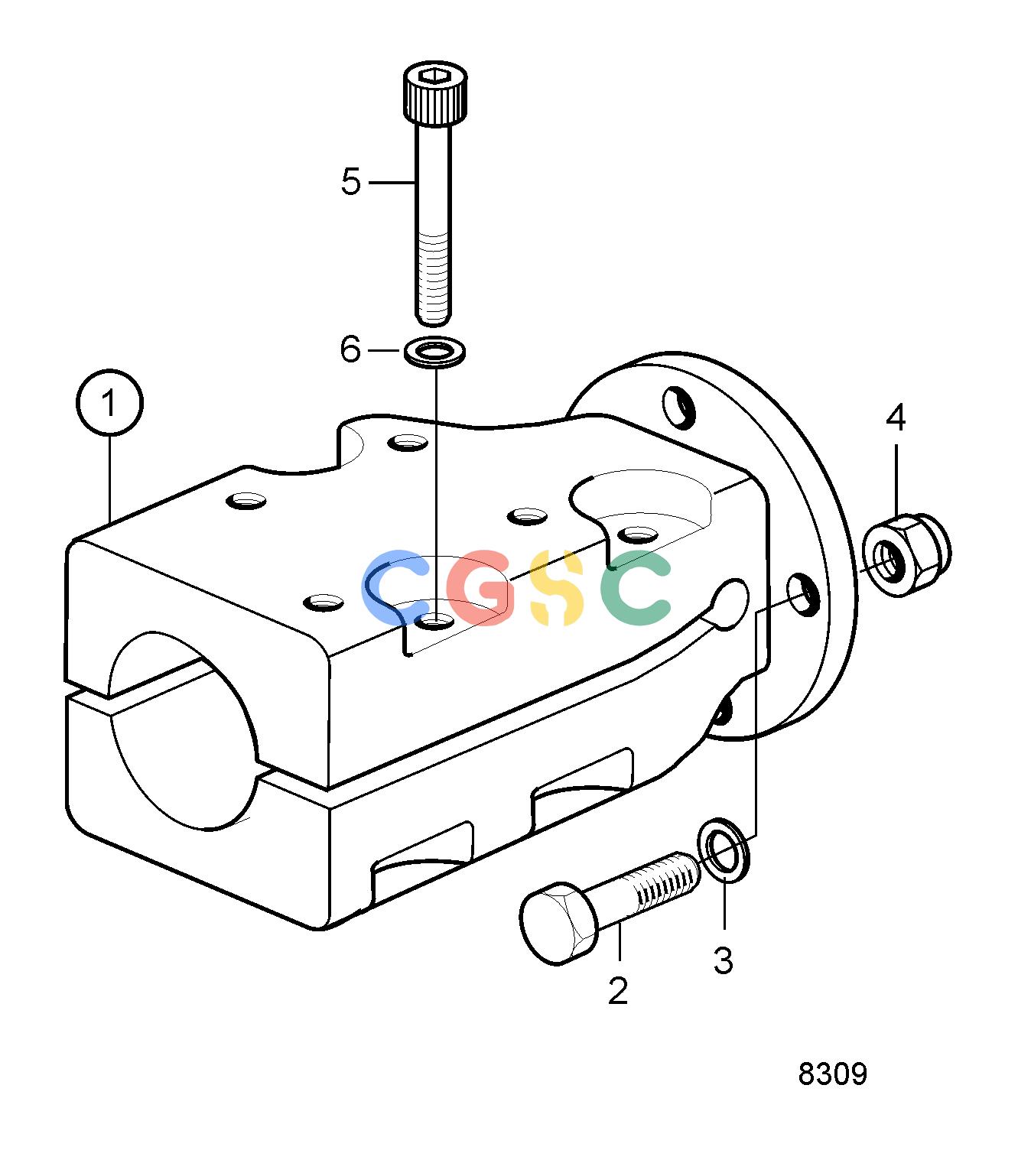

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 828606 | [1] | Clamping flange | 35mm hole for propeller shaft., For reverse gear MS2 |
| 2. | 965185 | [4] | Flange screw | |
| 3. | 976945 | [4] | Washer | |
| 4. | 971089 | [4] | Lock nut | |
| 5. | 966789 | [6] | Hex. socket screw | |
| 6. | 947345 | [6] | Washer |
广数供应链运营团队, 14 02月, 2025，浏览： 178 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 828606 | [1] | Clamping flange | 35mm hole for propeller shaft., For reverse gear MS2 |
| 2. | 965185 | [4] | Flange screw | |
| 3. | 976945 | [4] | Washer | |
| 4. | 971089 | [4] | Lock nut | |
| 5. | 966789 | [6] | Hex. socket screw | |
| 6. | 947345 | [6] | Washer |
