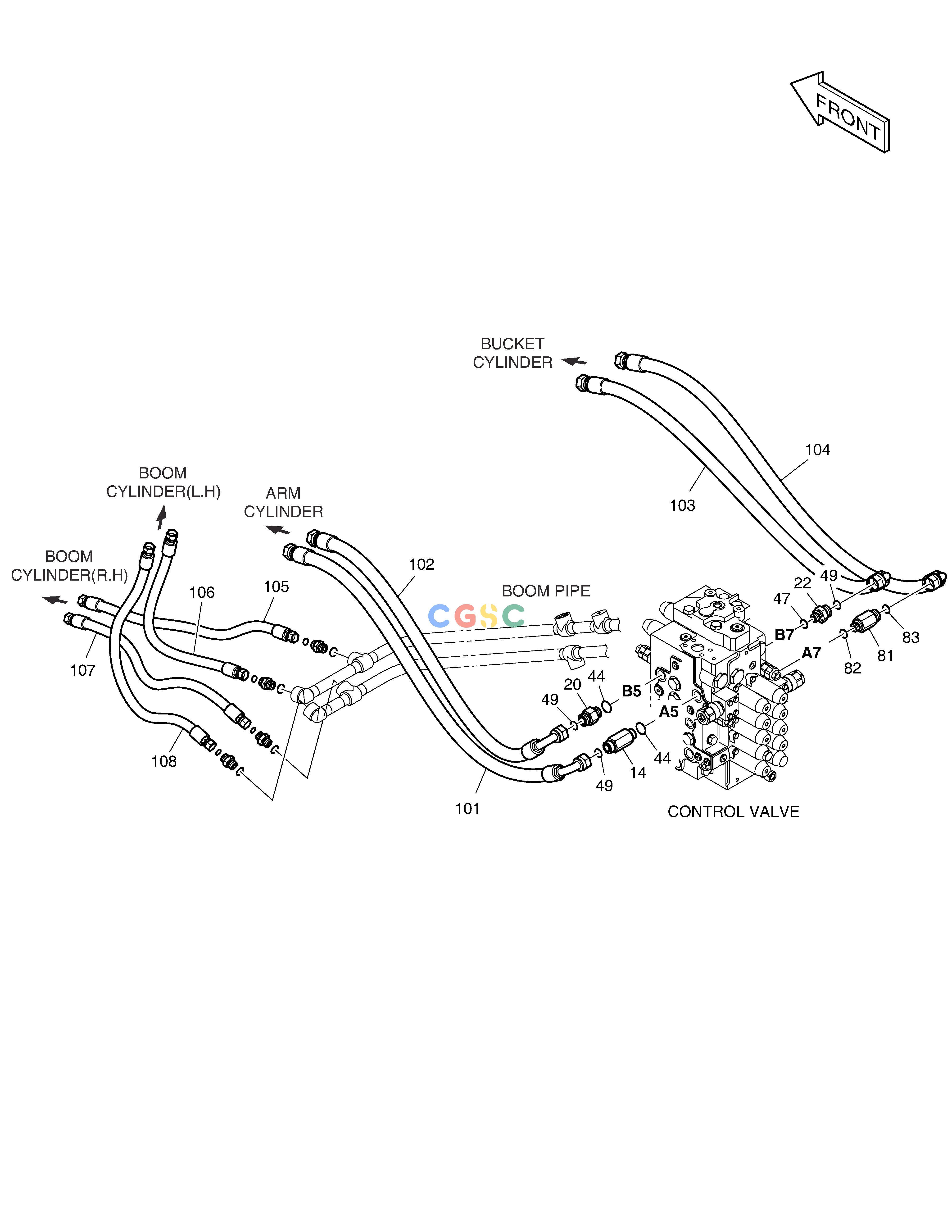

斗山零件查询MAIN PIPING(4) - ARM & BUCKET DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
837 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05671
|
[-] |
|
|
| 101. |
DS20131912
|
[1] |
|
|
| 102. |
DS20131936
|
[1] |
|
|
| 103. |
DS20131937
|
[1] |
|
|
| 104. |
DS20131938
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 105. |
DS20111208
|
[1] |
|
|
| 106. |
DS20111208
|
[1] |
|
|
| 107. |
DS20111208
|
[1] |
|
|
| 108. |
DS20111208
|
[1] |
|
|
| 14. |
2181-4133D34
|
[1] |
ADAPTER PFO3/4-UNF1 3/16-12
|
|
| 20. |
DS2232187
|
[1] |
ADAPTER
|
|
| 22. |
DS2257005
|
[1] |
ADAPTER
|
|
| 44. |
S8000241
|
[2] |
O-RING
|
|
| 47. |
S8000181
|
[1] |
O-RING
|
|
| 49. |
S8030121
|
[3] |
O-RING
|
|
| 81. |
DS2257003
|
[1] |
ADAPTER
|
|
| 82. |
S8000181
|
[1] |
O-RING
|
|
| 83. |
S8030121
|
[1] |
O-RING
|
|
