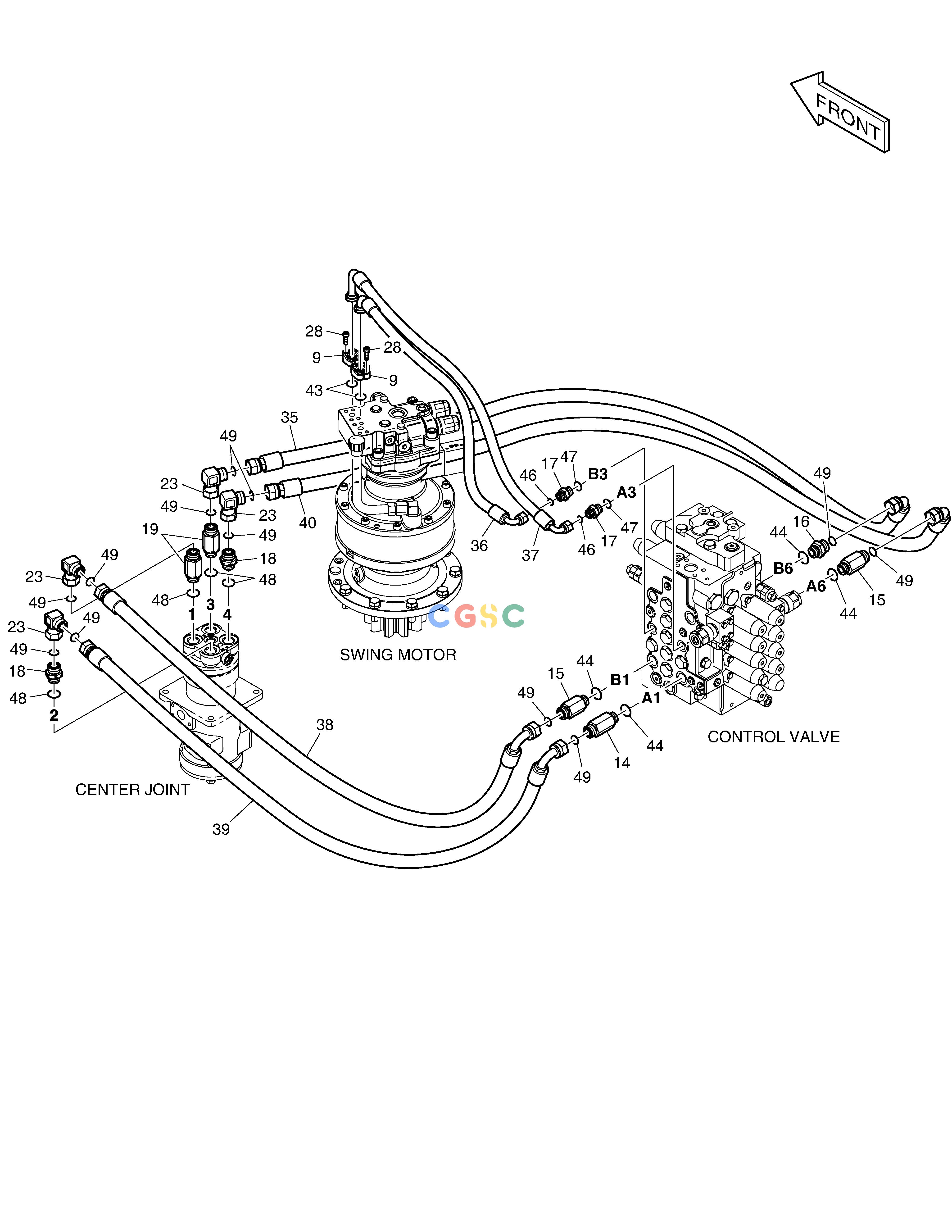

斗山零件查询MAIN PIPING(3) - SWING & TRAVEL DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
661 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05671
|
[-] |
|
|
| 14. |
2181-4133D34
|
[1] |
ADAPTER PFO3/4-UNF1 3/16-12
|
|
| 15. |
2181-4133D13
|
[2] |
ADAPTER
|
|
| 16. |
2181-4133D5
|
[1] |
. ADAPTER
|
|
| 17. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 18. |
2181-2627D1
|
[2] |
ADAPTER
|
|
| 19. |
2181-2627D3
|
[2] |
ADAPTER
|
|
| 23. |
DS2291014
|
[4] |
ELBOW
|
|
| 28. |
S2209066
|
[8] |
BOLT
|
|
| 35. |
DS2013139
|
[1] |
|
|
| 36. |
DS2026303
|
[1] |
|
|
| 37. |
DS2026304
|
[1] |
|
|
| 38. |
DS20131899
|
[1] |
|
|
| 39. |
DS20131864
|
[1] |
|
|
| 40. |
DS20131900
|
[1] |
|
|
| 43. |
2180-1026D30
|
[2] |
O-RING
|
|
| 44. |
S8000241
|
[4] |
O-RING
|
|
| 46. |
S8030081
|
[2] |
O-RING
|
|
| 47. |
S8000181
|
[2] |
O-RING
|
|
| 48. |
S8000231
|
[4] |
O-RING
|
|
| 49. |
S8030121
|
[12] |
O-RING
|
|
| 9. |
2181-9089
|
[4] |
FLANGE
|
|
