沃尔沃零件查询A20 Engine mountingVOLVO BM A20 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
383 次

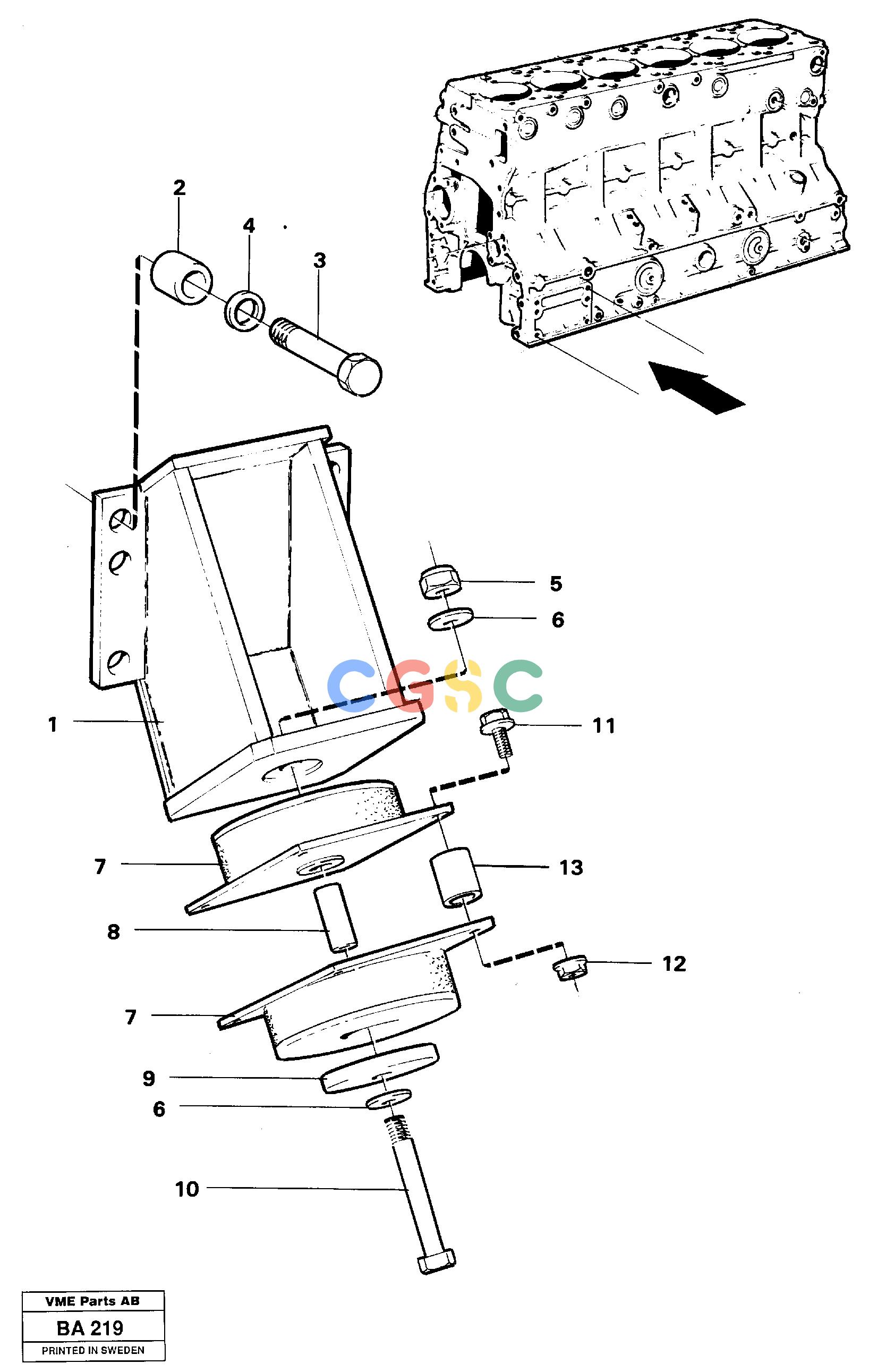

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE963110
|
[2] |
Lock nut
|
|
| 6. |
VOE13955900
|
[4] |
Washer
|
|
| 7. |
VOE4942493
|
[4] |
Rubber cushion
|
|
| 8. |
VOE4942568
|
[2] |
Spacer sleeve
|
|
| 9. |
VOE4737225
|
[2] |
Plate
|
|
| 1. |
VOE4966081
|
[2] |
Engine anchorage
|
|
| 10. |
VOE13955378
|
[2] |
Screw
|
|
| 11. |
VOE60113082
|
[8] |
Flange screw
|
SER NO - 1197
|
| |
VOE13965179
|
[8] |
Screw
|
SER NO 1198 -
|
| 12. |
VOE13945408
|
[8] |
Nut
|
|
| 13. |
VOE4941258
|
[8] |
Spacer sleeve
|
SER NO 1198 -
|
| 2. |
VOE60113600
|
[12] |
Spacer sleeve
|
|
| 3. |
VOE970980
|
[12] |
Hexagon screw
|
|
| 4. |
VOE13930908
|
[12] |
Washer
|
|
